EMS compact two-wire solid-state cylinder sensors: EMSG G-profile and EMSH H-profile. Confirm the magnetic cylinder, groove, 10–28V DC load and cable/connector before requesting a quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Choose a type; send a model or photo if unsure.
EMSG
G-profile two-wire solid-state
EMSH
H-profile two-wire solid-state
Send the model, quantity and destination. For multiple items, attach a parts list or BOM.
Match an EMS sensor code

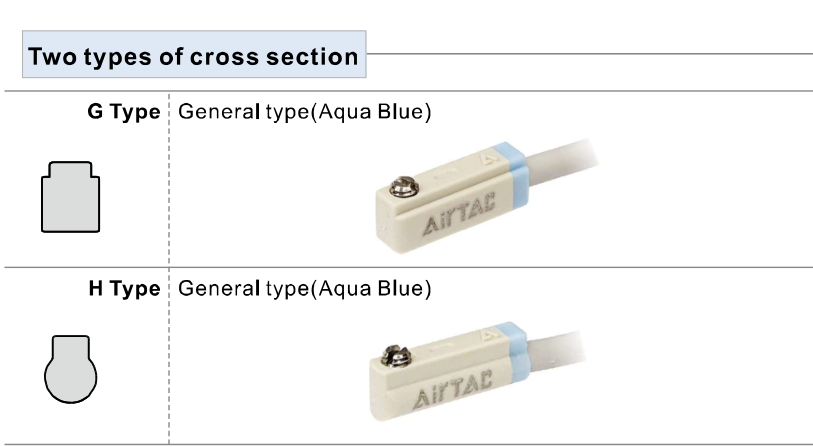

EMS official ems-g-h-profile.png; use only labelled EMS/shared applicable row
Helpful for Model Matching:

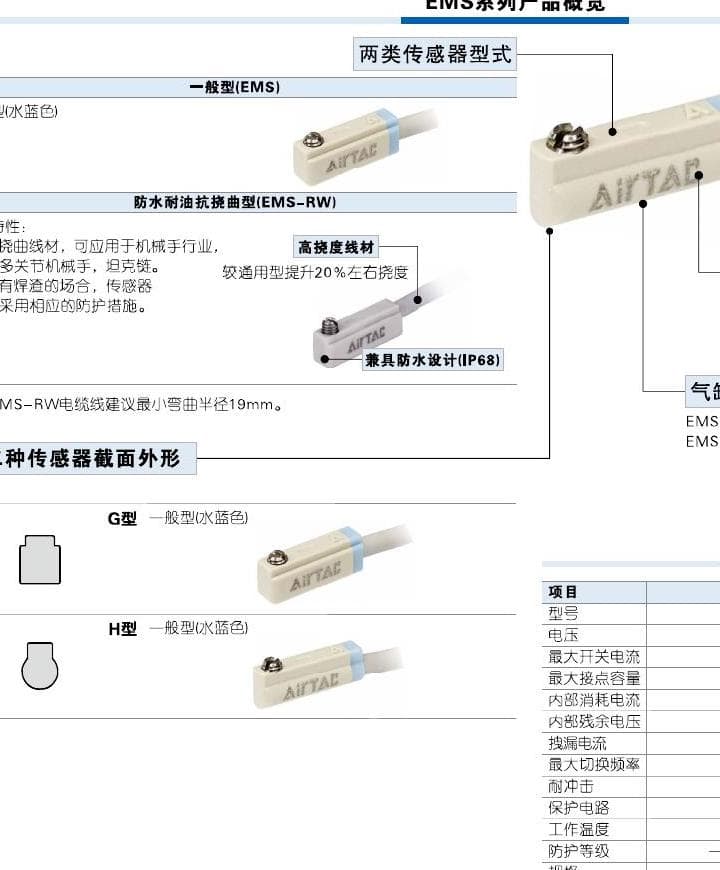

| Identity / output | EMS is a mini solid-state magnetic sensor with two-wire output only, not a reed sensor. EMSG is the G-profile mini counterpart to DMSG; EMSH is H-profile counterpart to DMSH. No EMS NPN/PNP (N/P), E or J profile is published; those belong to other families. Cylinder must have suitable magnetic piston. |
| Electrical supply / load | 10–28 V DC only; switching current 2.5–100 mA; contact capacity 2.8 W max; current consumption 3 mA max; internal voltage drop 3.5 V max; leakage 0.1 mA max. Match PLC input threshold and load at the actual supply; do not use DMS three-wire 5–30V/200mA values or CMS AC/DC values. Source does not explicitly state NO/NC: confirm required switching logic. |
| Environment / protection | −10 to +70°C; switching frequency 1000 Hz; impact 30G; reverse-polarity and surge protection. General IP64; RW waterproof/oil/flexure-resistant IP68. RW recommended minimum cable bending radius 19 mm. No high-temperature H suffix: H here means profile. Source CE marking/RoHS statement is not a supplied certificate. |
| Cable / connector ordering | Direct codes020=2m, 030=3m, 050=5m, 100=10m. M08/M12=0.5m lead with M8/M12 plug; M08010/M12010=1m, ...020=2m, ...030=3m. RW not available with any M8/M12 plug codes. M8/M12 mating sockets need separate order; F-EC M08/M12 B two-wire socket, 020/030/050/100 length. Socket accessory is not a sensor code. |
| Two-wire wiring / installation | Use external series load before power-on; brown positive, blue negative, confirm actual connector pinout. Two-wire socket drawing labels1 brown(+), 4 blue(−); third pin labelled Normal Close is not proof of EMS NC output. No-load wiring forbidden. Keep lead clear of cylinder movement; place sensor near middle of action scope; clamping torque 0.15–0.2Nm source. Check LED against actual cylinder motion. The DMS NPN/PNP black output-wire diagram does not apply to this two-wire sensor. |
| G-profile fit | EMSG shared G table lists SAU32/40/50/63/80/100, MCK, ACQ/TACQ, SDA, and multiple gripper/guide families with bore-specific cells. See exact matrix; not every bore in every family. Round PB/PBR/MI/MF/MG/MA/MAC and MBL/MCK additional mounting accessory required; SC/SGC additional accessory required. Accessory installation page369 explicitly labels DMSG/CMSG only: confirm EMSG bracket compatibility rather than copy installation guarantee. |
| H-profile fit / exclusions | EMSH shared H table lists ACQ125/140/160, TC6/10/16 and multiple gripper/guide families with bore-specific dots; source includes QDK20/25/32/40, HFKP16/20/25/32. Its note excludes CMSH/HFZ6/HFY6 and excludes CMSH/DMSH at HGS6/QDK20/25, not automatically EMSH. CMS/DMS compatibility notes do not establish EMS compatibility; confirm the exact sensor and cylinder combination. JSI/ACE and SAI/TSAI use E-profile CMSE/DMSE table, not EMS. SDA J sensors and TN are separate J-profile rows, not EMS. |
| Dimensions / stock / quotation | EMSG length15.5mm, G section4.4×5.3mm; EMSH length15.5mm, H section4×5.2mm per dedicated drawing. RW own G/H drawing. Cable and connector change installed clearance. G/H shape and length alone do not guarantee magnetic sensitivity or fit. Send existing sensor label, cylinder model/bore, slot photo, supply, PLC/load, quantity and destination for verification and quotation. |

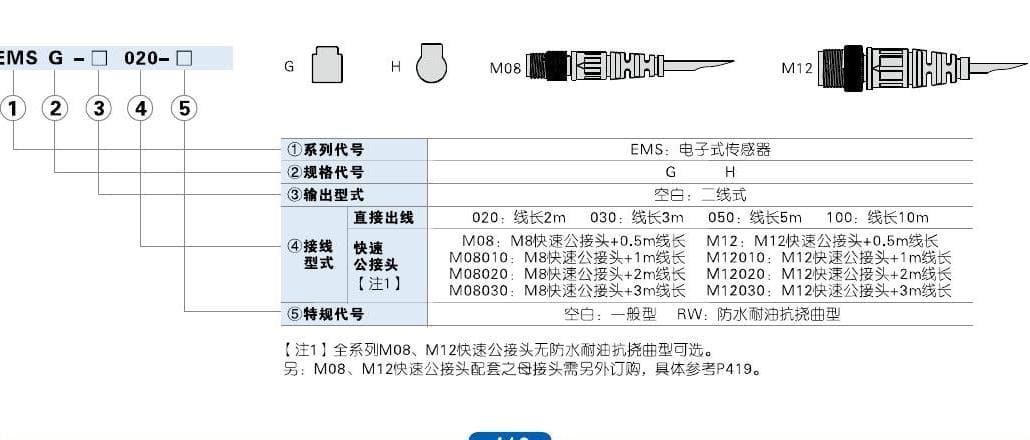

Ordering code matching
Code format
EMS[G/H]-[lead]-[RW optional]EMS output field blank: two-wire onlyEMSG-020-RWEMSH-M12020| ①Family / profile / output | ②Lead / RW |
|---|---|
| EMS is a mini solid-state magnetic sensor with two-wire output only, not a reed sensor. EMSG is the G-profile mini counterpart to DMSG; EMSH is H-profile counterpart to DMSH. No EMS NPN/PNP (N/P), E or J profile is published; those belong to other families. Cylinder must have suitable magnetic piston. | Direct codes020=2m, 030=3m, 050=5m, 100=10m. M08/M12=0.5m lead with M8/M12 plug; M08010/M12010=1m, ...020=2m, ...030=3m. RW not available with any M8/M12 plug codes. M8/M12 mating sockets need separate order; F-EC M08/M12 B two-wire socket, 020/030/050/100 length. Socket accessory is not a sensor code. |
If the label is incomplete, send the readable parts together with a photo.
EMSG-020-RW①Family / profile / output
EMS is a mini solid-state magnetic sensor with two-wire output only, not a reed sensor. EMSG is the G-profile mini counterpart to DMSG; EMSH is H-profile counterpart to DMSH. No EMS NPN/PNP (N/P), E or J profile is published; those belong to other families. Cylinder must have suitable magnetic piston.
②Lead / RW
Direct codes020=2m, 030=3m, 050=5m, 100=10m. M08/M12=0.5m lead with M8/M12 plug; M08010/M12010=1m, ...020=2m, ...030=3m. RW not available with any M8/M12 plug codes. M8/M12 mating sockets need separate order; F-EC M08/M12 B two-wire socket, 020/030/050/100 length. Socket accessory is not a sensor code.
EMS compact two-wire solid-state cylinder sensors: EMSG G-profile and EMSH H-profile. Confirm the magnetic cylinder, groove, 10–28V DC load and cable/connector before requesting a quotation.
No N/P field is published for EMS. EMS is two-wire solid-state; DMS has separate NPN/PNP options. Confirm PLC/load and original model.
No. H is the EMSH profile. Standard −10 to +70°C applies; CMS heat-resistant option cannot be borrowed.
