PRSU four-wire slot photoelectric sensors have six housing profiles, NPN orPNP outputs and...
Official reference
Based on manufacturer documentation
Model support
For model confirmation
Parts lists
Code, photo, or BOM
Availability / lead time
By model and quantity
PRSU four-wire slot photoelectric sensors have six housing profiles, NPN orPNP outputs and 2/3/5 m cables. Match the 5.5 mm slot, target, mounting and separate Light-on/Dark-on wiring; send code and installation details for quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Choose a type; send a model or photo if unsure.
PRSUT
T housing profile
PRSUF
F housing profile
PRSUR
R housing profile
PRSUK
K housing profile
PRSUL
L housing profile
PRSUY
Y housing profile
Send the model, quantity and destination. For multiple items, attach a parts list or BOM.
Match a PRSU Photoelectric Sensor Code
AirTAC PRSU specification
Helpful for Model Matching:

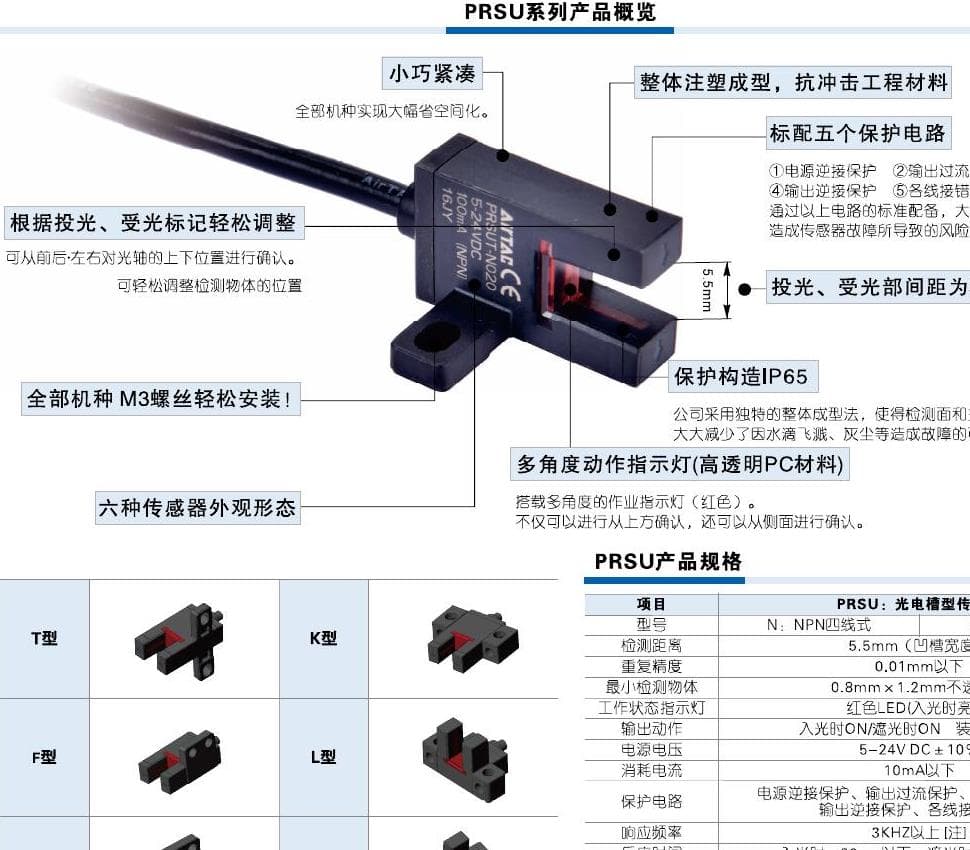

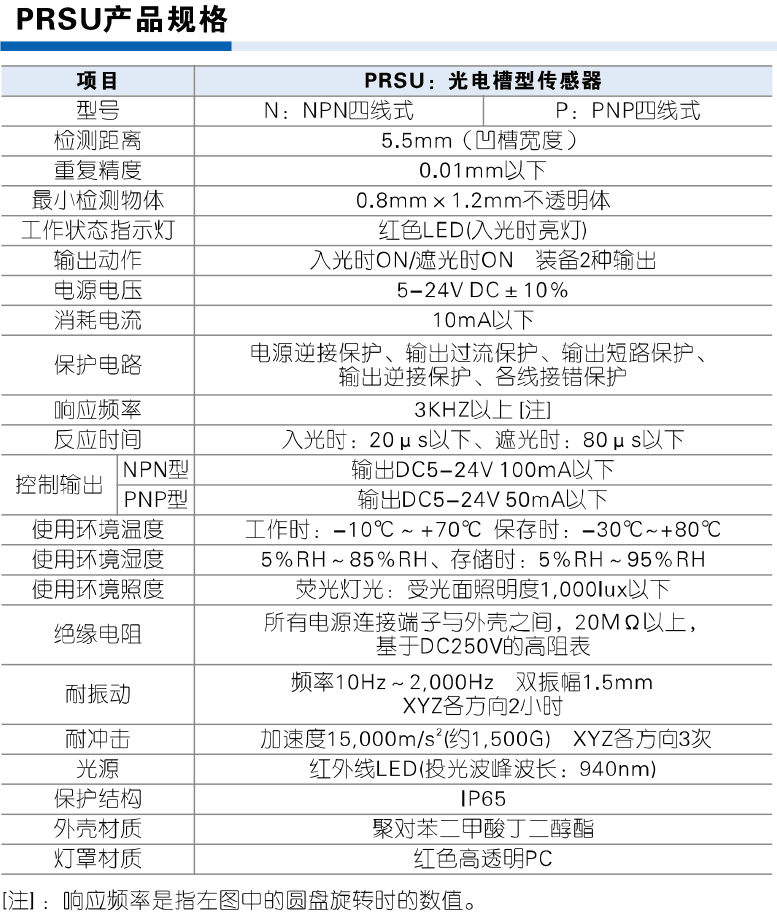

| Sensor identity | Four-wire slot photoelectric sensor with infrared 940 nmLED source, not a magnetic reed or cylinder-groove switch. T/F/R/K/L/Y are six physical housing/mounting profiles, not different sensing principles. |
| Slot and target | 5.5 mm specification is the slot width, not external sensing reach. Minimum opaque target 0.8×1.2 mm. Confirm target passage, thickness and alignment to the optical axis; not a universal transparent-target guarantee. |
| Supply and consumption | Supply 5–24VDC±10%; consumption≤10 mA. Brown positive supply, blue 0V. Match actual PLC/controller voltage and output load separately. |
| Output current by type | N four-wireNPN output DC5–24V≤100 mA; P four-wirePNP≤50 mA. These output limits are not the 10 mA consumption. No universal 100/200 mA output for both types. |
| Two output wires | BlackLight-on andwhiteDark-on are separate outputs. NPN loads connect toward positive supply; PNP loads toward 0V per diagrams. Both usebrown+/blue 0V. Do not collapse these into a selectable two-wireNO/NC contact or promise unused-wire wiring without confirmation. |
| Cable lengths | 020=2 m;030=3 m;050=5 m cable. No connector, axial orientation, other cable length or cable-free ordering field is published. |
| Response and repeatability | Published repeatability≤0.01 mm without a complete application test protocol in this sheet. ResponseLight-on≤20 μs, Dark-on≤80 μs. Frequency≥3 kHz is the illustrated rotating-disc test value, not every installed machine cycle. |
| Environment | Operating−10 to+70°C,5–85%RH; storage−30 to+80°C,5–95%RH. PublishedIP65. Receiver ambient incandescent illumination≤1000 lux; avoid direct light into receiver. Confirm actual moisture/dust/ambient-light conditions. |
| Mounting and wiring precautions | All profiles useM3 mounting screws; hole orientation, slot depth and optical axis differ by profile. Wait 50 ms after power-on before use. Keep signal cable away from power lines and check inductive-load surge protection. No automatic compatibility with magnetic-switch brackets or sensor grooves. |
| RFQ inputs | Send full sensor code or label, profile, NPN/PNP, cable length, actual supply/output load, controller wiring, target geometry, mounting photo, quantity and destination. Confirm installation and availability through inquiry. |
Ordering code matching
Code format

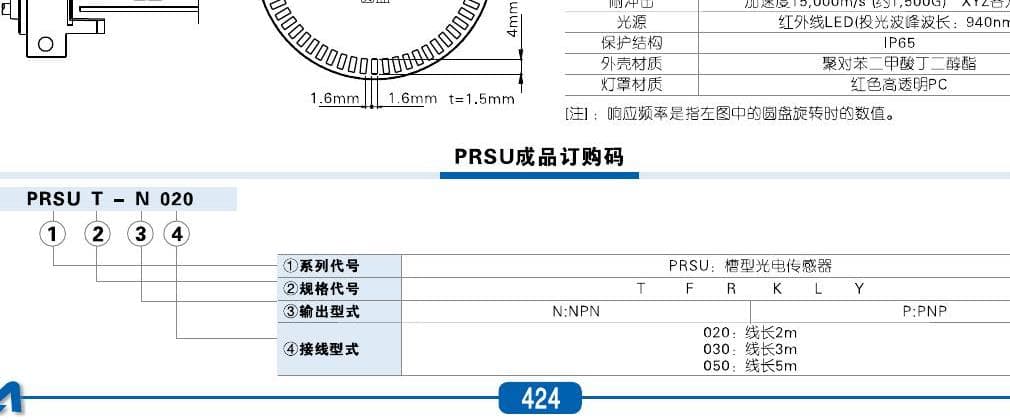

PRSU[T/F/R/K/L/Y]-[N/P][020/030/050]Four-wire optical sensor; two output wires; no magnetic/NC/NO optionPRSUT-N020PRSUF-P030PRSUK-N050PRSUY-P050| 1Profile | 2Output | 3Cable | 4Wiring |
|---|---|---|---|
| T/F/R/K/L/Y physical housing; match exact drawing. | N: NPN four-wire≤100 mA; P: PNP four-wire≤50 mA. | 020 = 2 m; 030 = 3 m; 050 = 5 m. | Brown+; blue 0V; blackLight-on; whiteDark-on. |
If the label is incomplete, send the readable parts together with a photo.
PRSUT-N0201Profile
T/F/R/K/L/Y physical housing; match exact drawing.
2Output
N: NPN four-wire≤100 mA; P: PNP four-wire≤50 mA.
3Cable
020 = 2 m; 030 = 3 m; 050 = 5 m.
4Wiring
Brown+; blue 0V; blackLight-on; whiteDark-on.
PRSU four-wire slot photoelectric sensors have six housing profiles, NPN orPNP outputs and 2/3/5 m cables. Match the 5.5 mm slot, target, mounting and separate Light-on/Dark-on wiring; send code and installation details for quotation.
No. PRSU senses an opaque target through a 5.5 mm optical slot. It has four wires, with separate blackLight-on andwhiteDark-on outputs. Match profile, target and NPN/PNP controller wiring; do not assume magnetic-groove or bracket interchangeability.
PRSU
PRSU Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
Build your pneumatic circuit with complementary components. Confirm dimensions and operating conditions before selecting a combination.
Product-group reference image
Switch the pneumatic circuit. Select the valve function, flow capacity, port size and control signal for the application.
Product-group reference image
Control actuator air flow. Confirm thread, tube size, flow direction and required flow rate.
Product-group reference image
Connect tubing to a valve or actuator. Match tube outside diameter, port thread and seal type.
Product-group reference image
Run air lines between fittings and components. Confirm outside diameter, bend radius, pressure and temperature.
Send your parts list, connection sizes and operating conditions for a matching check and combined quotation.
