AirTAC LSD High-Dust Linear Guides

LSD high-dust linear guides add the published dust-protection configurations for contaminated environments. Match the DD or ZZ protection construction, guide size, carriage form and...

Send model or BOMSend photo / label

For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.

LSDLinear Guides
LSD high-dust linear guide protection construction reference
Verified product-family reference image.

Part of the LSD Series family.

View family overview →

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

LSD [size] [carriage] [quantity] X[rail length] [preload] [accuracy] [mounting]-[DD / ZZ]Published LSD variant code layout

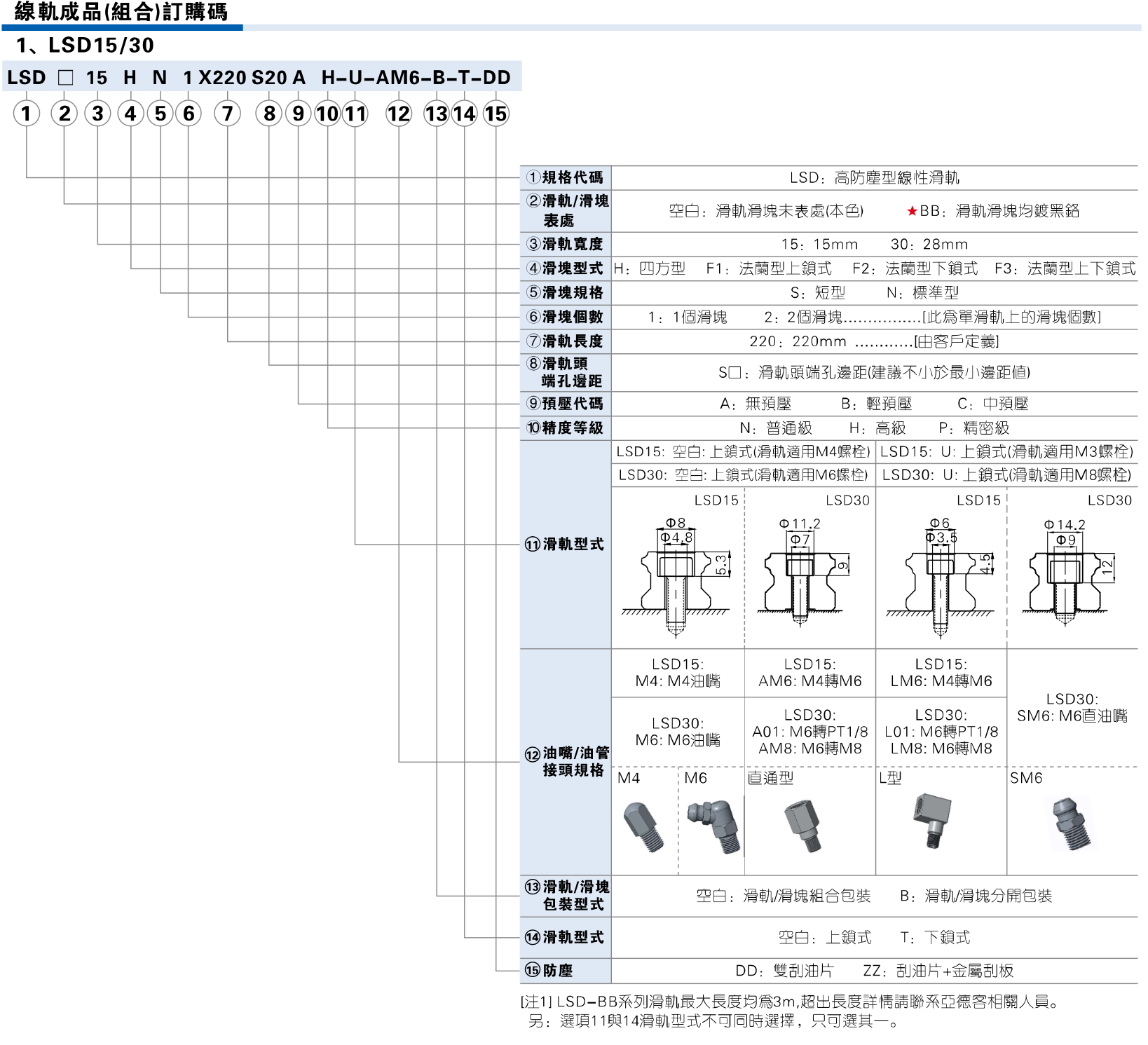

LSD15 H N 1 X220 S20 A H-U-AM6-B-T-DD
①Series②–③Guide size and carriage④–⑥Quantity and rail length⑦–⑩Preload, accuracy and interfacevariantVariant suffix
LSD: low-installation linear guide family.Match the published guide size and square, flange or specified carriage construction.Match carriage count, rail length and rail-end mounting distance.Match published preload, accuracy, mounting and lubrication/connector fields.Dust-protection suffix: DD dual scraper or ZZ metal scraper plus sealing construction.

Technical reference

Drawing and key data

Product reference
LSD high-dust linear guide protection construction reference
  • Complete LSD code or a clear photo of the installed rail and carriage
  • Published 15, 20, 25, 30 or 35 mm guide size
  • Carriage form, rail length, preload, accuracy and mounting interface
  • Dust-protection suffix: DD dual scraper or ZZ metal scraper plus sealing construction.
Installation drawing
LSD high-dust ordering-code referenceOpen drawingLSD high-dust protection construction referenceOpen drawing
  • Confirm DD dual-scraper or ZZ metal-scraper high-dust construction
  • Match guide size, carriage form, rail length, mounting and dust-protection construction
Key data

Model patterns

  • LSD15 H N 1 X220 S20 A H-U-AM6-B-T-DD
  • LSD15HN1X220S20AHUAM6BTDD
  • LSD

Reference details

  • Product family: LSD low-installation linear guide family
  • Variant: High-Dust Linear Guides
  • Published guide sizes: 15, 20, 25, 30 or 35 mm
  • Reference: PDF pages 18–23

Quick check

What distinguishes this LSD high-dust linear guides variant?

The high-dust LSD configuration uses published DD dual scrapers or ZZ metal scraper plus sealing construction; it is a distinct protection design,...

LSD

Include this series in a project RFQ

LSD Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
