The LSD family covers low-profile linear guides in low-profile, high-dust and self-lubricating constructions. Select the construction first, then match guide size, carriage form, rail...

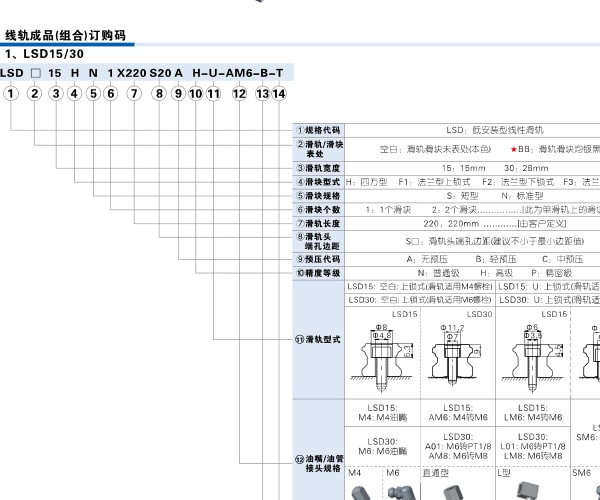

Ordering code matching
Code format
LSD [size] [carriage] [quantity] X[rail length] [preload] [accuracy] [mounting] [DD / ZZ / E]Published LSD family code layoutLSD15 H N 1 X220 S20 A H-U-AM6-B-TLSD15 H N 1 X220 S20 A H-U-AM6-B-T-DDLSD15 H N 1 X220 S20 A H-U-AM6-B-T-E| ①Series | ②–③Guide size and carriage | ④–⑨Rail and interface | DD / ZZ / EConstruction |
|---|---|---|---|
| LSD: low-installation linear guide family. | Match the published size and square, flange or specified carriage construction. | Match carriage count, rail length, preload, accuracy, mounting and connector/lubrication fields. | DD/ZZ: high-dust protection; E: self-lubricating configuration; blank: low-profile baseline form. |
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
LSD
AirTAC LSD Low-Profile Linear Guides
LSD
AirTAC LSD High-Dust Linear Guides
LSD
AirTAC LSD Self-Lubricating Linear Guides

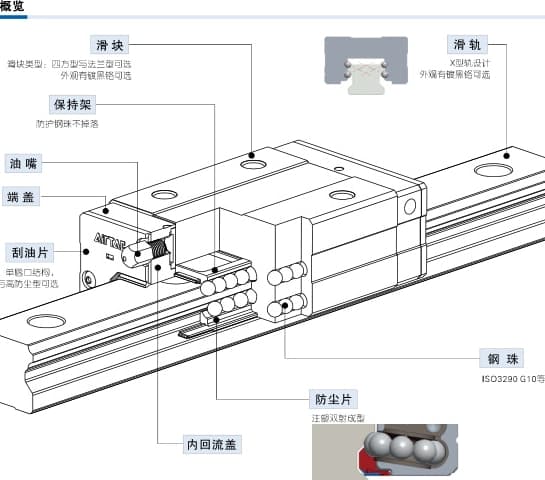

LSD is one low-installation linear-guide family with three published structural scopes. The baseline low-profile form, DD/ZZ high-dust protection and E self-lubricating configuration are maintained as distinct child pages because their construction and selection inputs differ.
Product matching reference
Start with the installed label, dimensions, port or mounting details, and any current photo. Use this AirTAC sourcing or replacement linear guide...
Yes. These pages are built for direct sourcing, replacement matching, or China-source alternative review when only photos, partial codes, or...
