AirTAC LSD Self-Lubricating Linear Guides

LSD self-lubricating linear guides use the published self-lubricator configuration for longer maintenance intervals. Match the E suffix, guide size, carriage form, rail length and...

Send model or BOMSend photo / label

For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.

LSDLinear Guides

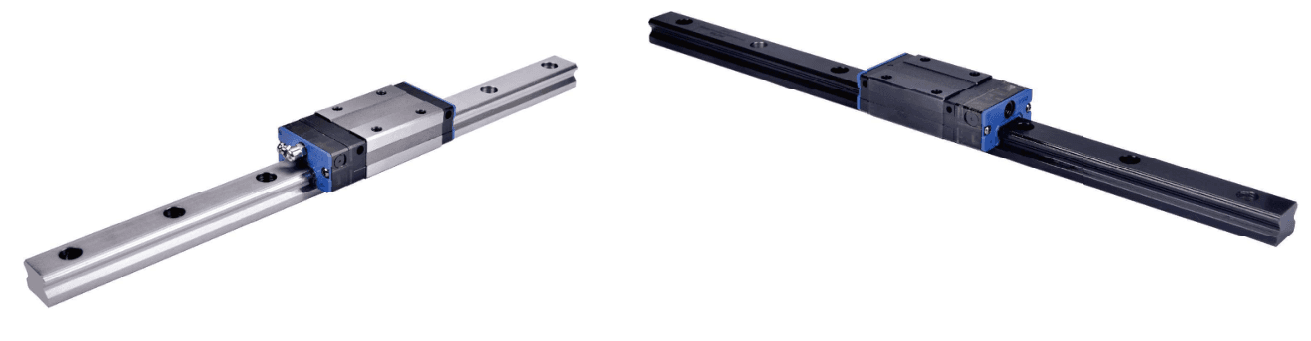

LSD self-lubricating linear guide product reference
Verified product-family reference image.

Part of the LSD Series family.

View family overview →

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

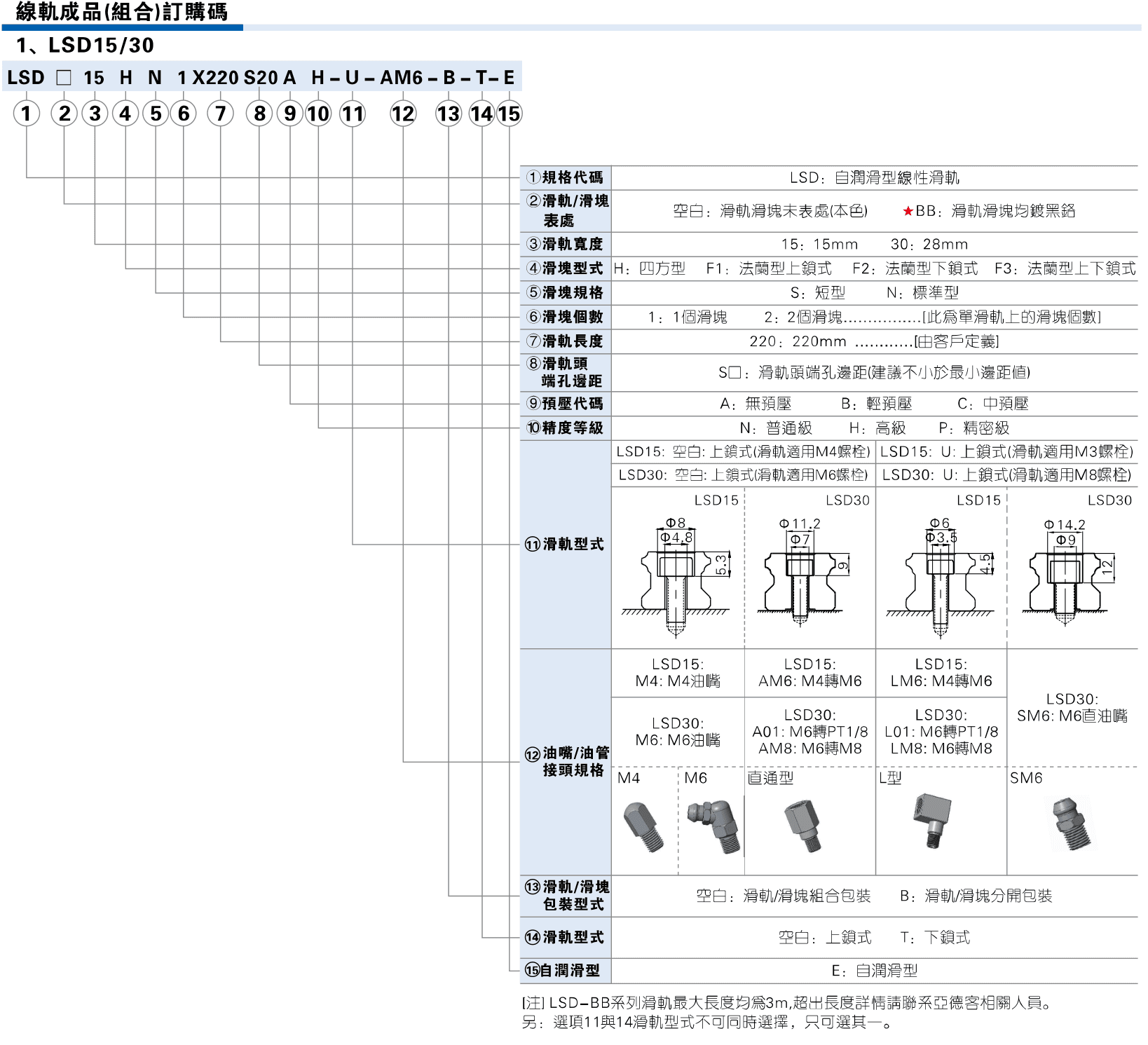

LSD [size] [carriage] [quantity] X[rail length] [preload] [accuracy] [mounting]-EPublished LSD variant code layout
LSD15 H N 1 X220 S20 A H-U-AM6-B-T-E
①Series②–③Guide size and carriage④–⑥Quantity and rail length⑦–⑩Preload, accuracy and interfacevariantVariant suffix
LSD: low-installation linear guide family.Match the published guide size and square, flange or specified carriage construction.Match carriage count, rail length and rail-end mounting distance.Match published preload, accuracy, mounting and lubrication/connector fields.Self-lubricator configuration with published E suffix.

Technical reference

Drawing and key data

Product reference
LSD self-lubricating linear guide product reference
  • Complete LSD code or a clear photo of the installed rail and carriage
  • Published 15, 20, 25, 30 or 35 mm guide size
  • Carriage form, rail length, preload, accuracy and mounting interface
  • Self-lubricator configuration with published E suffix.
Installation drawing
LSD self-lubricating ordering-code referenceOpen drawingLSD self-lubricating construction referenceOpen drawing
  • Confirm E self-lubricating configuration rather than the baseline or high-dust LSD construction
  • Match guide size, carriage form, rail length, mounting and self-lubricator requirement
Key data

Model patterns

  • LSD15 H N 1 X220 S20 A H-U-AM6-B-T-E
  • LSD15HN1X220S20AHUAM6BTE
  • LSD

Reference details

  • Product family: LSD low-installation linear guide family
  • Variant: Self-Lubricating Linear Guides
  • Published guide sizes: 15, 20, 25, 30 or 35 mm
  • Reference: PDF pages 24–30

Quick check

What distinguishes this LSD self-lubricating linear guides variant?

The self-lubricating LSD configuration adds the published self-lubricator component and E suffix; it is distinct from the standard and high-dust...

LSD

Include this series in a project RFQ

LSD Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
