PBR double acting pen cylinders with integrated front-cover screw mounting, bores 6/8/10/12/16 mm. Match motion, listed stroke, magnet and rear-port layout; send model, quantity and destination for quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Choose a type; send a model or photo if unsure.
PBR
Double acting · front-cover screw mounting
PSBR
Single-acting push · own dimensions
View details →PTBR
Single-acting pull · axial rear cover only
View details →Send the model, quantity and destination. For multiple items, attach a parts list or BOM.
Match a PBR-family model code
PBR pbr specifications official reference; match bore and motion
Helpful for Model Matching:

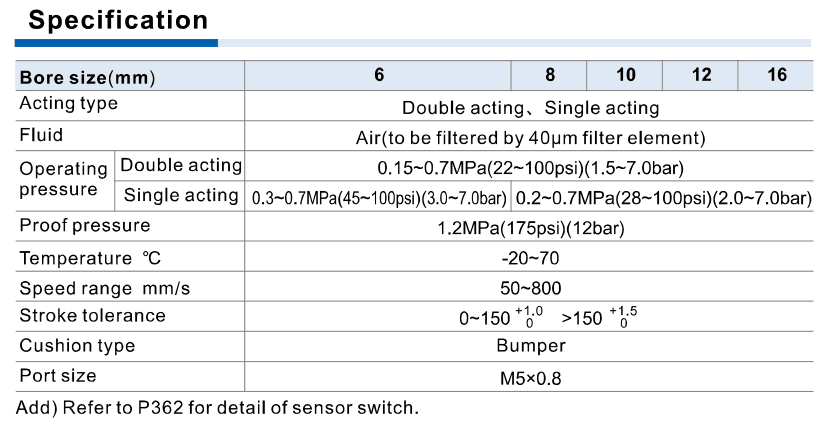

| Identity / mounting | PBR: double acting; integrated front-cover screw holes for top/bottom bolt mounting. Different from ordinary PB, double-rod PBD or adjustable PBJ; those models and 4 mm bore are not this family. |
| Operating pressure | Double acting: 0.15–0.7 MPa. |
| Air / proof / temperature | Air filtered 40 μm; proof 1.2 MPa is not operating pressure; −20 to+70°C. |
| Speed / cushion / tolerance | 50–800 mm/s; bumper cushioning. Stroke≤150: +1.0/0 mm; >150: +1.5/0 mm. |
| Bore-specific standard strokes | 6: 10/15/20/25/30/40/50/60 mm; 8: 10/15/20/25/30/40/50/60/75/80/100/125/150 mm; 10: 10/15/20/25/30/40/50/60/75/80/100/125/150/160/175/200 mm; 12: 10/15/20/25/30/40/50/60/75/80/100/125/150/160/175/200 mm; 16: 10/15/20/25/30/40/50/60/75/80/100/125/150/160/175/200/250/300 mm |
| Ports / rear cover | All M5×0.8 metric; no PT/G/NPT suffix. 6: R axial only; 8/10/12/16: U perpendicular 90° or R axial. Explicit rear-cover code required for matching; no CB double-clevis option. |
| Magnet / sensor | Blank without magnet, S with magnet. PBR specification references sensor-switch details on printed page 362; exact switch/bracket and wiring require confirmation, not automatic PB accessory-table compatibility. |
| Materials / drawings | PBR source lists SUS 304 piston rod and SUS 316 L barrel, aluminium-alloy covers; exact-bore materials require confirmation because the table is based on a certain bore. Magnetic and non-magnetic dimensions are the same per P 72. Select exact PBR/PSBR/PTBR and R/U drawings; single-acting body length varies with stroke. |
| Application / mounting | Choose bottom-mount bolt for actual working conditions; match mounting holes, thread depth, rod thread and overall length. No universal side-load or replacement interchangeability claim. Single-acting return cannot be extended by adding cylinders per shared installation guidance. |
| Standard versus maximum stroke | PBR 8 lists standard strokes to 150 mm but maximum stroke 200 mm; 200 mm is an inquiry requiring confirmation, not a published standard selection.6 max 60, 10 max 200, 12 max 300 (standard to 200), 16 max 300. |
Ordering code matching
Code format
PBR[6/8/10/12/16]×[listed stroke][S][R/U]Use bore/motion-specific stroke and rear-cover restrictionsPBR6×20RPBR10×30SRPBR16×30SU| ①Motion / bore / stroke | ②Magnet / rear cover |
|---|---|
| PBR: double acting; 6/8/10/12/16 with bore-specific listed strokes. | All M5×0.8 metric; no PT/G/NPT suffix. 6: R axial only; 8/10/12/16: U perpendicular 90° or R axial. Explicit rear-cover code required for matching; no CB double-clevis option. Blank/S magnet. |
If the label is incomplete, send the readable parts together with a photo.
PBR10×30SR①Motion / bore / stroke
PBR: double acting; 6/8/10/12/16 with bore-specific listed strokes.
②Magnet / rear cover
All M5×0.8 metric; no PT/G/NPT suffix. 6: R axial only; 8/10/12/16: U perpendicular 90° or R axial. Explicit rear-cover code required for matching; no CB double-clevis option. Blank/S magnet.
PBR double acting pen cylinders with integrated front-cover screw mounting, bores 6/8/10/12/16 mm. Match motion, listed stroke, magnet and rear-port layout; send model, quantity and destination for quotation.

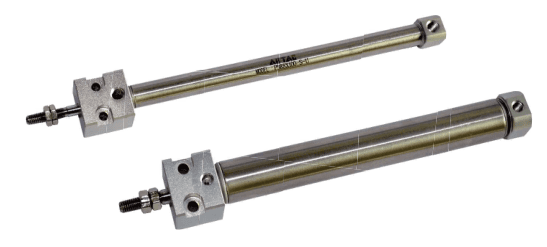

PBR is double acting with integrated front-cover mounting. Confirm its own motion, stroke-dependent body length, rear cover and rod/mounting dimensions. PB/PBD/PBJ illustrations are not a replacement fit guarantee.
