AirTAC MPGH Hinge-Mounted Panel Cylinders
MPGH is the hinge-mounted MPG panel-cylinder configuration. Send the code, bore, stroke and hinge interface for an RFQ.
For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.
MPGHMulti-position and Free-mount Cylinders
Part of the MPG Series family.
View family overview →Technical reference
Drawing and key data
Installation drawing

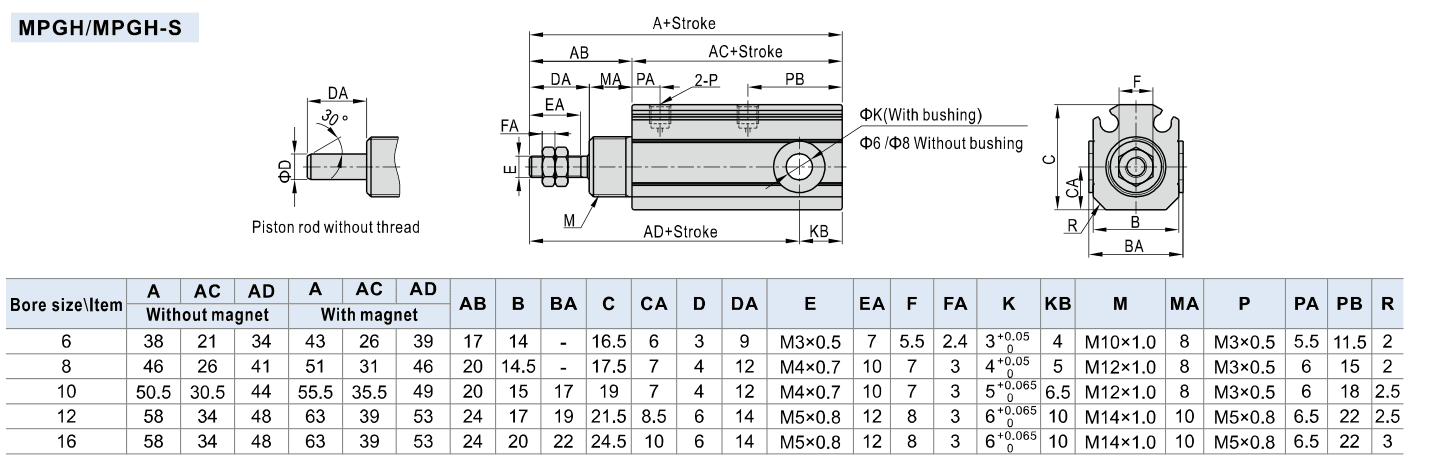

Dimension / installation drawing
- Overall dimensions and installed clearance
- Connection, port, or mounting points
- Relevant travel, thread, or interface dimensions
Key data
Model patterns
- MPGH
- MPGH10X30
- MPGH-10X30-S-N
Reference details
- Construction: Hinge-mounted panel cylinder
- Published bores: 6, 8, 10, 12, 16 mm
- Reference: MPG PDF pages 1–2
Quick check
How does MPGH differ from MPG?
MPGH uses the published hinge mounting construction; MPG is the standard panel form. Match the installed mounting interface before sourcing.
