Choose the MPG family first
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
MPGH
AirTAC MPGH Hinge-Mounted Panel Cylinders
AirTAC MPG Panel Cylinders
MPG is a compact panel cylinder family with standard and hinge-mounted forms. Confirm the mounting construction, bore, stroke, magnetic option, rod-end form and accessory before RFQ.
Request type
AirTAC originalModel matchingChina-source alternative
MPGMulti-Position and Free-Mount Cylinders
About MPG

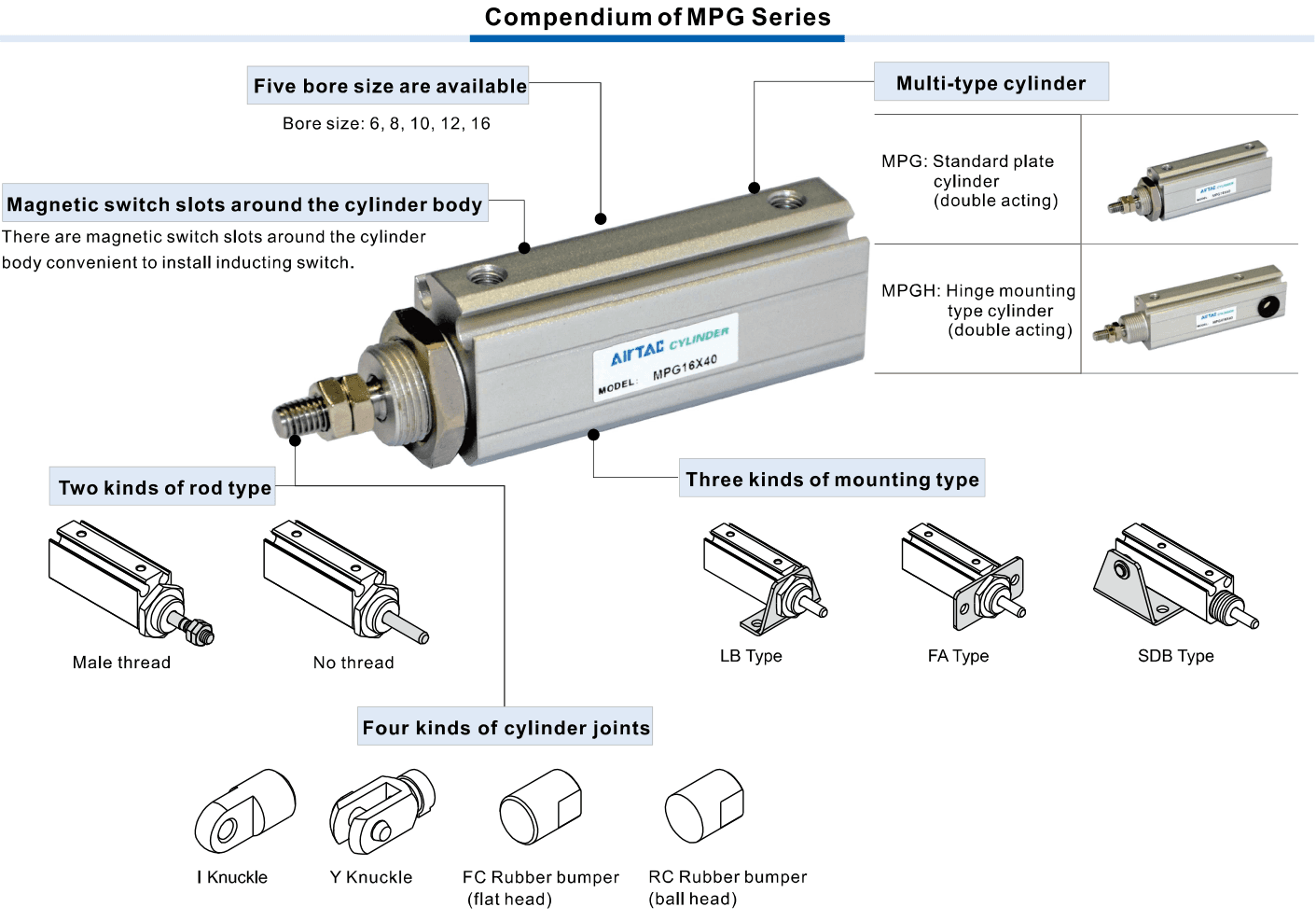

MPG is a compact panel-cylinder family. MPG is the standard panel form; MPGH uses a hinge mounting construction. Select the installation interface first, then verify bore, stroke, magnetic option, rod-end form and accessory.
Product matching reference
Compare the photo, drawing, and measurable details first
Identify from the photo
- Full MPG or MPGH code or readable label
- Standard panel or hinge-mounted construction
- Bore 6, 8, 10, 12, or 16 mm and published stroke
- Magnetic option, rod-end form and mounting accessory
- Installed interface and clearance
Drawing reference
- Confirm standard MPG panel type or MPGH hinge-mounted construction
- Compare bore, stroke, magnetic option, rod-end form, mounting accessory and installed interface
Key details for matching

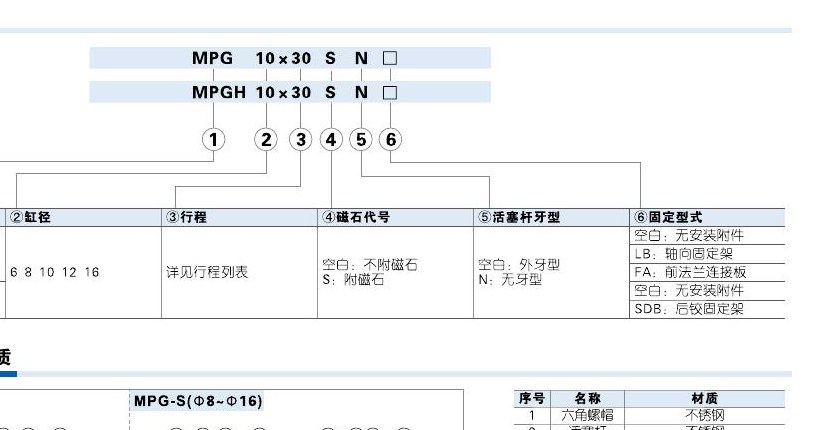

Model patterns
- MPG
- MPGH
- MPG10X30
- MPG-10X30-S-N
Reference details
- Product type: Compact double-acting panel cylinder
- Published family forms: MPG standard panel; MPGH hinge-mounted
- Published bores: 6, 8, 10, 12, 16 mm
- Published operating pressure: 0.15–0.7 MPa (22–100 psi)
- Reference pages: PDF pages 1–2
Matching Questions
How does MPGH differ from MPG?
MPGH is the hinge-mounted construction, while MPG is the standard panel form. Compare the installed mounting interface before treating the two forms...
MPG
Include this series in a project RFQ
MPG Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
