AirTAC HGS Stainless-Steel Precision Slide Table Cylinders

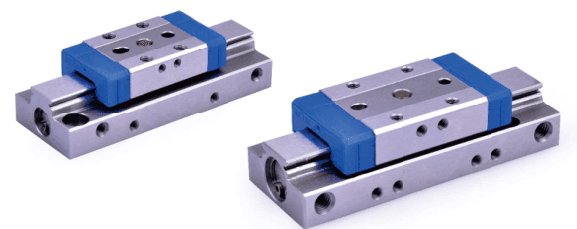

AirTAC HGS official product — Series product image

Request a Quote WhatsApp Send a Photo — We’ll Help Identify It

Compact stainless-steel precision slide tables with optional S magnetic construction and J...

Official reference

Based on manufacturer documentation

Model support

For model confirmation

Parts lists

Code, photo, or BOM

Availability / lead time

By model and quantity

Sourcing route & inquiry details

Compact stainless-steel precision slide tables with optional S magnetic construction and J stroke adjustment. Send the HGS code, load, moments, overhang, installed port and mounting drawing with quantity and destination for a quotation.

Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.

Request type

AirTAC originalModel matchingChina-source alternative

Match an HGS slide table model

Drawings & dimensions

Installation Drawings & Technical Specifications

Compare installed dimensions

Full View

Technical reference

Click to open full drawing ↗

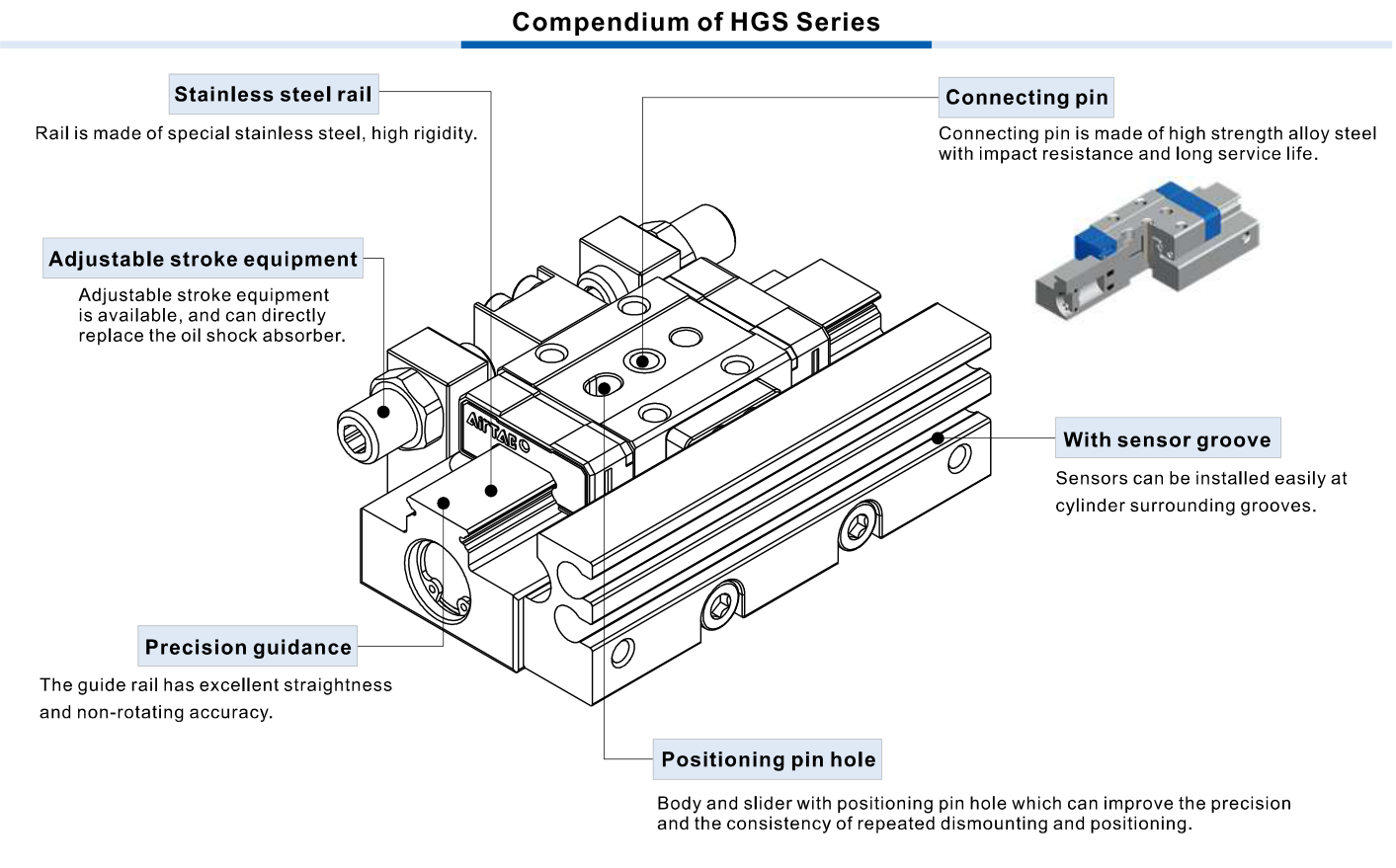

AirTAC HGS official overview

Helpful for Model Matching:

Full HGS code or label photo
Bore and published stroke
S magnet/no magnet and J adjustment/no adjustment
Installed body/seat port, adapter and mounting drawing
Load kg, moments N·m, overhang, speed and cushion/sensor requirement
Quantity and destination

Match bore/stroke and S seat/J adjustment drawing
Check body and installed seat port/adapter
Use configuration-specific kg load and stroke-specific N·m moments
Confirm mounting bolts/depth, shock and accessory kits separately

Catalogue Technical Specifications

AirTAC reference data

Acting / bore	Double acting; 6/8/10/12 mm; stainless-steel body/slide and guide rail
Pressure / medium / proof	6/8/10:0.25–0.7 MPa; 12:0.2–0.7 MPa; 40 μm filtered air; proof 1.2 MPa; −20–70°C
Speed / tolerance / lubrication	50–500 mm/s; stroke tolerance +0.5/0 mm; no lubrication required
Cushion / sensor	6/8 bumper; 10/12 bumper or shock absorber. DMSH/EMSH separately selected with magnet; S does not specify a supplied sensor
Stroke / J adjustment range	6:5/10; 8/10:5/10/15/20; 12:5/10/15/20/25 mm. J adjustable range 5 mm for 5 mm stroke; 5 mm each side for longer strokes. Installation envelope changes with J
Port interface	Body 6:M3×0.5; 8/10/12:M5×0.8. Sensor-seat S drawings8/10 show M3×0.5, while12 S shows M5×0.8; confirm exact installed adapter and port. No pipe-thread suffix
Allowable load by construction, kg	6/8/10/12:without adjustment0.3/0.3/0.8/1.2 kg; with J0.2/0.5/0.8/1.2 kg; with shock unavailable/unavailable/1.6/2.0 kg. Not force N or universal payload for all offsets
Pitch/yaw/roll moments, N·m	6×5/10:0.42/0.42/0.87; 8×5/10:0.42/0.42/0.87; 8×15/20:1.7/1.7/1.8; 10×5/10:1.2/1.4/2.3; 10×15/20:2.8/3.1/3.3; 12×5/10/15:2.4/2.9/4.7; 12×20/25:6.5/7.7/3.3. Confirm moment arm and deflection, not just load mass
Table precision	C-to-A/D-to-B parallelism 0.02 mm; walking parallelism 0.004 mm; E/F dimensional tolerance ±0.05 mm per datum drawing. Deflection curves use L 80 mm for6/8 and L 100 mm for 10/12
Accessory / shock installation	Sensor seat both sides; adjuster only side without ports. Correct port-adapter assembly is required to avoid leakage. Shock 10/12 ACA0806-1N lock nut1.67 N·m; consumable, do not turn bottom screw. Separate accessory kit codes depend on bore/stroke
