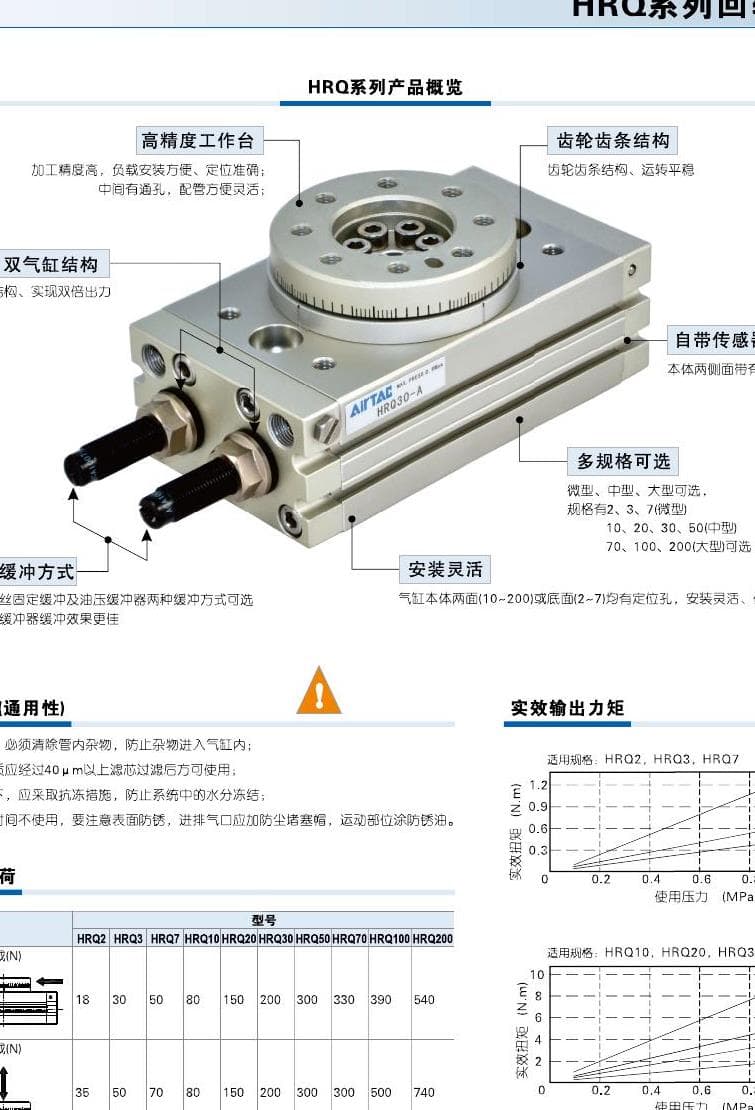

HRQ is a rack-and-pinion rotary cylinder with a rotary worktable and selectable cushioning. Confirm the exact size, rotation range, load inertia, cushioning, port thread and mounting face...

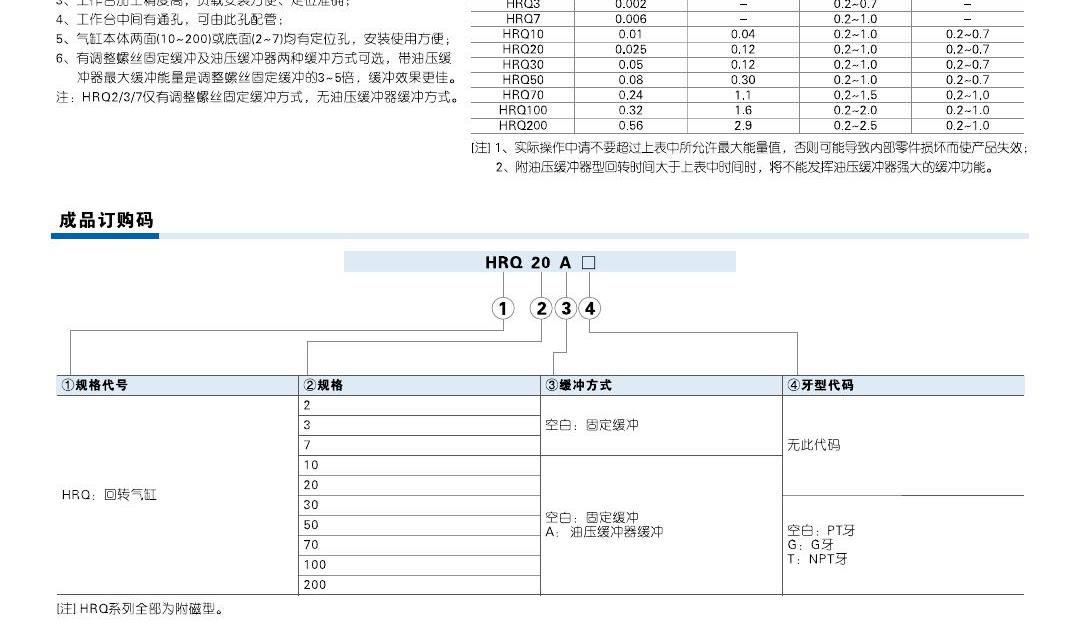

Ordering code matching
Code format
HRQ [size] [A] [PT/G/T]Published HRQ code layoutHRQ 20 AHRQ 50 GHRQ 7| ①Series | ②Size | ③Cushioning | ④Port thread |
|---|---|---|---|
| HRQ rotary cylinder. | 2, 3, 7, 10, 20, 30, 50, 70, 100, 200 | Blank fixed; A hydraulic-shock-absorber cushioning where published. | Blank PT; G G thread; T NPT thread. |
If the label is incomplete, send the readable parts together with a photo.
HRQ 20 A GHRQSeries
Rack-and-pinion rotary cylinder with a rotary worktable.
2 / 3 / 7 / 10 ... 200Size
Published size choices identify the rotary-cylinder platform.
ACushioning
Blank: fixed cushioning; A: hydraulic-shock-absorber cushioning where published.
GPort thread
Blank: PT thread; G: G thread; T: NPT thread.
HRQ is a rotary actuator assembly, not a conventional linear cylinder. The published structure uses rack-and-pinion motion with a rotary worktable and dual-cylinder output. Select it from the installed rotary interface, size, travel requirement and load condition, then confirm cushioning and thread.
Product matching reference
No. Confirm rotation range, output torque at the working pressure, load inertia, cushioning, worktable interface and installed clearance together...
