AirTAC 6DM / 6D / 6DW Integrated Valve Manifolds

6DM, 6D and 6DW are side-port integrated valve manifolds for five-port two-position and three-position pneumatic circuits. Confirm the connector format, series size, station count, port,...

Request type

AirTAC originalModel matchingChina-source alternative

Start RFQ Send photo / label

6DM+6D+6DWSolenoid Valves

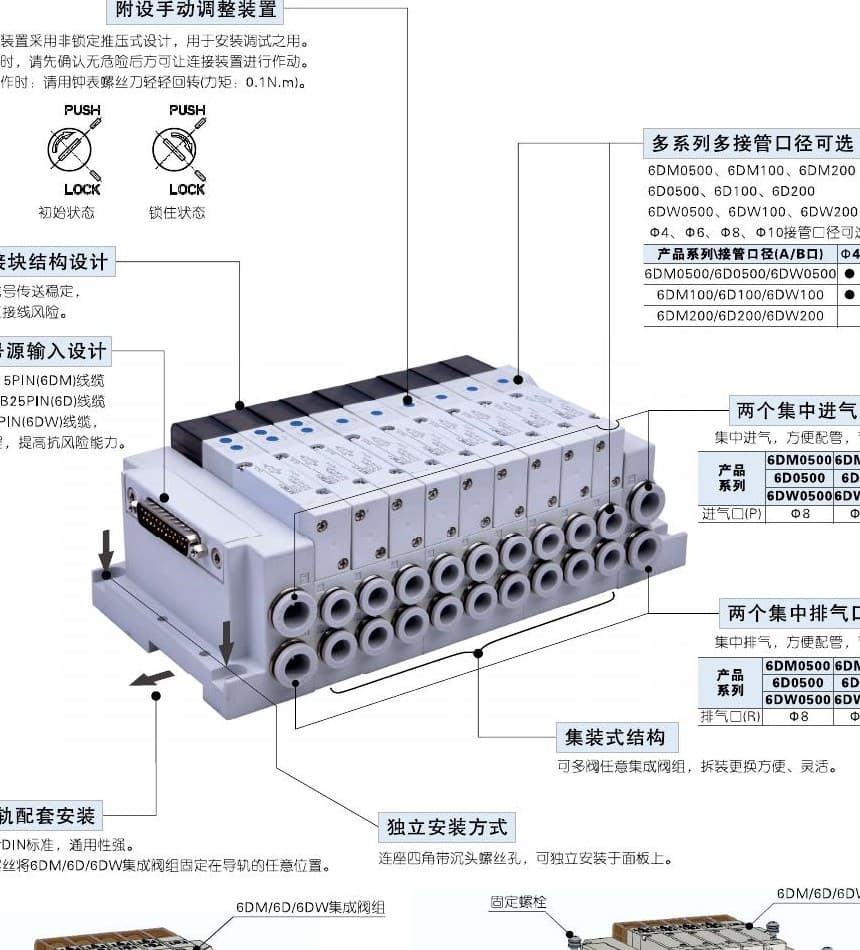

6DM, 6D and 6DW integrated valve manifold product reference — Verified product-family reference image.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

6DM / 6D / 6DW [size] [stations]-[A/B port] [DC voltage] [valve-count mix] [optional communication]Published side-port integrated manifold code layout

…-[SE/CE/PE] or …-[SR/CR/PR] or …-[SW/CW/PW/DW/EW]Published independent-air, independent-exhaust or external-pilot suffix layout

6DM1H 8F-J06 B S4 D1 C1 E1 P16D1H 8F-J06 B S2 D1 C1 CPN16DW1H 18F-J06 B S5 D8 C2 E1 P2

①Connector format	②Size / stations	③Ports / voltage	④Valve mix / interface
6DM 15-pin; 6D 25-pin; 6DW 37-pin D-sub.	0500, 100 or 200; match the published station count for the selected format.	J04/J06/J08/J10 port code; B DC24V or F DC12V.	S, D, C, E and P identify the published valve-count mix; optional protocol or special-air suffix must be matched from the full code.

Choose the 6DM+6D+6DW family first

A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.

6DM

15-pin D-sub manifold format; published for 3–12 stations

25-pin D-sub manifold format; published for 3–21 stations

6DW

37-pin D-sub manifold format; published for 13–33 stations

Read the model code

If the label is incomplete, send the readable parts together with a photo.

6D1H 8F-J06 B S2 D1 C1 CPN1

6DM / 6D / 6DW + sizeFamily and size

Published formats are 6DM, 6D and 6DW with 0500, 100 or 200 size selection.

8FStations

Published connected-valve count; match the installed manifold length.

J04 / J06 / J08 / J10A/B port

Published quick-fitting port code for the selected manifold size.

B / FVoltage

B: DC24V; F: DC12V.

S / D / C / E / PValve count mix

Published counts for single, double and three-position centre-condition valve forms.

CPN / CEN / CEA / CLKCommunication module

Optional published Profinet, EtherNet/IP, EtherCAT or IO-Link interface field; confirm PNP or NPN type.

About 6DM+6D+6DW

6DM, 6D and 6DW are one integrated-manifold family distinguished primarily by their D-sub signal capacity: 15-pin, 25-pin and 37-pin respectively. The companion document adds independently supplied, independently exhausted, external-pilot and dual-3/2 configurations as code-level assembly choices; they remain on this canonical manifold page rather than becoming thin URLs.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo

Full manifold code or clear assembly and connector photos
6DM 15-pin, 6D 25-pin, or 6DW 37-pin D-sub format
0500, 100, or 200 series size; station count and A/B port code
Required 5/2 or 5/3 function and any centre condition
DC24V or DC12V, communication module, independent-air/exhaust or external-pilot requirement
Installed DIN-rail or panel mounting dimensions

Drawing reference

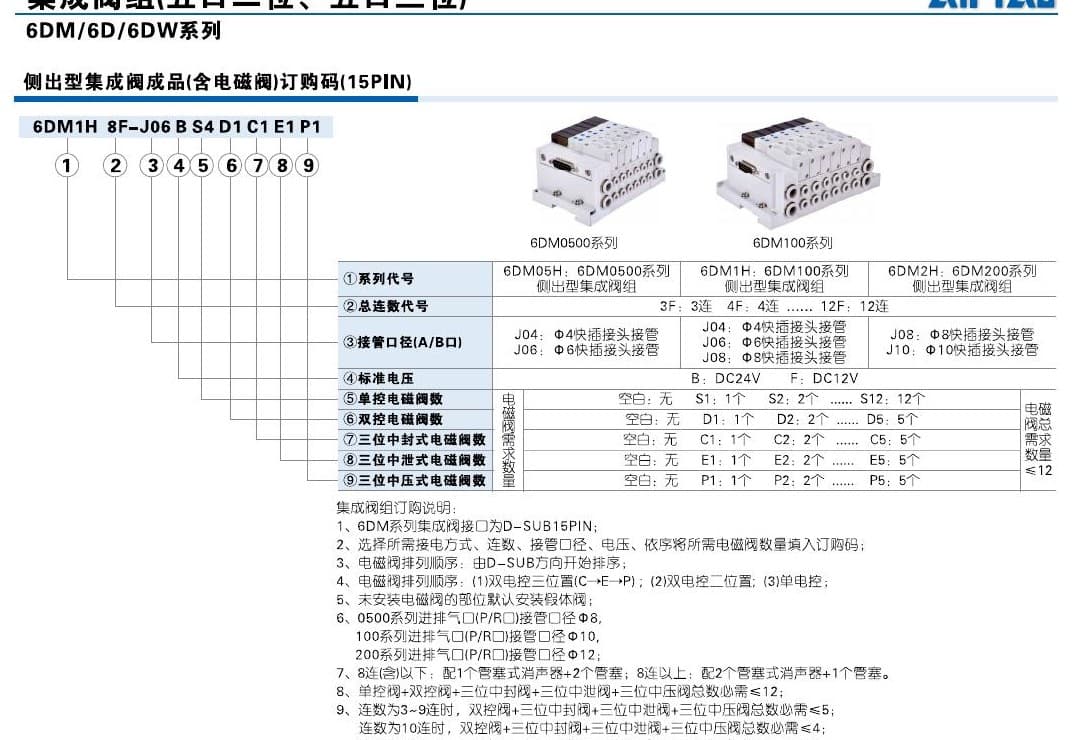

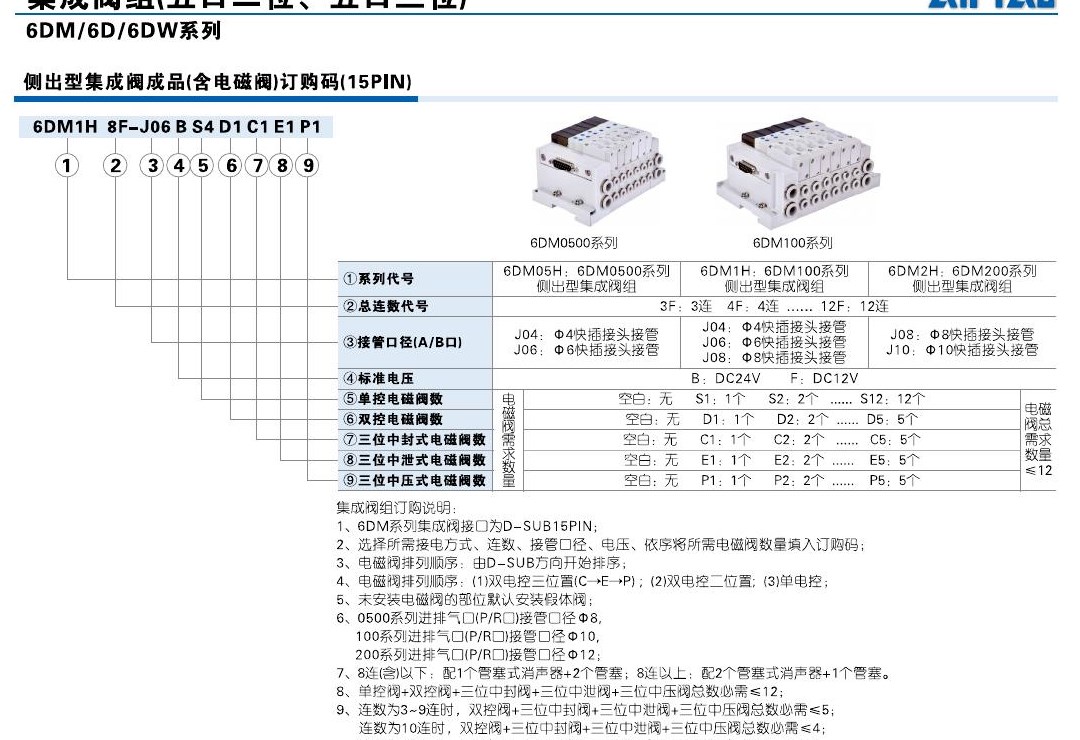

6DM integrated valve manifold ordering code reference

Open drawing

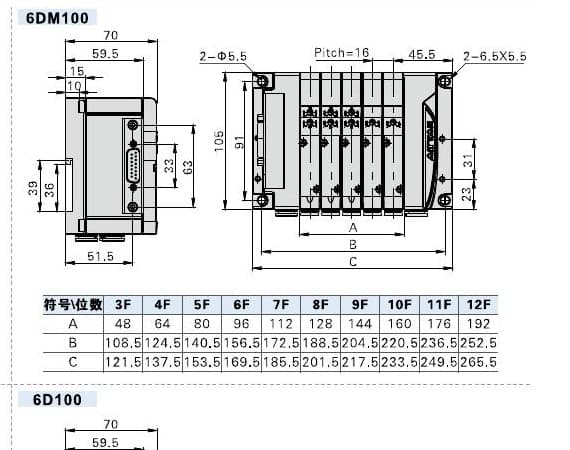

6DM100 integrated valve manifold installation drawing

Open drawing

Confirm 6DM, 6D or 6DW connector format before comparing a manifold
Match the 0500, 100 or 200 size, station count, port diameter, valve function, voltage, D-sub/protocol interface and any independent-air configuration

Key details for matching

Model patterns

6DM1H 8F-J06 B S4 D1 C1 E1 P1
6D1H 8F-J06 B S2 D1 C1 CPN1
6DW1H 18F-J06 B S5 D8 C2 E1 P2
6D120B

Reference details

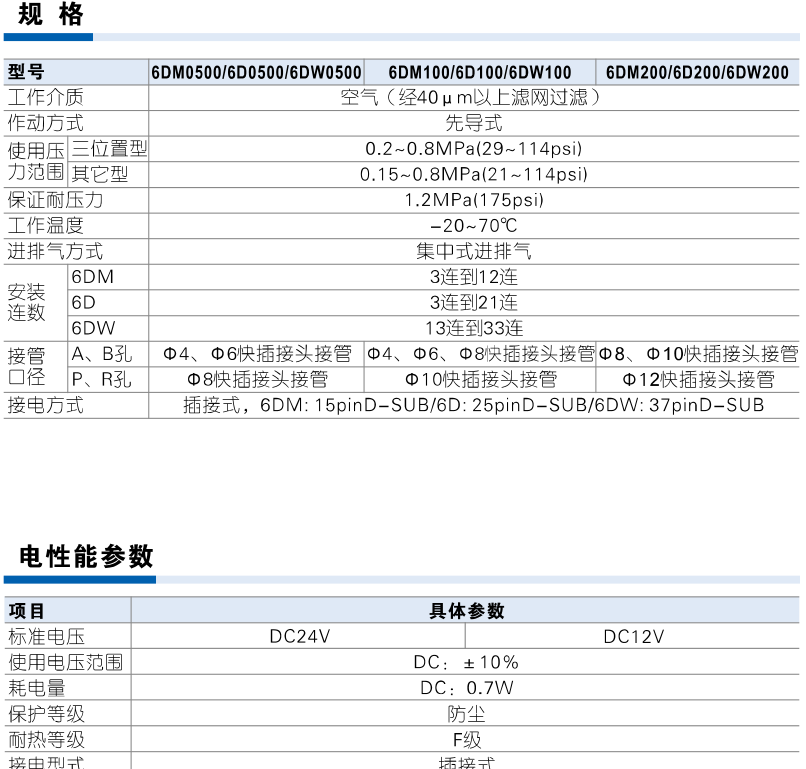

Product type: Side-port integrated manifold for five-port two-position and three-position valves
Published formats: 6DM 15-pin, 6D 25-pin, 6DW 37-pin D-sub
Published sizes: 0500, 100, 200 series
Published station range: 6DM 3–12; 6D 3–21; 6DW 13–33
Published operating pressure: 5/2: 0.2–0.8 MPa; other published valve forms: 0.15–0.8 MPa
Published proof pressure / temperature: 1.2 MPa; -20 to 70 °C
Reference pages: Primary PDF pages 1–7; derived-configuration PDF pages 1–2

Matching Questions

Do 6DM, 6D and 6DW use the same manifold page?

Yes. They are published as one manifold family, with 15-pin, 25-pin and 37-pin D-sub formats determining the supported station range and signal...

Should independently supplied or exhausted valves have a separate product page?

No. The source treats them as ordered configurations within the same manifold family. Send the complete code and required air-routing function so...

6DM+6D+6DW

Include this series in a project RFQ

6DM+6D+6DW Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.

Request a project quote Send a parts list or BOM
