AirTAC 6STV Three-Port Two-Position Solenoid Valves

6STV is a three-port, two-position solenoid-valve family from 0500 to 300 size. Confirm the normally closed or normally open state, single or double control, port, voltage, connector/lead...

Request type

AirTAC originalModel matchingChina-source alternative

Start RFQ Send photo / label

6STVSolenoid Valves

6STV three-port two-position solenoid valve product reference — Verified product-family reference image.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

6STV [05/1/2/3] [10/20] [M5/06/08/10] [NC/NO] [voltage] [plug/lead] [PT/G/NPT]Published 6STV code layout

6STV0510-M56STV110-066STV120-066STV310-10

①Function / control	②Size / port	③Electrical / thread
Three-port two-position; 10 single solenoid (NC/NO) or 20 double solenoid.	0500, 100, 200 or 300 with the published M5, 1/8, 1/4 or 3/8 inch port.	Match published voltage, plug or lead option, lead length and PT/G/NPT thread.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

6STV 1 10 06 NC B

6STVValve family

Published three-port, two-position solenoid valve family.

05 / 1 / 2 / 3Series size

Published 0500, 100, 200 or 300 series.

10 / 20Control

10 single solenoid; 20 double solenoid.

M5 / 06 / 08 / 10Port

Published port code for the selected size.

NC / NOInitial state

Published normally closed or normally open selection for 10 single-solenoid models.

A–F / I / D / M / G / TVoltage, lead and thread

Published voltage, lead/plug, length and PT/G/NPT fields; match the full code.

About 6STV

6STV is a three-port, two-position valve family, distinct from the five-port 6SV family. The 10 code covers the published single-solenoid form with NC or NO selection; 20 identifies the published double-solenoid form. Size, port, voltage, connector/lead and thread remain matching fields on this canonical page.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo

Full 6STV code or readable valve label
NC or NO state for a single-solenoid 10 configuration
10 single-solenoid or 20 double-solenoid control
0500, 100, 200 or 300 size; port code and installed thread
Required voltage, plug/lead option, lead length and PT/G/NPT thread
Mounting face and installed port orientation

Drawing reference

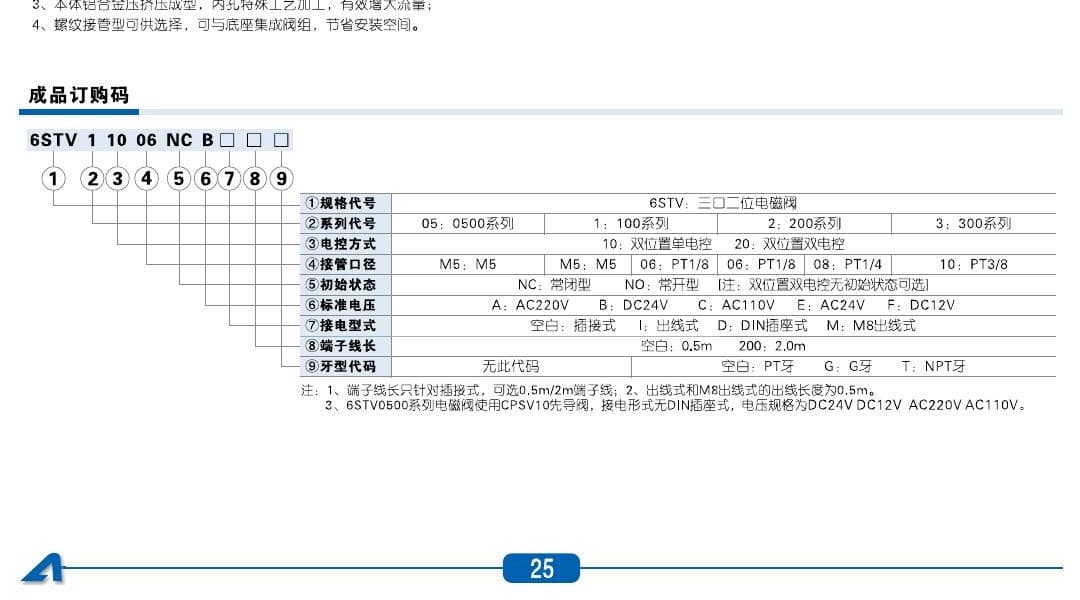

6STV solenoid valve ordering code reference

Open drawing

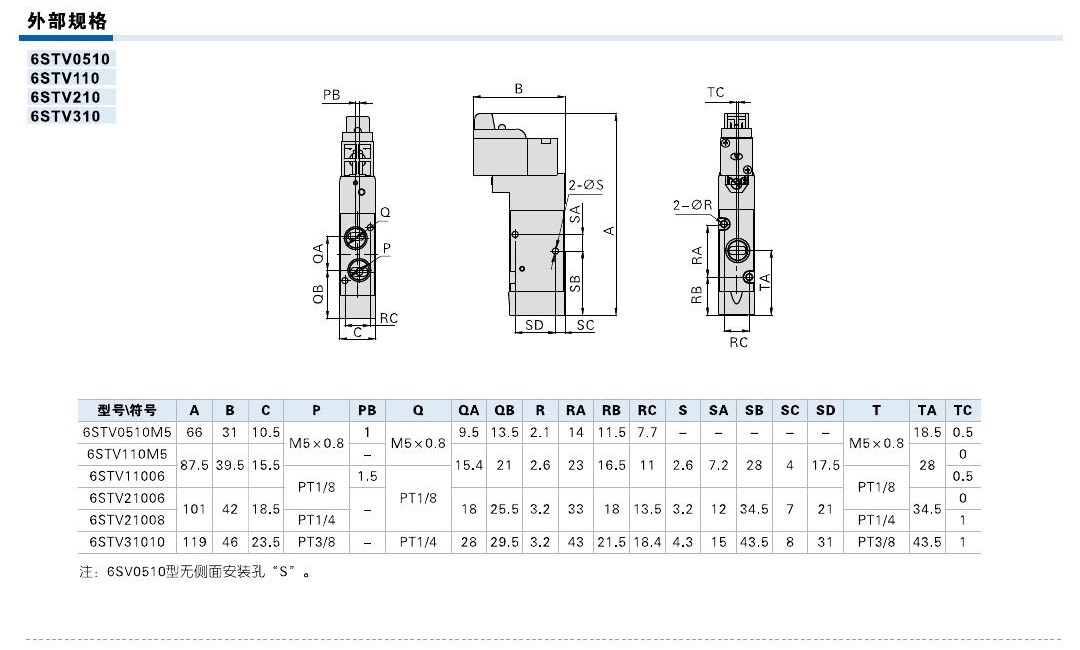

6STV solenoid valve installation drawing reference

Open drawing

Confirm 6STV three-port, two-position function, including the published NC or NO state
Match 0500/100/200/300 size, single/double control, port, voltage, connector/lead and thread before quotation

Key details for matching

Model patterns

6STV0510-M5
6STV0520-M5
6STV110-06
6STV120-06

Reference details

Product type: Three-port two-position solenoid valve
Published sizes: 0500, 100, 200, 300 series
Published port range: M5, 1/8, 1/4, 3/8 inch by model
Published operating pressure: 0.15–0.8 MPa (21–114 psi)
Published proof pressure / temperature: 1.2 MPa; -20 to 70 °C
Reference pages: PDF pages 1–3

Matching Questions

Is 6STV the same as a five-port valve?

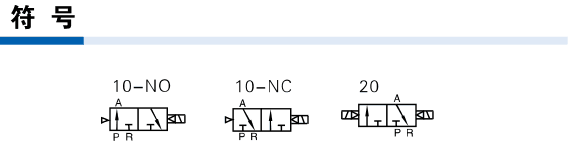

No. 6STV is published as a three-port, two-position family. Confirm its circuit symbol and the required NC or NO state before treating it as a...

Can a 10 single-solenoid code be selected by port size alone?

No. The initial NC or NO state, voltage, electrical connection and thread are part of the published code context. Send the complete label or circuit...
