AirTAC 7SV Five-Port Two-Position and Three-Position Solenoid Valves

7SV is a five-port directional solenoid-valve family in 0500 to 300 size, with two-position and three-position configurations. Confirm the full code, circuit function, centre condition,...

Request type

AirTAC originalModel matchingChina-source alternative

Start RFQ Send photo / label

7SVSolenoid Valves

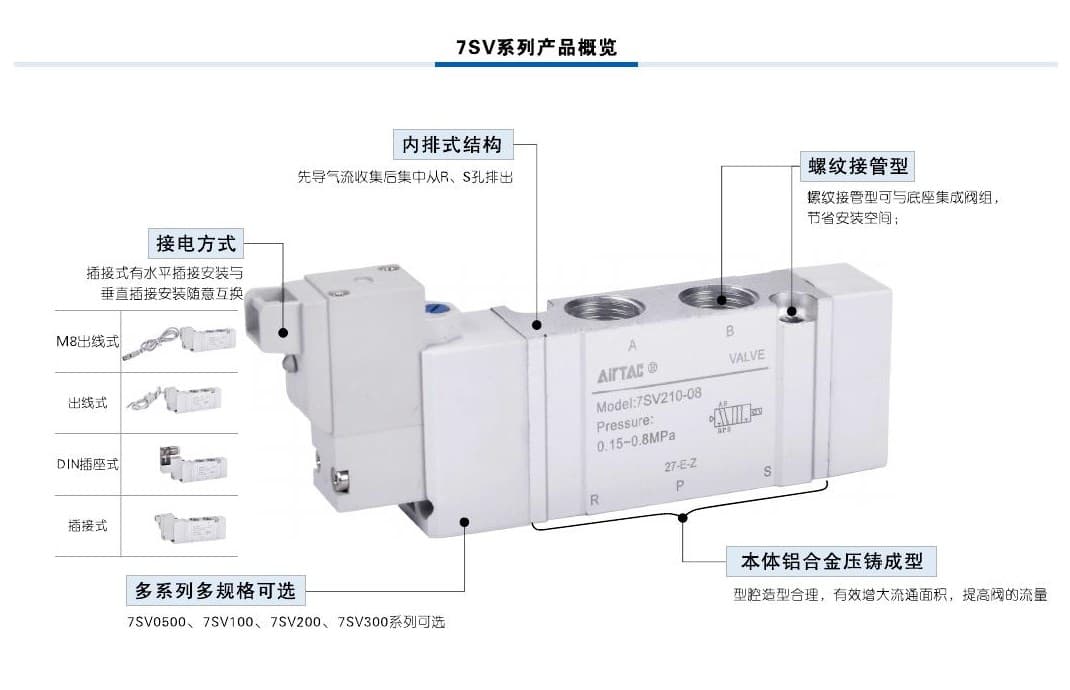

7SV five-port solenoid valve product reference — Verified product-family reference image.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

7SV [05/1/2/3] [10/20/30C/30E/30P] [M5/06/08/10] [voltage] [plug/lead] [PT/G/NPT]Published 7SV code layout

7SV0510-M57SV110-067SV130C-067SV230C-087SV330E-10

①Circuit function	②Size / port	③Electrical / thread
10/20 two-position; 30C closed centre, 30E exhaust centre, 30P pressure centre.	0500 to 300 series with published M5, 1/8, 1/4 or 3/8 inch port selection.	Match published voltage, plug or lead option, lead length and PT/G/NPT thread.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

7SV 2 30C 08 B

7SVValve family

Published five-port directional solenoid valve.

05 / 1 / 2 / 3Series size

Published 0500, 100, 200 or 300 series.

10 / 20 / 30C / 30E / 30PFunction / centre

10/20 two-position; 30C closed centre, 30E exhaust centre, 30P pressure centre.

M5 / 06 / 08 / 10Port

Published port code for the selected size.

A–F / I / D / M / G / TElectrical and thread

Match published voltage, plug/lead, lead length and PT/G/NPT thread fields.

About 7SV

7SV is a five-port directional-valve family with the same published functional distinction between two-position forms and three-position centre conditions. It has its own 0500/100/200/300 size range and model-specific drawings, so it remains distinct from 6SV rather than being merged by similar function alone.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo

Full 7SV code or readable valve label
Two-position 10/20 or three-position 30C/30E/30P circuit
0500, 100, 200 or 300 size and installed port
Required voltage, plug/lead style and lead length
PT, G or NPT thread and manifold/base mounting interface

Drawing reference

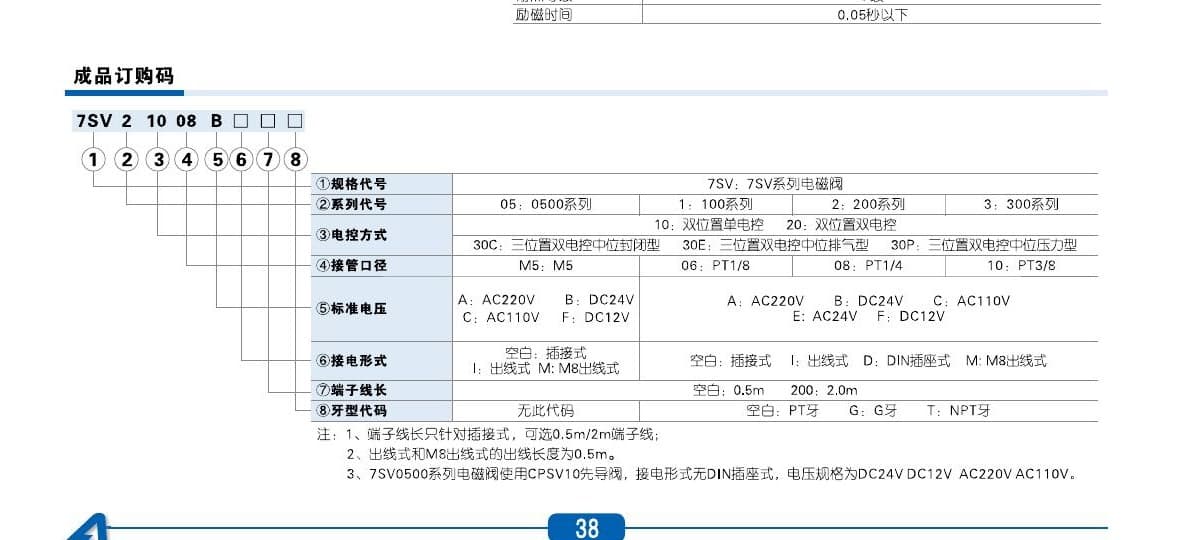

7SV solenoid valve ordering code reference

Open drawing

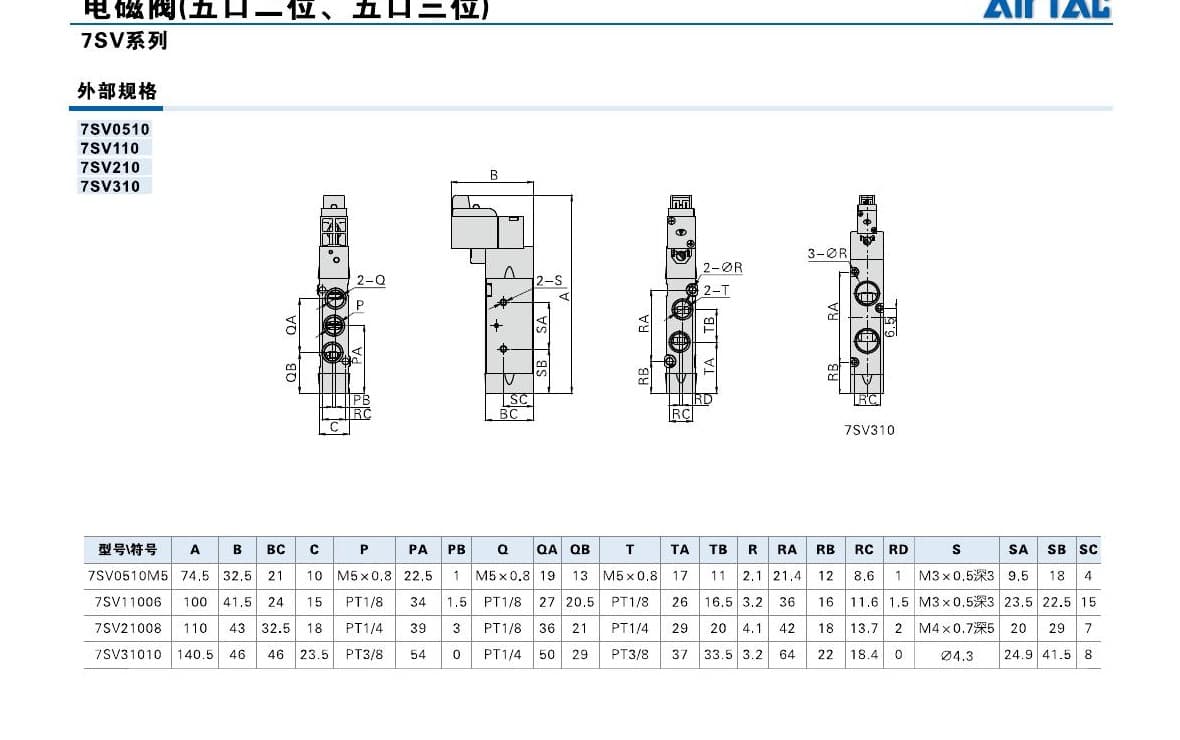

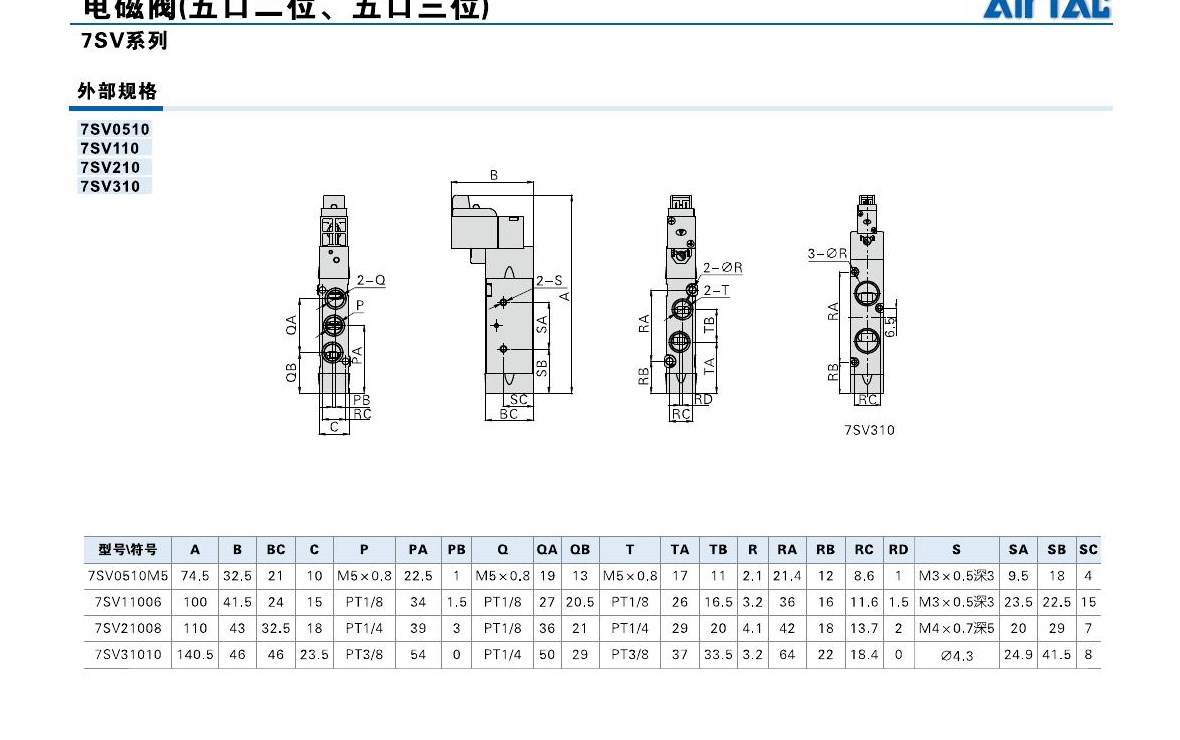

7SV solenoid valve installation drawing reference

Open drawing

Confirm 7SV five-port function and distinguish 10/20 two-position from 30C/30E/30P three-position control
Match 0500/100/200/300 size, port, voltage, plug/lead, lead length, thread and installed mounting face

Key details for matching

Model patterns

7SV0510-M5
7SV0530-M5
7SV110-06
7SV130C-06

Reference details

Product type: Five-port two-position and three-position solenoid valve
Published sizes: 0500, 100, 200, 300 series
Published port range: M5, 1/8, 1/4, 3/8 inch by model
Published operating pressure: Two-position: 0.2–0.8 MPa; other published valve forms: 0.15–0.8 MPa
Published proof pressure / temperature: 1.2 MPa; -20 to 70 °C
Reference pages: PDF pages 1–4

Matching Questions

Is 7SV interchangeable with 6SV?

Not by series code alone. Both sources publish five-port two-position and three-position functions, but 7SV has its own published size range and...

Why must a 30C, 30E or 30P code be retained?

The code specifies the three-position centre condition, which changes the pneumatic circuit state when neither solenoid is energized. It must be...

7SV

Include this series in a project RFQ

7SV Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.

Request a project quote Send a parts list or BOM
