Find your CPV10S type
Choose a type; send a model or photo if unsure.
CPV10S
Integrated 3/2 island
Request a QuoteSend a Photo — We’ll Help Identify It →
Send the model, quantity and destination. For multiple items, attach a parts list or BOM.
AirTAC sourcing reference•Solenoid Valves
SERIESCPV10S

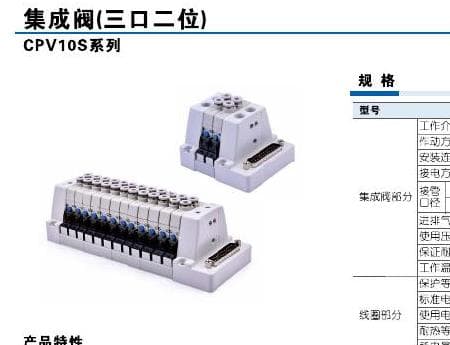

AirTAC CPV10S Integrated 3/2 Valve Islands
Integrated 3/2 valve islands with 25-pin D-sub,4–24 even stations, DC12/24V and Ø3.2/4...
Official reference
Based on manufacturer documentation
Model support
For model confirmation
Parts lists
Code, photo, or BOM
Availability / lead time
By model and quantity
Sourcing route & inquiry details
Integrated 3/2 valve islands with 25-pin D-sub,4–24 even stations, DC12/24V and Ø3.2/4 tubing. Send station count, connector/common wiring, quantity and destination.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Request type
AirTAC originalModel matchingChina-source alternative
Match a CPV10 or CPV10S Code
Identify the matching D-Sub cable
15-pin for 6DM; 25-pin for CPV10S, CPV15S and 6D; 37-pin for 6DW. Confirm connector ends, length and actual signal/common wiring separately.
View cable details and request a quote →Drawings & dimensions

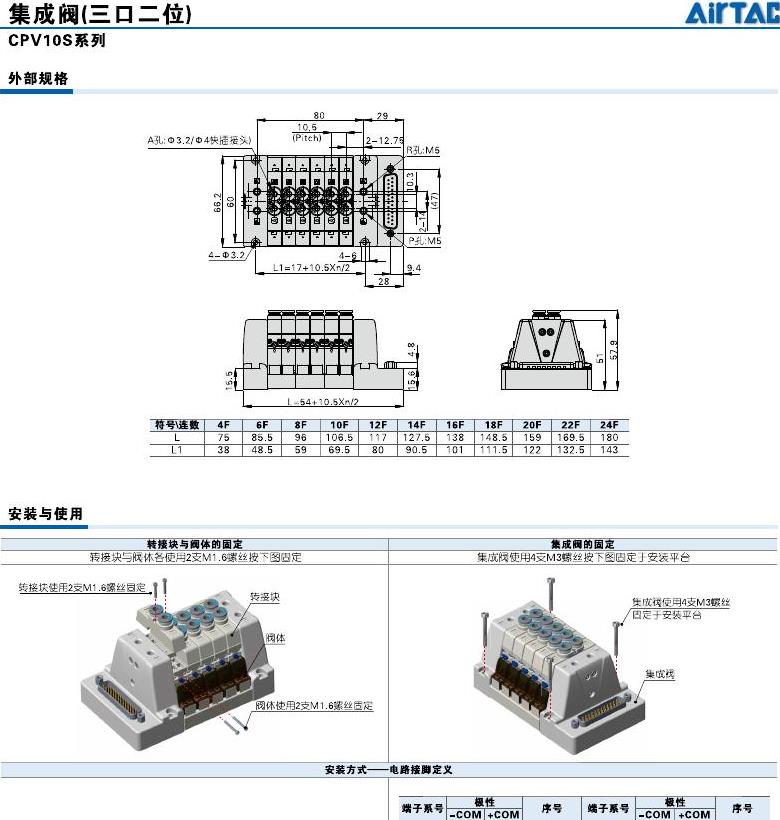

Installation Drawings & Technical Specifications
Compare installed dimensions
AirTAC CPV10S official English cpv10s specification
Helpful for Model Matching:
- Original complete valve/island label
- Standalone valve versus integrated island
- Voltage, wire length or D-sub COM wiring
- Ports, stations and own dimensions
- Accessory supply scope, quantity and destination
- Own valve/island dimensions and correct supply scope
- CPV10 four voltages versusCPV10S DC only
- Wire code050/200 versus25pinD-sub common assignment
- CPV10M accessory base,not CPV10S chassis
- Dustproof not universalIP65

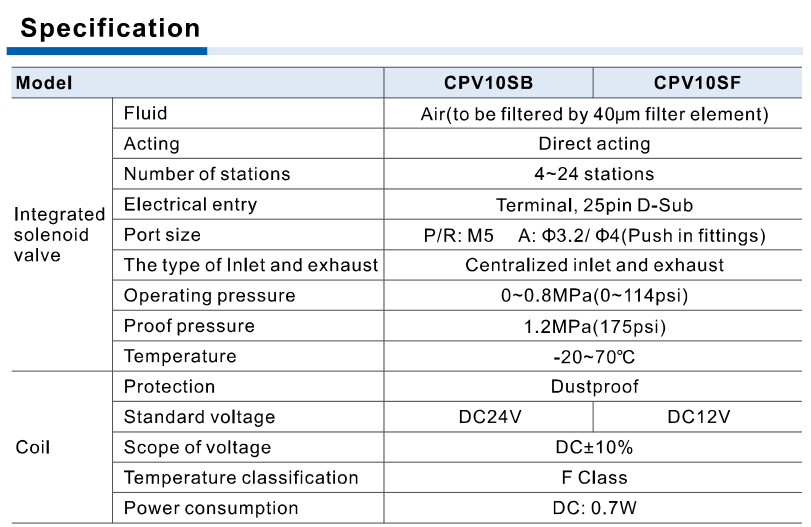

Catalogue Technical Specifications
| Identity / integrated architecture | CPV10S is an integrated direct-acting 3/2 solenoid-valve island with centralized inlet/exhaust and 25-pin D-sub power connector. CPV10 individual3/2 elements form paired left/right A/B banks. Whole-island code differs from CPV10 standalone valve plus CPV10M base; not interchangeable merely by body width. |
| Island ordering / station count | CPV10S J03=Ø3.2mm or J04=Ø4.0mm tubing, B DC24V/F DC12V,4F–24F even station counts. Station definition1=1A(left),2=1B(right),3=2A,4=2B,...23=12A,24=12B. Number is individual3/2 valve stations, not12 paired stations when ordering24F. Odd counts andAC voltage are not published complete islands. |
| Pressure / ports / power | Direct acting 0–0.8MPa; proof1.2MPa;−20 to 70°C;40µm filtered air. P/R M5, A push-inØ3.2/4; centralized inlet/exhaust. DC±10%,0.7W coil rating, F insulation andDustproof; not IP65. No whole-island maximum simultaneous current/power guarantee or per-island switching frequency published. |
| D-sub pins / common polarity | 25-pin D-sub: pins1–12 control1A–12A,14–25 control1B–12B; pin13 COM. Table supports −COM with (+)control pins or +COM with (−)control pins; confirm actual common/driver. Source note cable to pin13COM must be≥22AWG. Do not transfer CPV10 terminal non-polarity to this wiring, or CPV15S26pin/M12 layouts. |
| Dimensions / installation | Own island dimension table only4/6/...24F; L4F75mm through24F180mm, L1=38–143mm. Formula source L=54+10.5×n/2, L1=17+10.5×n/2. Four M3 platform mounting screws. CPV10 element/connecting block two M1.6 screws0.1–0.15N·m; manual override for debugging after actual circuit confirmation. Pin connector/mounting clearance must use selected island length. |
| Included element / spare-parts boundary | Integrated source includes CPV10 element pages19–20 and CPV10M separate-base pages21–22. These support component reference, not an AC CPV10S island option or a CPV10M replacement for integrated chassis. Confirm element spare part, valve labels, D-sub connector/cable and connecting-block supply; do not silently include every accessory. |
Common Model Codes & Configurations:Useful for an RFQ
CPV10S J04 B 12FCPV10S J03 F 4F
Technical reference & selection notes
Ordering Codes, Fit Verification & Specifications

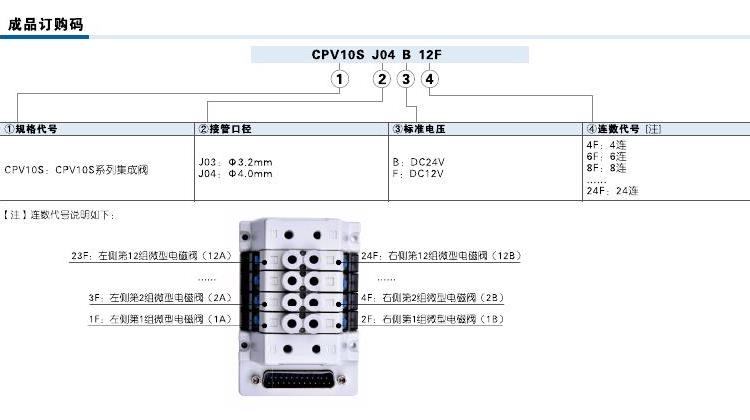

Ordering code matching
Match each code segment
Code format
CPV10S[J03/J04][B/F][even4–24]FComplete islandCPV10S J04 B 12FCPV10S J03 F 4F| 1Identity / integrated architecture | 2Island ordering / station count | 3Pressure / ports / power | 4D-sub pins / common polarity |
|---|---|---|---|
| CPV10S is an integrated direct-acting 3/2 solenoid-valve island with centralized inlet/exhaust and 25-pin D-sub power connector. CPV10 individual3/2 elements form paired left/right A/B banks. Whole-island code differs from CPV10 standalone valve plus CPV10M base; not interchangeable merely by body width. | CPV10S J03=Ø3.2mm or J04=Ø4.0mm tubing, B DC24V/F DC12V,4F–24F even station counts. Station definition1=1A(left),2=1B(right),3=2A,4=2B,...23=12A,24=12B. Number is individual3/2 valve stations, not12 paired stations when ordering24F. Odd counts andAC voltage are not published complete islands. | Direct acting 0–0.8MPa; proof1.2MPa;−20 to 70°C;40µm filtered air. P/R M5, A push-inØ3.2/4; centralized inlet/exhaust. DC±10%,0.7W coil rating, F insulation andDustproof; not IP65. No whole-island maximum simultaneous current/power guarantee or per-island switching frequency published. | 25-pin D-sub: pins1–12 control1A–12A,14–25 control1B–12B; pin13 COM. Table supports −COM with (+)control pins or +COM with (−)control pins; confirm actual common/driver. Source note cable to pin13COM must be≥22AWG. Do not transfer CPV10 terminal non-polarity to this wiring, or CPV15S26pin/M12 layouts. |
Avoid a wrong match
- Dustproof; not IP65.
- No AC24V or CPV15 option inferred.
- Standalone terminal wiring does not replace island COM wiring.
- CPVT wire and CPV10M base or blank plates require separate supply confirmation.
- CPV10S uses even 4–24 stations and DC only.
Read the model code
If the label is incomplete, send the readable parts together with a photo.
CPV10S J04 B 12F1Identity / integrated architecture
CPV10S is an integrated direct-acting 3/2 solenoid-valve island with centralized inlet/exhaust and 25-pin D-sub power connector. CPV10 individual3/2 elements form paired left/right A/B banks. Whole-island code differs from CPV10 standalone valve plus CPV10M base; not interchangeable merely by body width.
2Island ordering / station count
CPV10S J03=Ø3.2mm or J04=Ø4.0mm tubing, B DC24V/F DC12V,4F–24F even station counts. Station definition1=1A(left),2=1B(right),3=2A,4=2B,...23=12A,24=12B. Number is individual3/2 valve stations, not12 paired stations when ordering24F. Odd counts andAC voltage are not published complete islands.
3Pressure / ports / power
Direct acting 0–0.8MPa; proof1.2MPa;−20 to 70°C;40µm filtered air. P/R M5, A push-inØ3.2/4; centralized inlet/exhaust. DC±10%,0.7W coil rating, F insulation andDustproof; not IP65. No whole-island maximum simultaneous current/power guarantee or per-island switching frequency published.
4D-sub pins / common polarity
25-pin D-sub: pins1–12 control1A–12A,14–25 control1B–12B; pin13 COM. Table supports −COM with (+)control pins or +COM with (−)control pins; confirm actual common/driver. Source note cable to pin13COM must be≥22AWG. Do not transfer CPV10 terminal non-polarity to this wiring, or CPV15S26pin/M12 layouts.
About CPV10S
Integrated 3/2 valve islands with 25-pin D-sub,4–24 even stations, DC12/24V and Ø3.2/4 tubing. Send station count, connector/common wiring, quantity and destination.
Matching Questions
Is this a standalone valve or complete integrated island?
CPV10S is an integrated direct-acting 3/2 solenoid-valve island with centralized inlet/exhaust and 25-pin D-sub power connector. CPV10 individual3/2 elements form paired left/right A/B banks. Whole-island code differs from CPV10 standalone valve plus CPV10M base; not interchangeable merely by body width.
What must be confirmed for wiring?
25-pin D-sub: pins1–12 control1A–12A,14–25 control1B–12B; pin13 COM. Table supports −COM with (+)control pins or +COM with (−)control pins; confirm actual common/driver. Source note cable to pin13COM must be≥22AWG. Do not transfer CPV10 terminal non-polarity to this wiring, or CPV15S26pin/M12 layouts.
CPV10S
Include this series in a project RFQ
CPV10S Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
Confirm inspection requirements before quotationSpecify shipping preferenceConfirm timing in the quotationOcean & Rail Available
