CPV15S is an integrated three-port, two-position valve assembly with 25-pin D-Sub wiring. Confirm voltage, 2F–20F station count, port thread, D-Sub wiring and complete assembly dimensions...

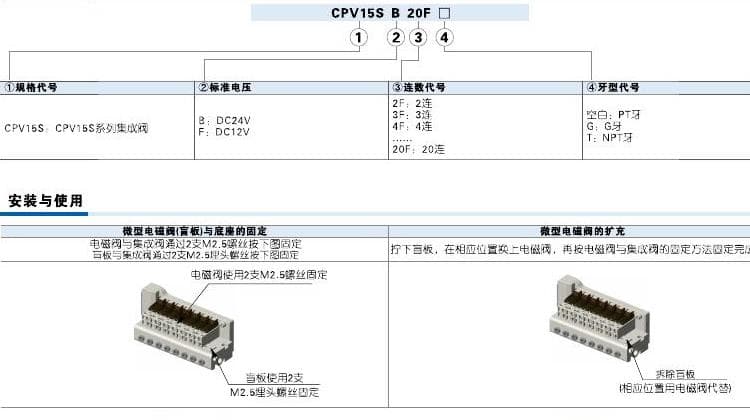

Ordering code matching
Code format
CPV15S [B/F] [2F–20F] [PT/G/NPT]Published CPV15S assembly code layoutCPV15S B 20FCPV15S F 4F G| ①Assembly | ②Voltage | ③Stations | ④Thread |
|---|---|---|---|
| CPV15S integrated 3/2 assembly. | B DC24V; F DC12V. | 2F through 20F. | Blank PT; G G; T NPT. |
If the label is incomplete, send the readable parts together with a photo.
CPV15S B 20F GCPV15SAssembly
Integrated 3/2 valve assembly.
B/FVoltage
B DC24V; F DC12V.
2F–20FStations
Published station count.
Blank/G/TThread
Blank PT; G G thread; T NPT thread.

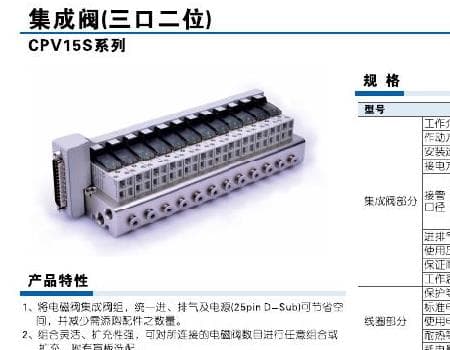

CPV15S is an integrated assembly distinct from the separate CPV15 valve and CPV15M base. The 25-pin D-Sub wiring, station count and port thread must be checked as one assembly.
Product matching reference

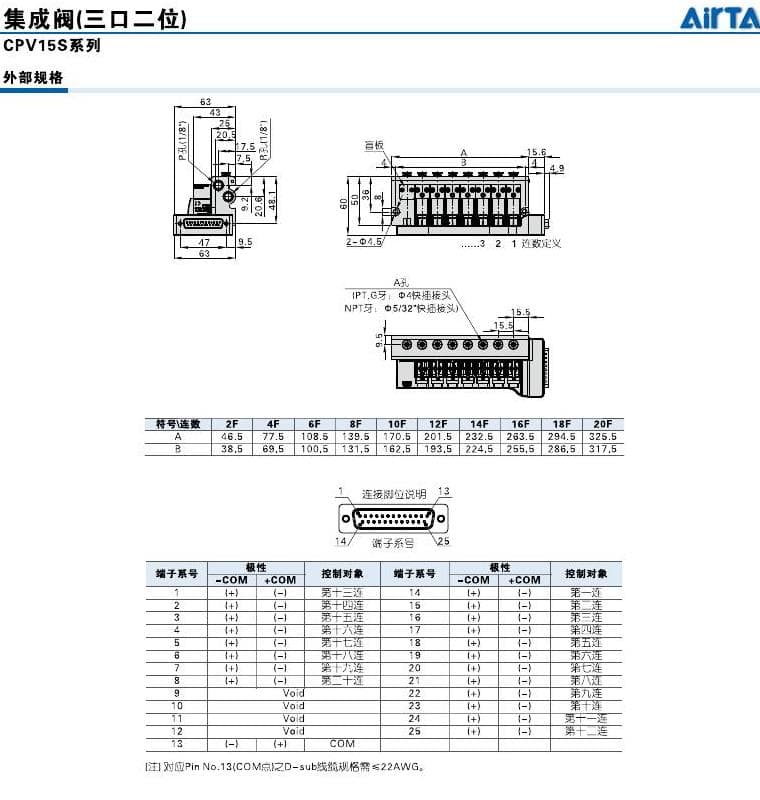

Station count, 25-pin D-Sub wiring, port thread and the installed manifold envelope are all part of the published CPV15S configuration. Confirm them...
CPV15S
CPV15S Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
