AirTAC JSID Double-Rod Double-Acting Cylinder
JSID is the double-rod, double-acting configuration in the JSI family. Confirm both rod ends, bore, stroke, magnetic option and installed clearance before RFQ.
For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.
Match a JSI model code
Enter the code from the label. Case, spaces, ×/x, and ordinary hyphens work.
JSIDStandard Cylinders
Product image reserved
The matching image will be added after model verification.
Part of the JSI Series family.
View family overview →Ordering code matching
Match each code segment
Code format
JSID [bore] × [stroke] [S]Published JSI-family code layoutJSID 80 × 50 S| ①Model | ②Bore (mm) | ③Stroke | ④Magnetic option | ⑤Mounting / port thread |
|---|---|---|---|---|
| JSID: Double-rod, double-acting configuration | 32, 40, 50, 63, 80, 100, 125 | Specify the required working stroke. | S: magnetic option where required. | Mounting: blank, LB, FA, FB, CA, CB, CR, TC, TCM1, or TCM2; blank thread is PT and G is optional. |
Technical reference
Drawing and key data

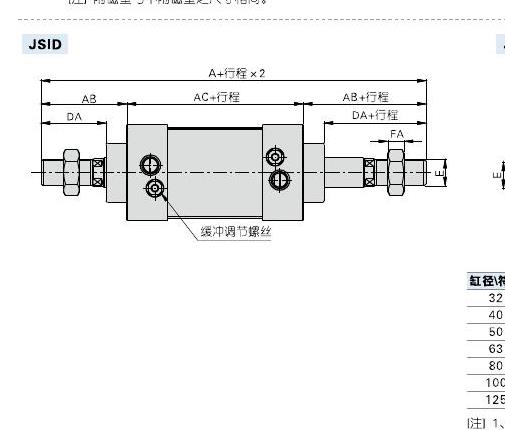

Installation drawing
- Confirm the double-rod JSID configuration
- Compare both rod ends, bore, stroke and installed clearance
Key data
Model patterns
- JSID
- JSID 80 × 50 S
Reference details
- Family: JSI standard cylinder family
- Configuration: Double-rod, double-acting configuration
- Published bores: 32, 40, 50, 63, 80, 100, 125 mm
- Reference drawing: JSID exterior drawing, PDF page 3
Quick check
What distinguishes JSID in the JSI family?
Double-rod, double-acting configuration; both rod ends and the installed clearance must be checked together.
JSID
Include this series in a project RFQ
JSID Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
