JSI aluminium-profile cylinders, single-rod double-acting, bores 32/40/50/63/80/100/125 mm. Confirm original code, published stroke, mount, magnet and PT/G thread; send quantity and destination for quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.

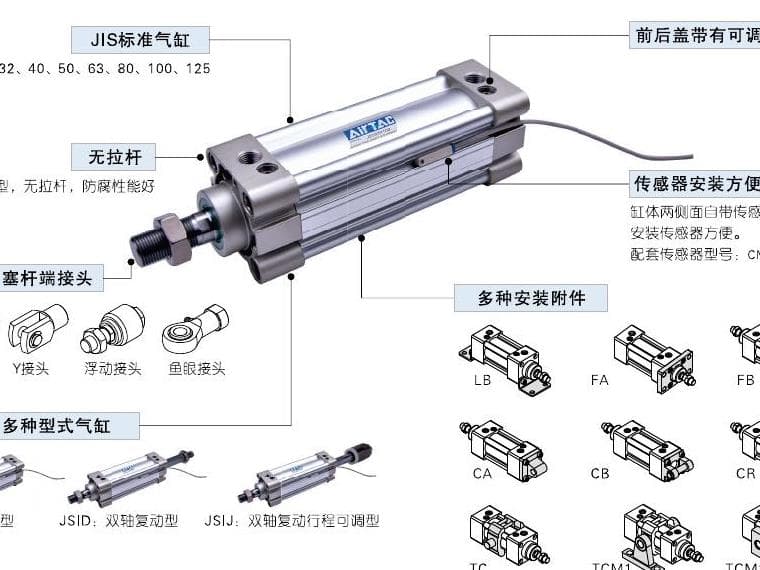

Choose a type; send a model or photo if unsure.
JSI
Single-Rod Double-Acting
JSID
Double-Rod Double-Acting
View details →JSIJ
Double-Rod Adjustable-Stroke
View details →Send the model, quantity and destination. For multiple items, attach a parts list or BOM.
Match a JSI-family model code

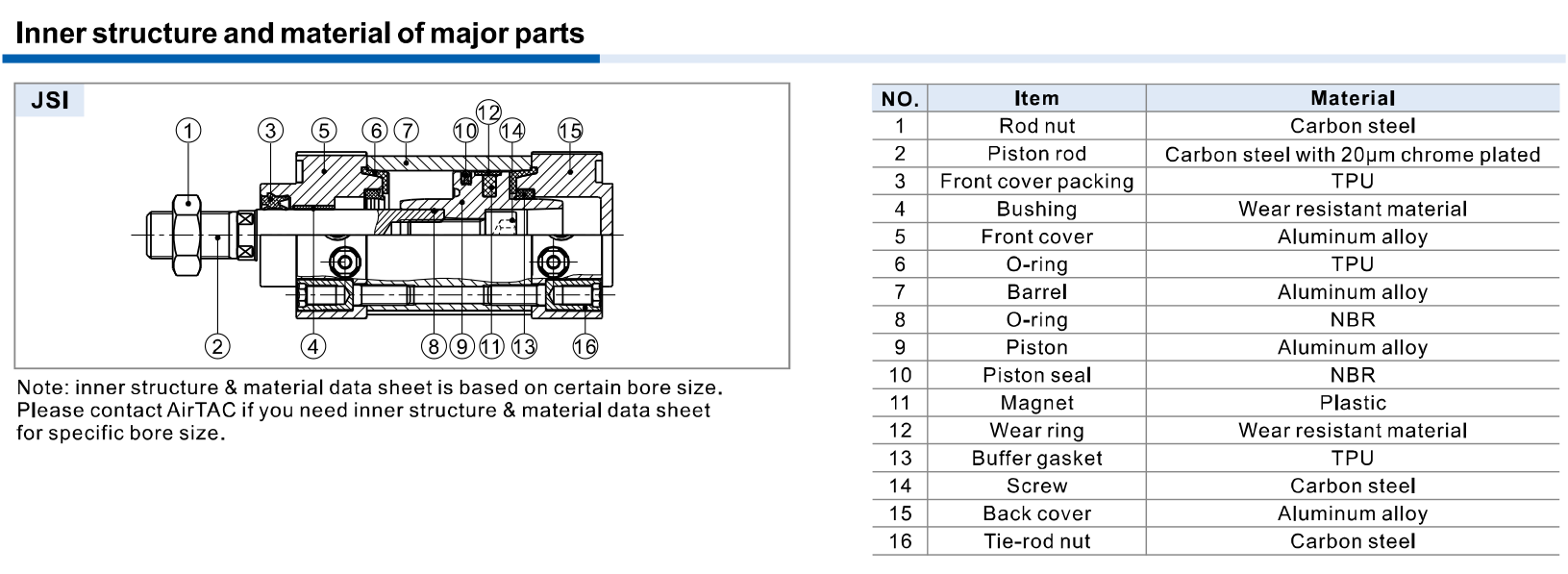

JSI official jsi-materials.png; select labelled construction and bore
Helpful for Model Matching:
| Construction / operation | JSI aluminium-profile cylinders, single-rod double-acting, bores 32/40/50/63/80/100/125 mm. Confirm original code, published stroke, mount, magnet and PT/G thread; send quantity and destination for quotation. |
| Operating conditions | Double acting; air filtered 40 μm. Working pressure 0.15–1.0 MPa; proof 1.5 MPa is not working pressure. Standard temperature −20 to +70°C. 32–100: 30–800 mm/s; 125: 30–500 mm/s. |
| Port / magnet / sensor | 32: 1/8; 40/50: 1/4; 63/80: 3/8; 100/125: 1/2. Blank thread PT; G optional, no NPT. Blank without magnet, S with magnet. CMSE / DMSE sensors listed; sensing requires magnetic construction and sensor is not automatically included. Sensor grooves on two sides; no total groove count asserted. |
| Published strokes / custom boundary | 32 listed: 25/50/75/80/100/125/150/160/175/200/250/300/350/400/450/500 mm. Other bores add 600/700/800/900/1000 mm. Max.std column: 32=1000; 40/50=1200; 63/80/100/125=1500; max=1800 all. Those columns are not a discrete standard list; consult for nonstandard stroke. |
| Mount / accessory applicability | JSI blank/LB/FA/FB/CA/CB/CR/TC. JSID/JSIJ blank/LB/FA/TC only. TC used with TCM1/TCM2 accessories; those are not complete-cylinder mount suffixes. CR cannot be used alone: combine CB. Accessory part codes include F-JSI/F-SI/F-SAI; accessory prefixes vary by bore and configuration; check the matching table. |
| Adjustment / seals | Only JSIJ has stroke-adjustment field: 10/20/30/40/50/75/100 mm. Adjustment above working stroke needs supplier confirmation. No H/N or other seal-selection field in this JSI ordering source; SAU/SC seal options are not listed for JSI. Material table is based on a certain bore and requires confirmation for the requested size. |

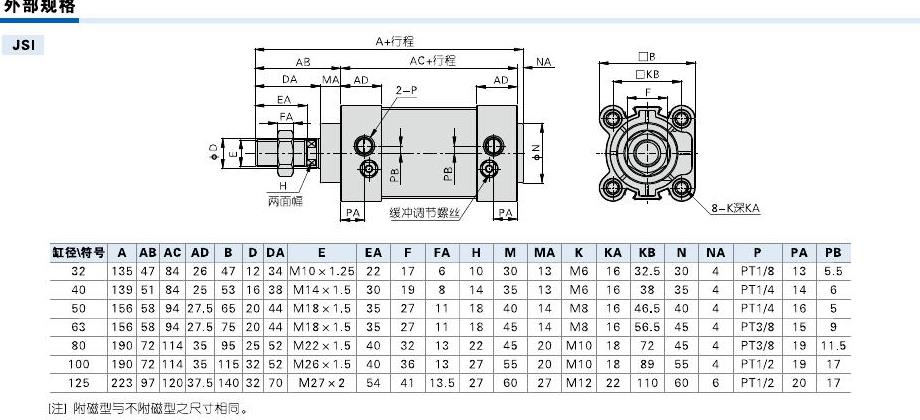

| Cushion / tolerances | Variable air cushion front and rear. Cushion stroke: 32/40=20; 50/63=20.5; 80/100=29; 125=33 mm. Stroke tolerance 0–250:+1/0; 251–1000:+1.5/0; 1001–1500:+2/0 mm. Magnetic/nonmagnetic dimensions same; exact JSID and JSIJ drawings and their A/E/FA/FB/G dimensions differ. |
| Standards / thrust / installation | Source identifies JIS cylinder and says shorter than ISO 15552 at equal bore; no universal ISO interchangeability guarantee. Match installed envelope, hole pattern, rod thread and both rod ends where applicable. Source push/pull pressure-area thrust is reference, not allowable side-load or payload. Avoid side load; start buffer adjustment at minimum before commissioning. |
Ordering code matching
Code format
JSI[bore]×[stroke][S][mount][G]Published JSI ordering fields; no seal suffixJSI80×50SFA-GJSI125×100S| ①Family / bore / stroke / adjustment | ②Magnet / mount / thread |
|---|---|
| 32 listed: 25/50/75/80/100/125/150/160/175/200/250/300/350/400/450/500 mm. Other bores add 600/700/800/900/1000 mm. Max.std column: 32=1000; 40/50=1200; 63/80/100/125=1500; max=1800 all. Those columns are not a discrete standard list; consult for nonstandard stroke. Only JSIJ has stroke-adjustment field: 10/20/30/40/50/75/100 mm. Adjustment above working stroke needs supplier confirmation. No H/N or other seal-selection field in this JSI ordering source; SAU/SC seal options are not listed for JSI. Material table is based on a certain bore and requires confirmation for the requested size. | 32: 1/8; 40/50: 1/4; 63/80: 3/8; 100/125: 1/2. Blank thread PT; G optional, no NPT. Blank without magnet, S with magnet. CMSE / DMSE sensors listed; sensing requires magnetic construction and sensor is not automatically included. Two sensor grooves on two sides. JSI blank/LB/FA/FB/CA/CB/CR/TC. JSID/JSIJ blank/LB/FA/TC only. TC used with TCM1/TCM2 accessories; those are not complete-cylinder mount suffixes. CR cannot be used alone: combine CB. Accessory part codes include F-JSI/F-SI/F-SAI; accessory prefixes vary by bore and configuration; check the matching table. |
If the label is incomplete, send the readable parts together with a photo.
JSI80×50SFA-G①Family / bore / stroke / adjustment
32 listed: 25/50/75/80/100/125/150/160/175/200/250/300/350/400/450/500 mm. Other bores add 600/700/800/900/1000 mm. Max.std column: 32=1000; 40/50=1200; 63/80/100/125=1500; max=1800 all. Those columns are not a discrete standard list; consult for nonstandard stroke. Only JSIJ has stroke-adjustment field: 10/20/30/40/50/75/100 mm. Adjustment above working stroke needs supplier confirmation. No H/N or other seal-selection field in this JSI ordering source; SAU/SC seal options are not listed for JSI. Material table is based on a certain bore and requires confirmation for the requested size.
②Magnet / mount / thread
32: 1/8; 40/50: 1/4; 63/80: 3/8; 100/125: 1/2. Blank thread PT; G optional, no NPT. Blank without magnet, S with magnet. CMSE / DMSE sensors listed; sensing requires magnetic construction and sensor is not automatically included. Two sensor grooves on two sides. JSI blank/LB/FA/FB/CA/CB/CR/TC. JSID/JSIJ blank/LB/FA/TC only. TC used with TCM1/TCM2 accessories; those are not complete-cylinder mount suffixes. CR cannot be used alone: combine CB. Accessory part codes include F-JSI/F-SI/F-SAI; accessory prefixes vary by bore and configuration; check the matching table.
JSI aluminium-profile cylinders without external tie rods, single-rod double-acting, bores 32/40/50/63/80/100/125 mm. Confirm original code, published stroke, mount, magnet and PT/G thread; send quantity and destination for quotation.
JSI aluminium-profile cylinders, single-rod double-acting, bores 32/40/50/63/80/100/125 mm. Confirm original code, published stroke, mount, magnet and PT/G thread; send quantity and destination for quotation. JSI blank/LB/FA/FB/CA/CB/CR/TC. JSID/JSIJ blank/LB/FA/TC only. TC used with TCM1/TCM2 accessories; those are not complete-cylinder mount suffixes. CR cannot be used alone: combine CB. Accessory part codes include F-JSI/F-SI/F-SAI; accessory prefixes vary by bore and configuration; check the matching table.
JSI
JSI Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
