AirTAC JSIJ Double-Rod Adjustable-Travel Cylinder
JSIJ is the double-rod, double-acting JSI configuration with adjustable travel. Confirm bore, stroke, adjustable travel, magnetic option and installed interfaces before RFQ.
For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.
Match a JSI model code
Enter the code from the label. Case, spaces, ×/x, and ordinary hyphens work.
JSIJStandard Cylinders
Product image reserved
The matching image will be added after model verification.
Part of the JSI Series family.
View family overview →Ordering code matching
Match each code segment
Code format
JSIJ [bore] × [stroke]-[adjustable travel] [S]Published JSI-family code layoutJSIJ 80 × 50-20 S| ①Model | ②Bore (mm) | ③Stroke | ④Adjustable travel | ⑤Magnetic option | ⑥Mounting / port thread |
|---|---|---|---|---|---|
| JSIJ: Double-rod configuration with adjustable travel | 32, 40, 50, 63, 80, 100, 125 | Specify the required working stroke. | 10, 20, 30, 40, 50, 75, or 100 mm. | S: magnetic option where required. | JSIJ: blank, LB, FA, or TC; blank thread is PT and G is optional. |
Technical reference
Drawing and key data

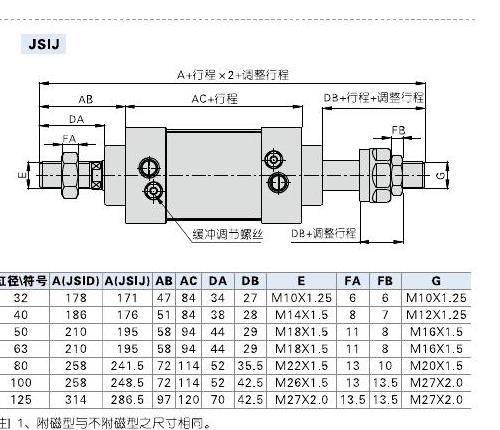

Installation drawing
- Confirm the double-rod JSIJ adjustable-travel configuration
- Compare bore, stroke and adjustable travel with the installed cylinder
- Check both rod ends and the installed clearance
Key data
Model patterns
- JSIJ
- JSIJ 80 × 50-20 S
Reference details
- Family: JSI standard cylinder family
- Configuration: Double-rod configuration with adjustable travel
- Published bores: 32, 40, 50, 63, 80, 100, 125 mm
- Reference drawing: JSIJ exterior drawing, PDF page 3
Quick check
What distinguishes JSIJ in the JSI family?
Double-rod, double-acting configuration with adjustable travel; the adjustment value is part of the selection.
JSIJ
Include this series in a project RFQ
JSIJ Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
