AirTAC SAUD Double-Rod Double-Acting Cylinder
SAUD is the double-rod, double-acting configuration in the SAU family. Check both rod ends and installed clearance. Confirm the complete code, bore, stroke, options and installed...
For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.
Match a SAU model code
Enter the code from the label. Case, spaces, ×/x, and ordinary hyphens work.
SAUDStandard Cylinders
Product image reserved
The matching image will be added after model verification.
Part of the SAU Series family.
View family overview →Ordering code matching
Match each code segment
Code format
SAUD [bore] × [stroke] [S]Published SAU-family code layoutSAUD 50 × 50 S| ①Model | ②Bore (mm) | ③Stroke | ④Options |
|---|---|---|---|
| SAUD | 32, 40, 50, 63, 80, 100 | Specify the required working stroke. | S magnetic option where required. |
Technical reference
Drawing and key data

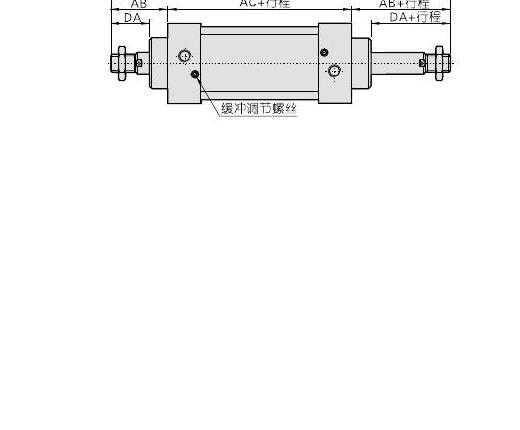

Installation drawing
- Confirm the double-rod SAUD configuration
- Compare both rod ends, bore, stroke and installed clearance

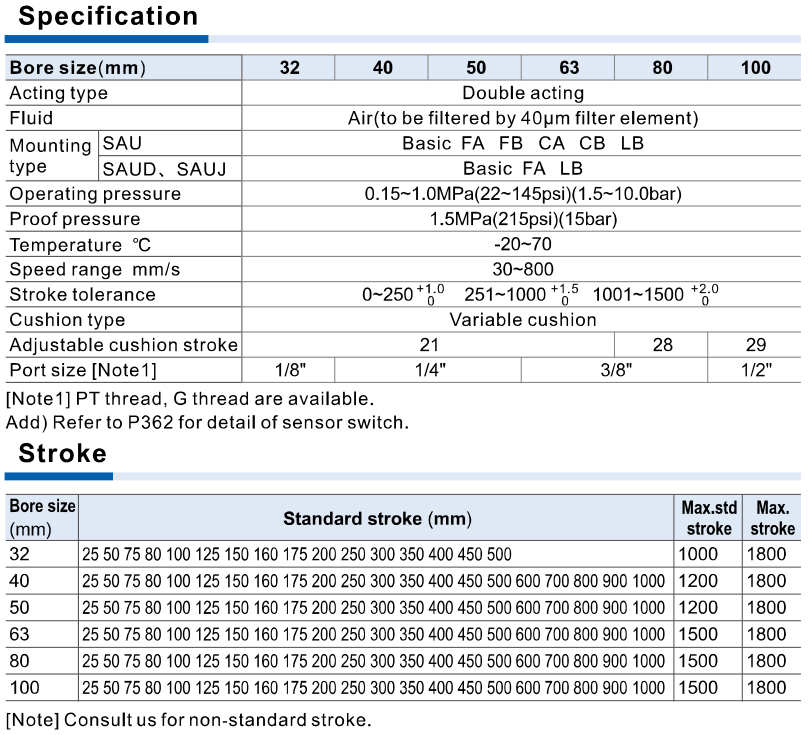

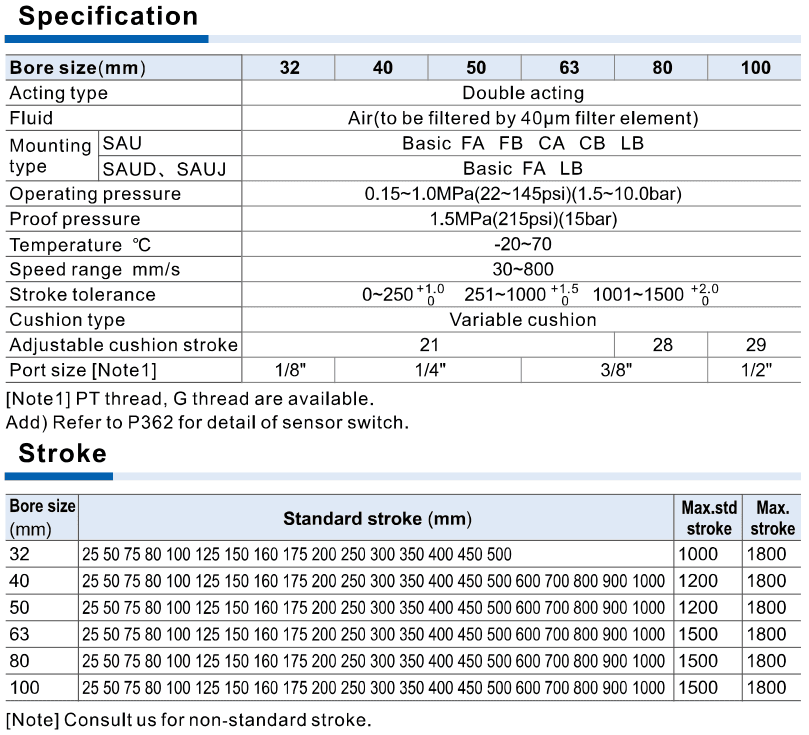

Key data
Model patterns
- SAUD
- SAUD 50 × 50 S
Reference details
- Family: SAU standard cylinder family
- Configuration: SAUD
- Published bores: 32, 40, 50, 63, 80, 100 mm
- Reference drawing: SAUD exterior drawing, PDF page 3
Quick check
What distinguishes SAUD in the SAU family?
SAUD is the double-rod, double-acting configuration in the SAU family. Check both rod ends and installed clearance.
SAUD
