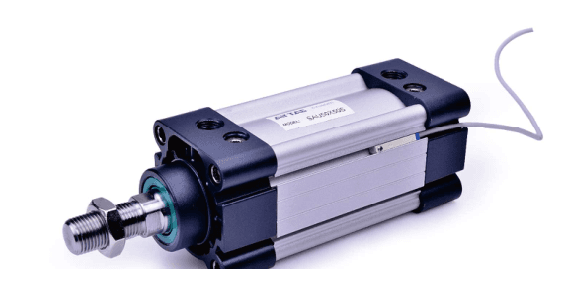

Standard single-rod, no-tie-rod cylinder built to AirTAC enterprise standard. Send full code, label or installation drawing with quantity and destination for quotation.
Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.
Choose a type; send a model or photo if unsure.
SAU
Profile Standard Cylinders
SAUD
Double-Rod Profile Cylinders
View details →SAUJ
Adjustable-Stroke Profile Cylinders
View details →SAUF
Profile Cylinders with Integrated Valve
View details →Send the model, quantity and destination. For multiple items, attach a parts list or BOM.
Match an SAU cylinder model

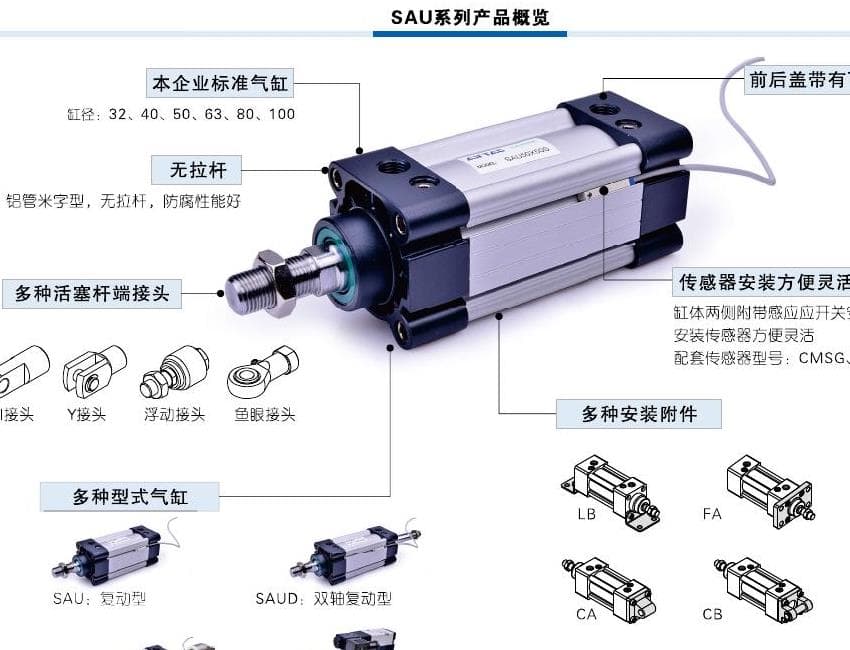

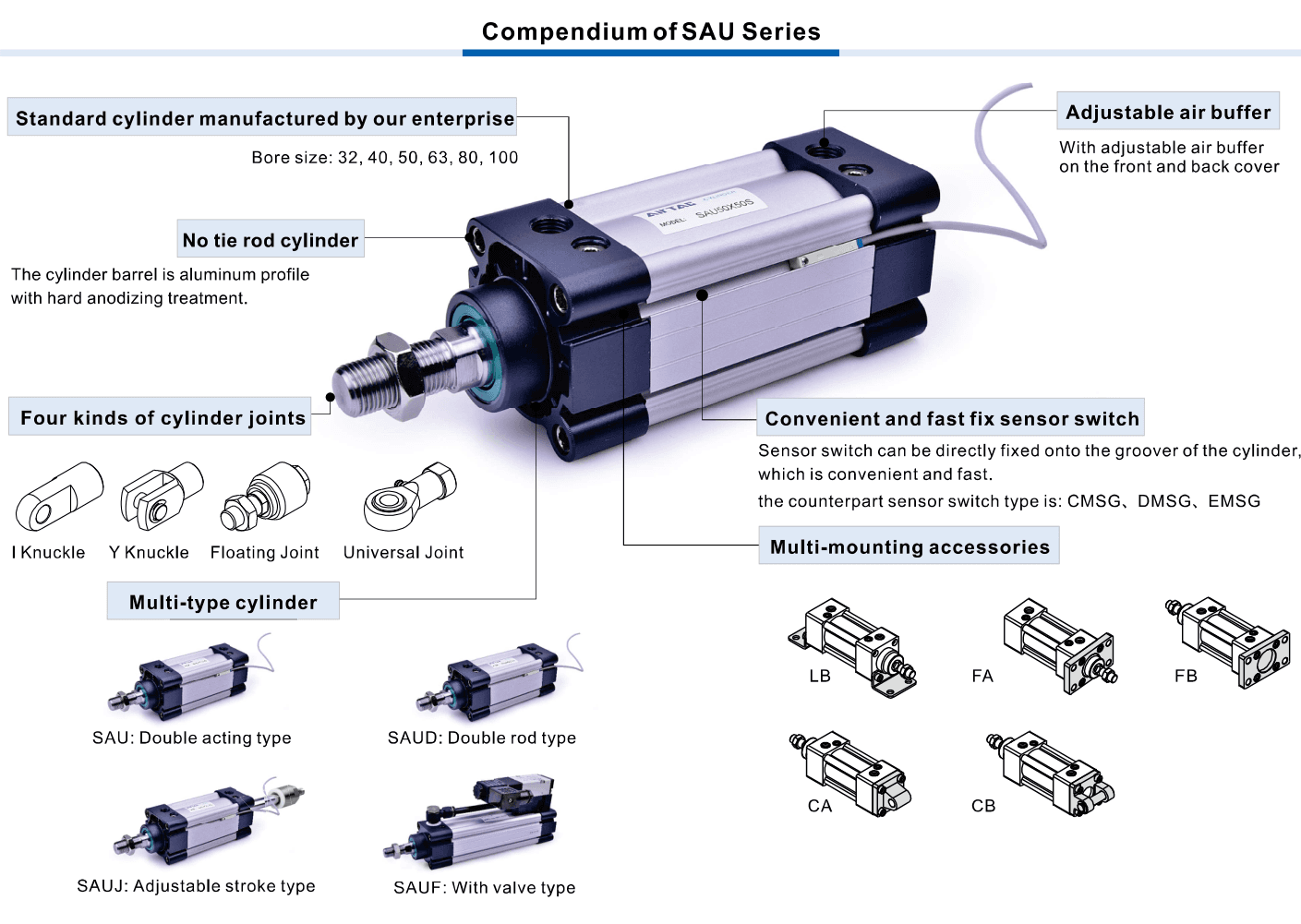

AirTAC SAU official family overview
Helpful for Model Matching:
| Cylinder pressure / proof | 0.15–1.0 MPa operating; 1.5 MPa proof. Proof is not working pressure. |
| Medium / temperature / speed | 40 μm filtered air; −20–70°C; 30–800 mm/s; double acting; adjustable pneumatic cushion. |
| Cylinder ports | 32: 1/8; 40/50: 1/4; 63/80: 3/8; 100: 1/2. Blank PT / optional G; no NPT. |
| Rod end | 32: M10×1.25; 40: M12×1.25; 50/63: M16×1.5; 80/100: M20×1.5. Rod-end thread is not air port. |
| Cushion stroke | 32/40/50/63: 21; 80: 28; 100: 29 mm; separate from working stroke. |
| Magnet / sensors | Blank without magnet; S with magnet. CMSG / DMSG / EMSG separately selected, magnetic cylinders only. Magnet/non-magnet dimensions same. |
| Standard / fit | AirTAC enterprise standard profile cylinder without tie rods, shorter than ISO15552 at same bore; do not describe it as ISO15552 or assume interchangeability. Compare mounting, length, rod end and air port. |
| Stroke tolerance | 0–250: +1/0; 251–1000: +1.5/0; 1001–1500: +2/0 mm. No extrapolation above 1500. |
| Accessories | Mounting accessories same as SC, exact F-SC bore codes in official table. LB and rod joints carbon steel, FA/FB aluminium alloy, CA/CB cast steel. SAI TC/FTC mounting options do not apply; bracket materials vary by type. |
| Thrust / load | Published thrust is N at pressure and push/pull effective area, not payload kg. Check load, side-load avoidance and cushion. |
| Bore / enumerated strokes | 32/40/50/63/80/100. 25/50/75/80/100/125/150/160/175/200/250/300/350/400/450/500 mm; bore32 stops500; bores40–100 also600/700/800/900/1000. |
| Maximum standard / maximum stroke | 32: 1000/1800; 40/50: 1200/1800; 63/80/100: 1500/1800 mm. Maximum standard exceeds enumerated list; unlisted/nonstandard stroke needs confirmation. |
| Seal / absent fields | Blank TPU; H Viton; N NBR. H high-temperature choice −10–150°C; not ordinary seals. No rod material A/B field published. |
| Mounting | Blank / LB / FA / FB / CA / CB. |
Ordering code matching
Code format
SAU50X100SMatch only fields published for this derivativeSAU50X100SSAU100X500SFAHG| 1Model | 2Bore / main stroke | 3Magnet | 4Mounting | 5Seal material | 6Thread |
|---|---|---|---|---|---|
| SAU functional construction | Use enumerated bore and stroke combinations; unlisted strokes require confirmation. | Blank without magnet; S with magnet. | Blank / LB / FA / FB / CA / CB. | Blank TPU; H Viton; N NBR. | Blank PT; G optional. No NPT field. |
If the label is incomplete, send the readable parts together with a photo.
SAU50X100S1Model
SAU functional construction
2Bore / main stroke
Use enumerated bore and stroke combinations; unlisted strokes require confirmation.
3Magnet
Blank without magnet; S with magnet.
4Mounting
Blank / LB / FA / FB / CA / CB.
5Seal material
Blank TPU; H Viton; N NBR.
6Thread
Blank PT; G optional. No NPT field.
Standard single-rod, no-tie-rod cylinder built to AirTAC enterprise standard. Send full code, label or installation drawing with quantity and destination for quotation.

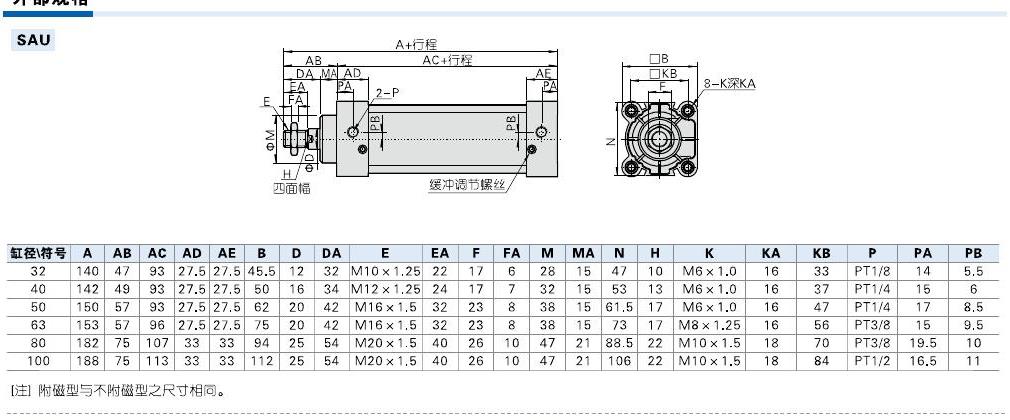

Standard single-rod, no-tie-rod cylinder built to AirTAC enterprise standard. Send full code, label or installation drawing with quantity and destination for quotation. Compare this derivative with its own drawing before replacement; Enterprise standard alone does not guarantee fit.
