AirTAC SAUJ Double-Rod Adjustable-Travel Cylinder
SAUJ is the double-rod, double-acting SAU configuration with adjustable travel. Confirm the complete code, bore, stroke, options and installed dimensions before RFQ.
For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.
Match a SAU model code
Enter the code from the label. Case, spaces, ×/x, and ordinary hyphens work.
SAUJStandard Cylinders
Product image reserved
The matching image will be added after model verification.
Part of the SAU Series family.
View family overview →Ordering code matching
Match each code segment
Code format
SAUJ [bore] × [stroke]-[adjustable travel] [S]Published SAU-family code layoutSAUJ 50 × 50-20 S| ①Model | ②Bore (mm) | ③Stroke | ④Options |
|---|---|---|---|
| SAUJ | 32, 40, 50, 63, 80, 100 | Specify the required working stroke. | Adjustable travel plus S magnetic option where required. |
Technical reference
Drawing and key data

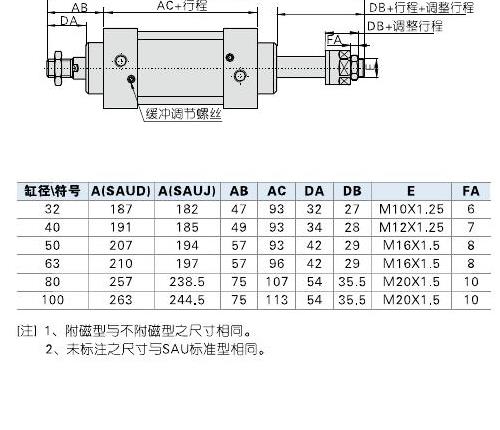

Installation drawing
- Confirm the double-rod SAUJ adjustable-travel configuration
- Compare bore, stroke and adjustable travel with the installed cylinder
Key data
Model patterns
- SAUJ
- SAUJ 50 × 50-20 S
Reference details
- Family: SAU standard cylinder family
- Configuration: SAUJ
- Published bores: 32, 40, 50, 63, 80, 100 mm
- Reference drawing: SAUJ exterior drawing, PDF page 3
Quick check
What distinguishes SAUJ in the SAU family?
SAUJ is the double-rod, double-acting SAU configuration with adjustable travel.
SAUJ
