AirTAC SGC Standard Aluminium-Tube Cylinder
SGC is the standard single-rod aluminium-tube configuration. Confirm the complete code, bore, stroke, material and installed dimensions before RFQ.
For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.
Match an SG / SGC model code
Case, spaces, ×/x, and ordinary hyphens work.
SGCStandard Cylinders
Part of the SG Series family.
View family overview →Ordering code matching
Match each code segment
Code format
SGC [bore] × [stroke] [S]Published SG-family code layoutSGC 200 × 100 S| ①Model | ②Bore (mm) | ③Stroke | ④Options |
|---|---|---|---|
| SGC | 125, 160, 200, 250 | Specify the required working stroke. | S magnetic option where required. |
Technical reference
Drawing and key data
Installation drawing
Dimension / installation drawing
- Overall dimensions and installed clearance
- Connection, port, or mounting points
- Relevant travel, thread, or interface dimensions
Key data
Model patterns
- SGC
- SGC 200 × 100 S

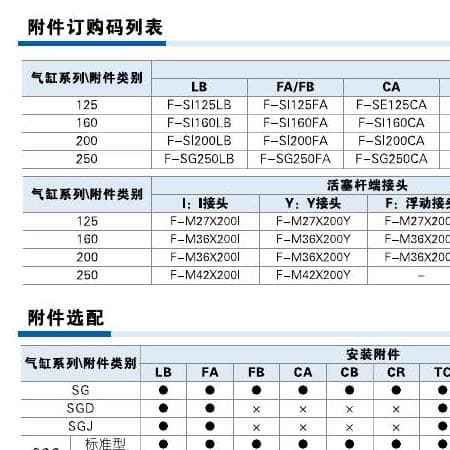

Reference details
- Family: SG / SGC ISO 15552 standard cylinder family
- Configuration: SGC

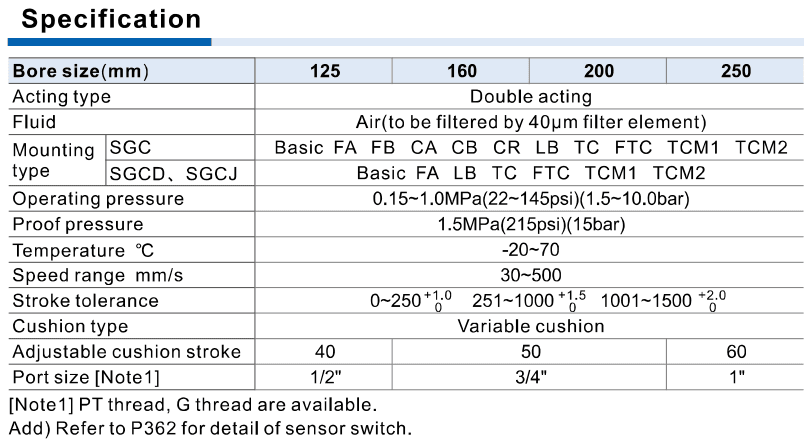

- Published bores: 125, 160, 200, 250 mm
- Reference drawing: SGC exterior drawing, PDF page 3
Quick check
What distinguishes SGC in the SG/SGC family?
SGC is the standard single-rod aluminium-tube configuration.
SGC
Include this series in a project RFQ
SGC Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
