Home/Product Series/AirTAC Sourcing/Standard Cylinders/SG

AirTAC SG / SGC ISO 15552 Standard Cylinders

SG and SGC are large-bore ISO 15552 standard-cylinder families. The source distinguishes steel-tube SG/SGD/SGJ and aluminium-tube SGC/SGCD/SGCJ configurations; select the structure and...

Request type
AirTAC originalModel matchingChina-source alternative
Start RFQSend photo / label

Match an SG / SGC model code

Case, spaces, ×/x, and ordinary hyphens work.

SGStandard Cylinders
SG and SGC standard cylinder family product reference
Verified product-family reference image.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

SG / SGC [bore] × [stroke] [S]Standard code layout
SGJ / SGCJ [bore] × [stroke]-[adjustable travel] [S]Adjustable-travel code layout
SG 200 × 100 SSGJ 200 × 100-20 S
①Structure and tube②Bore③Stroke④Options
SG / SGD / SGJ steel; SGC / SGCD / SGCJ aluminium125, 160, 200, 250 mmSpecify the required working stroke.J variants add adjustable travel; S is magnetic option.

Choose the SG family first

A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.

SG

AirTAC SG Standard Steel-Tube Cylinder

View details →

SGD

AirTAC SGD Double-Rod Steel-Tube Cylinder

View details →

SGC

AirTAC SGC Standard Aluminium-Tube Cylinder

View details →

SGCD

AirTAC SGCD Double-Rod Aluminium-Tube Cylinder

View details →

SGJ

AirTAC SGJ Adjustable-Travel Steel-Tube Cylinder

View details →

SGCJ

AirTAC SGCJ Adjustable-Travel Aluminium-Tube Cylinder

View details →

About SG

The SG/SGC document covers six structural configurations: steel-tube SG, SGD and SGJ, plus aluminium-tube SGC, SGCD and SGCJ. J variants add adjustable travel. S remains a magnetic option, not a separate page.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo

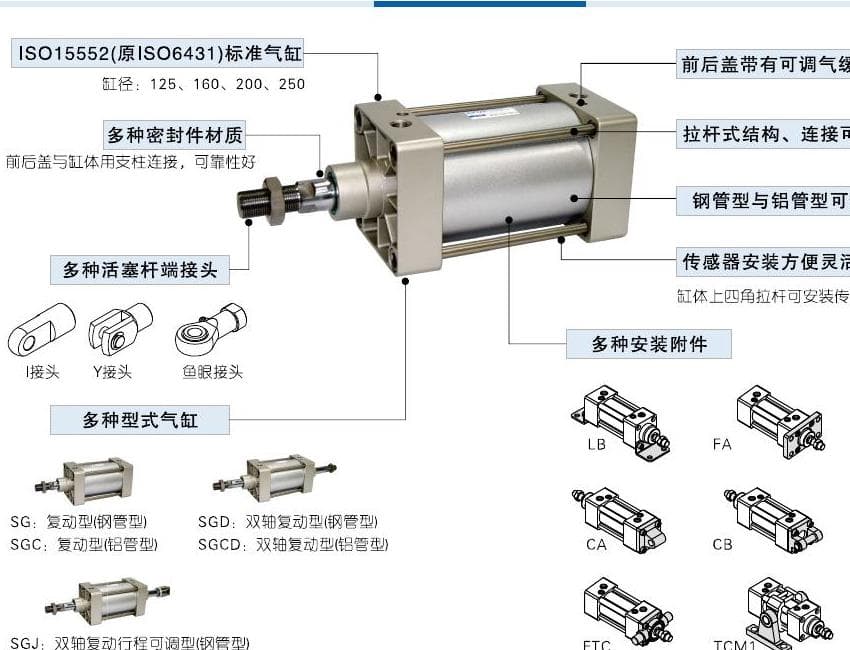

SG and SGC standard cylinder family product reference
  • Choose SG, SGD, SGC, SGCD, SGJ, or SGCJ
  • Full model code or readable cylinder label
  • Bore and working stroke
  • Steel or aluminium tube
  • For J variants: adjustable travel
  • Mounting, port, rod-end and installed clearance
Drawing reference

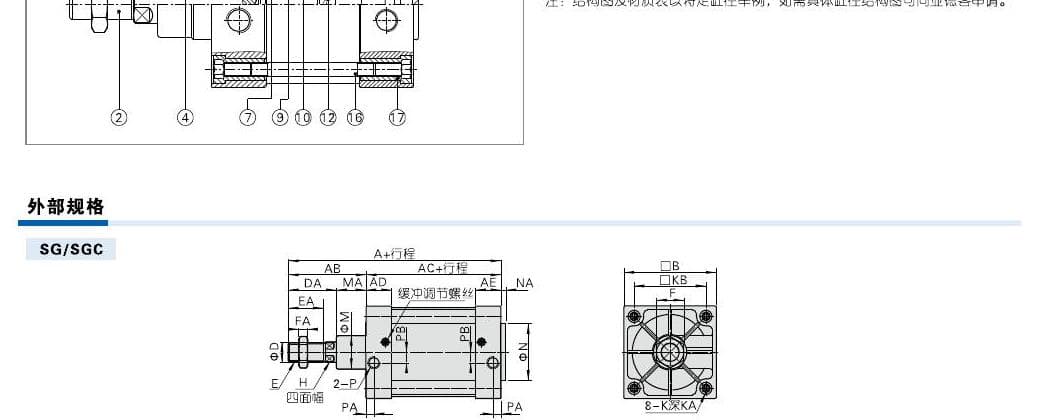

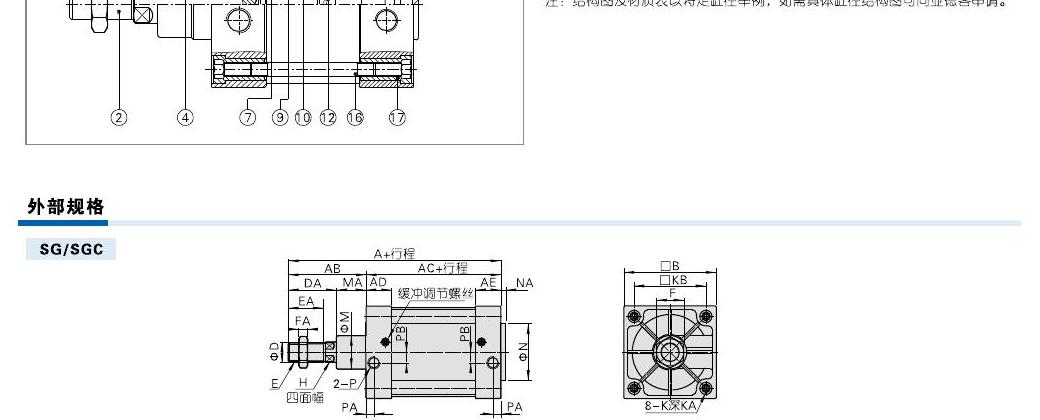

SG standard cylinder installation drawingOpen drawing
  • Select SG, SGD, SGC, SGCD, SGJ, or SGCJ
  • Compare bore, stroke, tube material, mounting, port and installed clearance
Key details for matching

Model patterns

  • SG
  • SGD
  • SGC
  • SGCD

Reference details

  • Published bores: 125, 160, 200, 250 mm
  • Standard: ISO 15552 (formerly ISO 6431)
  • Reference pages: PDF pages 1–3

Matching Questions

How do SG and SGC differ?

SG uses the steel-tube branch and SGC uses the aluminium-tube branch. SGD/SGCD are double-rod versions; SGJ/SGCJ add adjustable travel.

SG

Include this series in a project RFQ

SG Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.

Request a project quoteSend a parts list or BOM

Related Series

SG

AirTAC SG Standard Steel-Tube Cylinder

SGSG 200 × 100 S

SGD

AirTAC SGD Double-Rod Steel-Tube Cylinder

SGDSGD 200 × 100 S

SGC

AirTAC SGC Standard Aluminium-Tube Cylinder

SGCSGC 200 × 100 S
