AirTAC SGJ Adjustable-Travel Steel-Tube Cylinder
SGJ is the double-rod steel-tube configuration with adjustable travel. Confirm the complete code, bore, stroke, material and installed dimensions before RFQ.
For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.
Match an SG / SGC model code
Case, spaces, ×/x, and ordinary hyphens work.
SGJStandard Cylinders
Product image reserved
The matching image will be added after model verification.
Part of the SG Series family.
View family overview →Ordering code matching
Match each code segment
Code format
SGJ [bore] × [stroke]-[adjustable travel] [S]Published SG-family code layoutSGJ 200 × 100-20 S| ①Model | ②Bore (mm) | ③Stroke | ④Options |
|---|---|---|---|
| SGJ | 125, 160, 200, 250 | Specify the required working stroke. | Adjustable travel plus S magnetic option. |
Technical reference
Drawing and key data

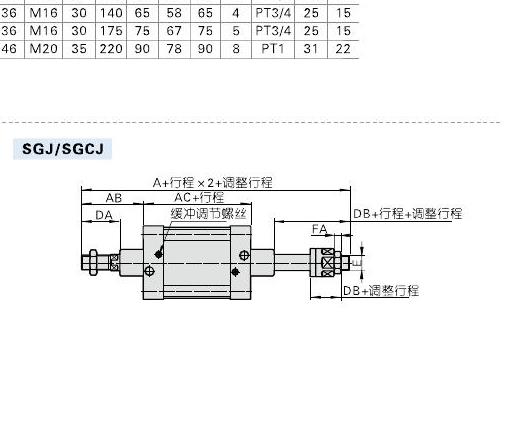

Installation drawing
- Overall dimensions and installed clearance
- Connection, port, or mounting points
- Relevant travel, thread, or interface dimensions
Key data
Model patterns
- SGJ
- SGJ 200 × 100-20 S
Reference details
- Family: SG / SGC ISO 15552 standard cylinder family
- Configuration: SGJ
- Published bores: 125, 160, 200, 250 mm
- Reference drawing: SGJ exterior drawing, PDF page 3
Quick check
What distinguishes SGJ in the SG/SGC family?
SGJ is the double-rod steel-tube configuration with adjustable travel.
SGJ
Include this series in a project RFQ
SGJ Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
