Fits when
- The machine requires a cylinder with a confirmed holding/locking function
- The installed label or drawing identifies BSAI or BSAID
AirTAC BSAI Series Locking Cylinders
BSAI is a locking-cylinder family derived from the ISO 15552 SAI standard-cylinder platform. Confirm the full code, bore, stroke, lock direction, release method, mounting and installed...
Request type
AirTAC originalModel matchingChina-source alternative
Match a BSAI model code
Enter the code from the label. Case, spaces, ×/x, and ordinary hyphens work.
BSAIStandard Cylinders
Ordering code matching
Match each code segment
Code format
BSAI / BSAID [bore] × [stroke] [S] [mounting] [PT/G]Published BSA locking-cylinder code layoutBSAI 80 × 50 S [PT]BSAID 80 × 50 S [PT]| ①Model | ②Bore (mm) | ③Stroke | ④Options | ⑤Port thread |
|---|---|---|---|---|
| BSAI: standard locking BSAID: double-rod locking | 32, 40, 50, 63, 80, 100, 125 | Confirm the published stroke table and installed cylinder. | S: magnetic option. Confirm lock direction, release method and mounting. | Blank: PT; G: G-thread option. |
Avoid a wrong match
- Locking function is a safety-relevant mechanical distinction; do not infer it from bore and stroke
- BSAI and BSAID have different rod arrangements
- S denotes the magnetic option, not a separate product family
Choose the BSAI family first
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
Read the model code
If the label is incomplete, send the readable parts together with a photo.
BSAI 80 × 50 S [PT]BSAI / BSAIDConfiguration
BSAI is standard locking; BSAID has a double-rod construction.
80Bore
Published bores: 32–125 mm.
50Stroke
Confirm against the published stroke table and installed cylinder.
SMagnet option
Blank: without magnet; S: with magnet.
[PT/G]Port thread
Blank: PT thread; G: G-thread option.
About BSAI
BSAI is a locking-cylinder family for applications where the cylinder must be held in position. Its lock direction and release method must be confirmed; a standard cylinder with the same bore and stroke is not an automatic substitute.
Product matching reference
Compare the photo, drawing, and measurable details first

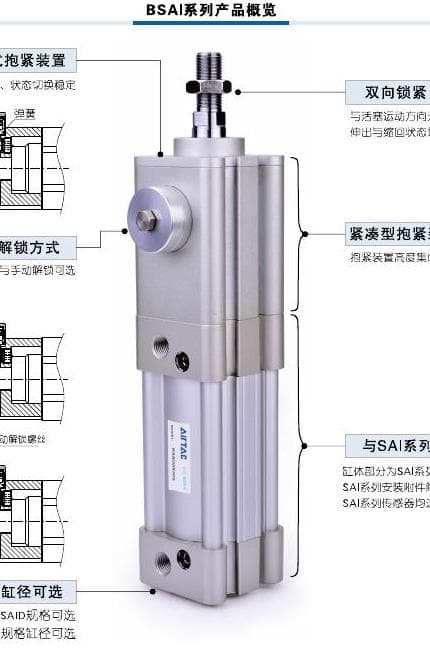

Identify from the photo
- Full BSAI or BSAID model code or readable label
- Bore and stroke
- Lock direction and pneumatic/manual release arrangement
- Single-rod or double-rod construction, mounting, port and installed clearance

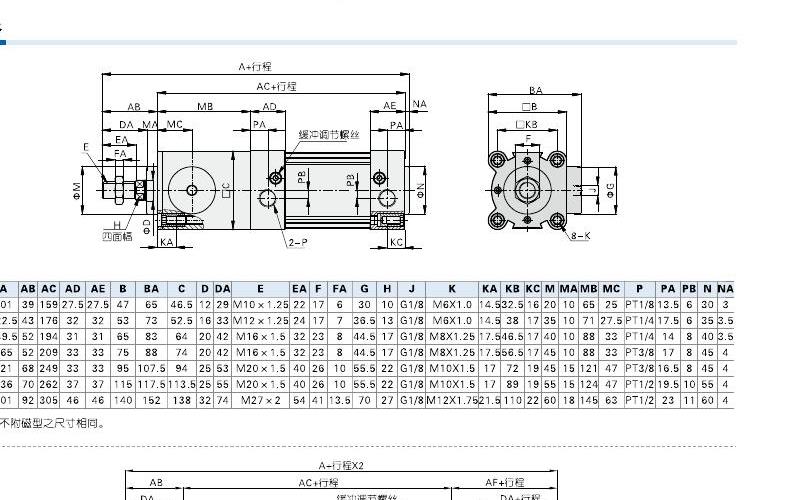

Drawing reference
- Confirm the lock direction and release method before matching
- Compare bore, stroke, mounting, port, rod-end, and installed clearance
- Use the matching BSAI or BSAID drawing for the installed configuration
Key details for matching
Model patterns
- BSAI
- BSAID
- BSAI 80 × 50 S
- BSAID 80 × 50 S
Reference details
- Reference platform: ISO 15552 standard cylinder platform
- Acting type: Double acting
- Published pressure range: 0.15–0.7 MPa (22–100 psi)
- Proof pressure: 1.5 MPa (215 psi)
- Operating temperature: −20 to 70 °C
- Reference drawings: BSAI and BSAID exterior drawings, PDF page 10
Matching Questions
What should be confirmed before sourcing a BSAI cylinder?
Confirm the full BSAI or BSAID code, bore, stroke, lock direction, release method, rod arrangement, mounting and ports. Send a label or drawing...
Can a standard ISO cylinder replace a BSAI locking cylinder?
Not automatically. The holding/locking function, release method and installed interfaces need separate confirmation before any replacement decision.
BSAI
Include this series in a project RFQ
BSAI Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
