AirTAC ACEJ Adjustable-Stroke Compact Cylinder
ACEJ is the adjustable-stroke ACE-family configuration. Send bore, normal stroke, adjustment value and rod-end details for an RFQ.
For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.
Match an ACE model code
Enter the code from the label. Spaces and ×/x formats work.
ACEJUltra-Thin Cylinders
Product image reserved
The matching image will be added after model verification.
Part of the ACE Series family.
View family overview →Ordering code matching
Match each code segment
Code format
ACEJ [bore] × [stroke]-[adjustment] [S] [B] [PT/G]Published code layout; optional positions depend on the selected configurationACEJ 20 × 30-30 S B [PT]| ①Model | ②Bore (mm) | ③Stroke | ④Options | ⑤Port thread |
|---|---|---|---|---|
| ACEJ: Adjustable stroke | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 mm | Required travel; compare the published stroke table and installed cylinder. | ACEJ includes a second adjustable-stroke value. S: magnetic option; B: male rod-end option. | Blank: PT; G: G thread option where shown in the code guide. |
Technical reference
Drawing and key data

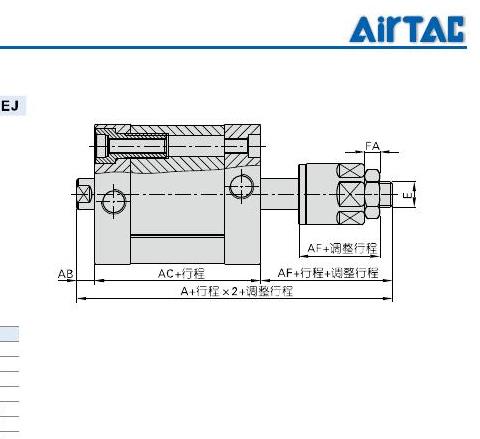

Installation drawing
- Adjustable-stroke configuration: compare it with the installed cylinder
- Compare bore, normal stroke, adjustment range, mounting holes, and rod-end thread
- Check the adjustment-side clearance in the installed assembly
Key data
Model patterns
- ACEJ
- Adjustable stroke
- ACEJ 20 × 30-30 S B [PT]
Reference details
- Family: ACE compact cylinder family
- Configuration: Adjustable stroke
- Published bores: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 mm
- Reference drawing: ACEJ exterior drawing, PDF page 5
Quick check
What distinguishes ACEJ in the ACE family?
ACEJ includes a normal stroke and an adjustment value. Both values are required to identify the configuration.
ACEJ
Include this series in a project RFQ
ACEJ Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.
