Home/Product Series/AirTAC Sourcing/Ultra-Thin Cylinders/ACE
AirTAC sourcing reference•Ultra-Thin Cylinders
SERIESACE

AirTAC ACE Series Compact Cylinders

ACE configuration from the AirTAC ACE catalogue

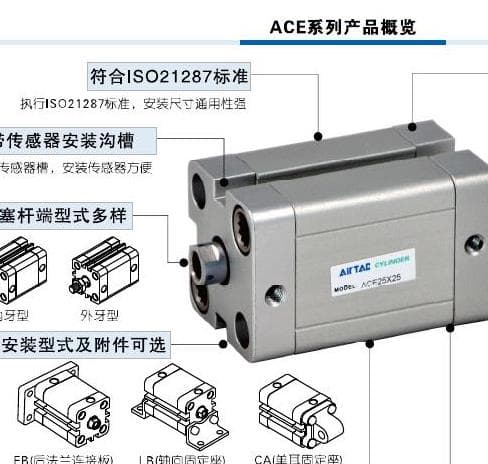

Series product image
Request a QuoteWhatsAppSend a Photo — We’ll Help Identify It

ACE is an ISO 21287 compact-cylinder family with double-acting, single-acting, double-rod,...

Official reference

Based on manufacturer documentation

Model support

For model confirmation

Parts lists

Code, photo, or BOM

Availability / lead time

By model and quantity

Sourcing route & inquiry details

ACE is an ISO 21287 compact-cylinder family with double-acting, single-acting, double-rod, adjustable-stroke and non-rotating guided configurations. Send a known model directly, or start with a label or photo.

Know your model? Send it with the quantity for a quote. Not sure? Start with a photo, label or description. We help identify the model and clarify availability and lead time. Mixed parts lists are welcome too.

Request type
AirTAC originalModel matchingChina-source alternative

Find your ACE type

Choose a type; send a model or photo if unsure.

ACE

Double-acting compact cylinder

View details →

ASE

Single-acting, push type

View details →

ATE

Single-acting, pull type

View details →

ACED

Double-rod compact cylinder

View details →

ACEJ

Adjustable-stroke compact cylinder

View details →

TACE

Non-rotating with yoke

View details →

TACED

Double rod, non-rotating with yoke

View details →
Request a QuoteSend a Photo — We’ll Help Identify It →

Send the model, quantity and destination. For multiple items, attach a parts list or BOM.

Match an ACE model code

Enter the code from the label. Spaces and ×/x formats work.

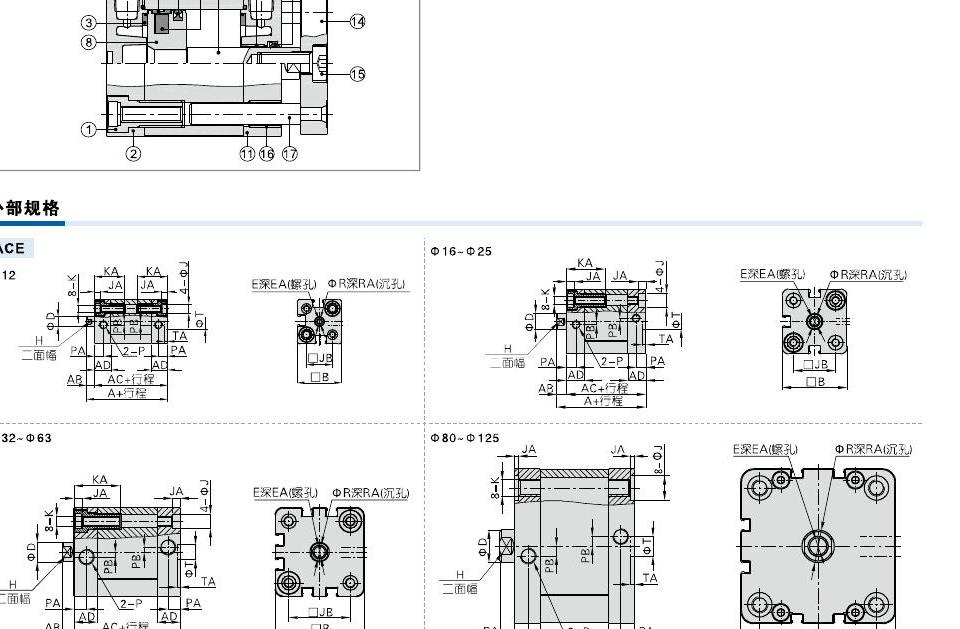

Drawings & dimensions

Installation Drawings & Technical Specifications

Compare installed dimensions
Full View

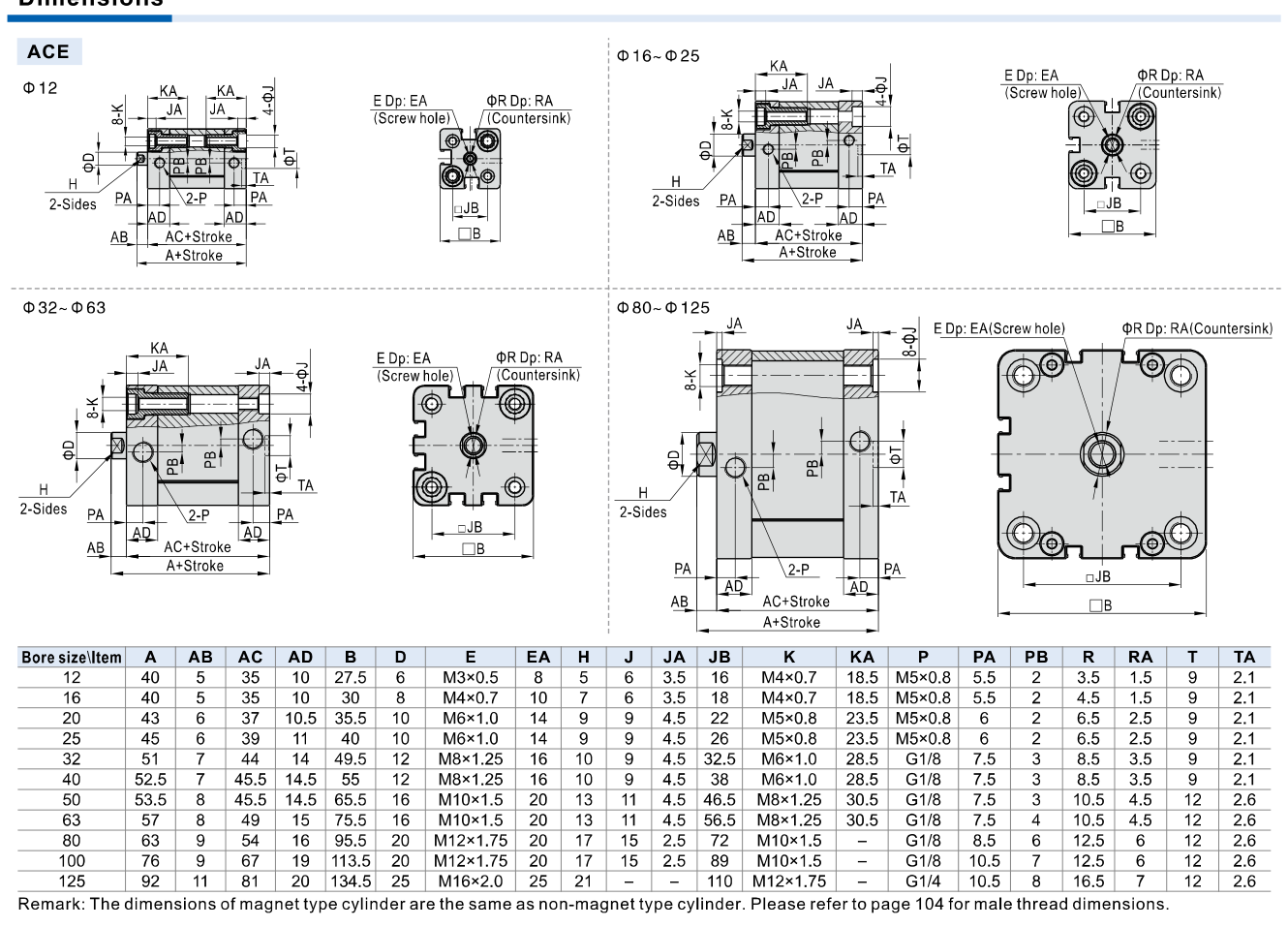

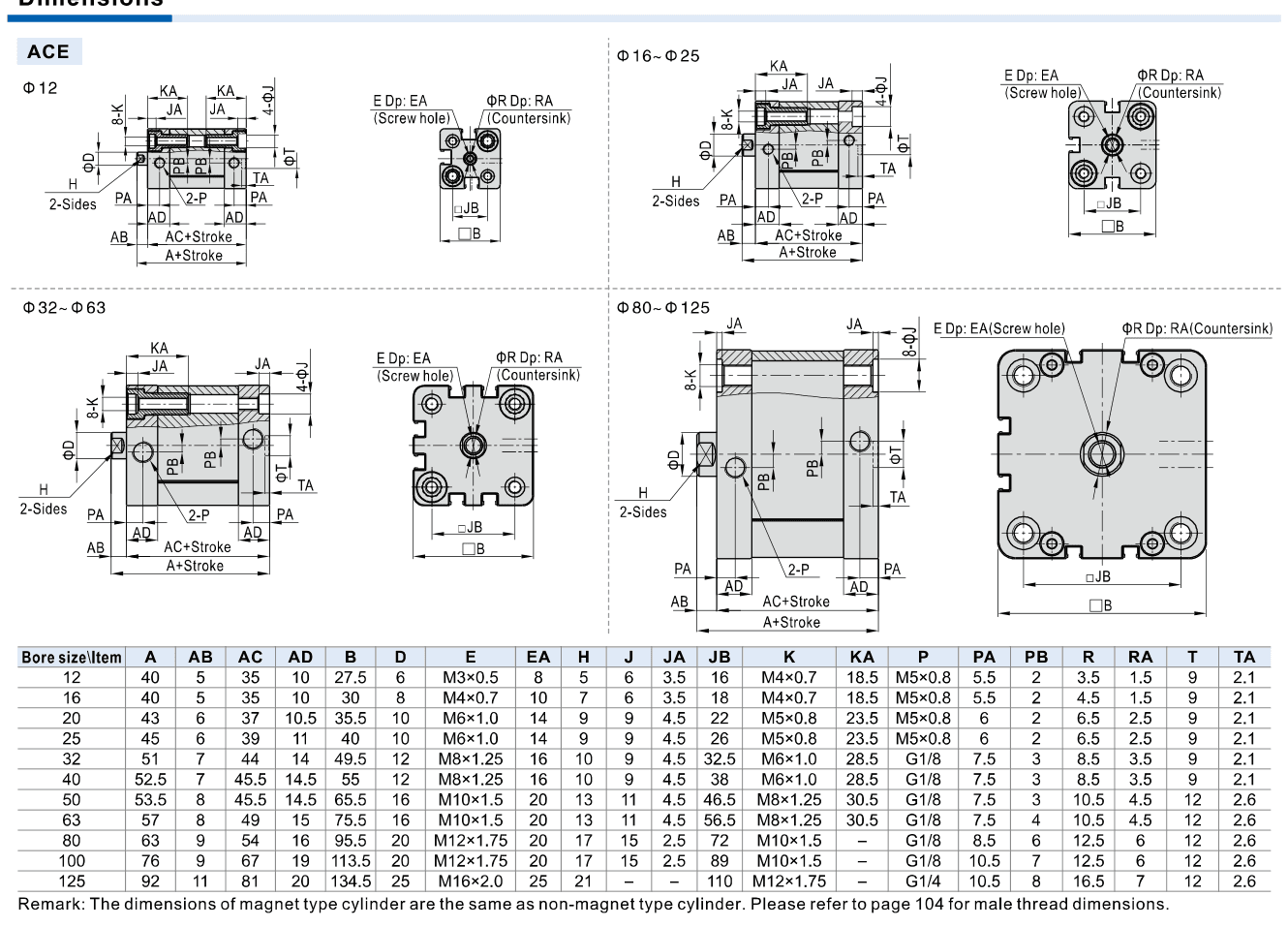

ACE standard installation drawing and dimension tableClick to open full drawing ↗

ACE standard installation drawing and dimension table

Helpful for Model Matching:

  • Full ACE-family model code or cylinder label
  • Required motion, bore, and stroke
  • Rod-end, mounting, and installed clearance
  • Magnet option, sensor requirement, and port thread where applicable
  • Compare the matching configuration, bore, stroke, mounting and installed clearance
  • Send a label or installed photo if the model is incomplete

Catalogue Technical Specifications

AirTAC reference data
Bore sizesACE: 12–125 mm; other members: 12–100 mm (listed sizes)
Operating pressureDouble acting: 0.15–1.0 MPa; single acting: 0.2–1.0 MPa
Proof pressure1.5 MPa (215 psi)
Working mediumAir filtered by a 40 μm filter element
Temperature−20 to +70 °C
Speed rangeDouble acting: 30–500 mm/s; single acting: 50–500 mm/s
CushionBumper
Port sizesØ12–25: M5×0.8; Ø32–100: 1/8; Ø125: 1/4. PT standard; G available.
Standard strokesCommon double acting: 5–300 mm by bore. ASE/ATE: Ø12: 5/10 mm; Ø16–100: 5/10/15/20/25 mm. TACE/TACED: 5–100 mm by bore. See stroke table.
Stroke tolerance≤100 mm: +1.0/0 mm; >100 mm: +1.5/0 mm
Mounting standardISO 21287; compare applicable drawing for replacement fit
Common Model Codes & Configurations:Useful for an RFQ
ACEASEATEACED

Send the model code, quantity and destination, or attach a parts list.

WhatsAppQuote BOM
Technical reference & selection notes

Ordering Codes, Fit Verification & Specifications

Specifications, installation dimensions, and ordering-code notes.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

ACE / ASE / ATE / ACED [bore] × [stroke] [S] [B] [mount] [G]Options depend on model and bore; blank thread means PT
ACEJ [bore] × [stroke]-[adjustment] [S] [B] [mount] [G]Adjustable stroke: 10, 20, 30, 40, 50, 75 or 100 mm
TACE / TACED [bore] × [stroke] [S] [mount] [G]Non-rotating with yoke; female rod thread only in the guide
ACE 20 × 30 S B [PT]ACED 20 × 30 S B [PT]ACEJ 20 × 30-30 S B [PT]
①Model②Bore (mm)③Stroke④Options⑤Mounting⑥Thread
ACE: double acting; ASE: push; ATE: pull; ACED: double rod; ACEJ: adjustable stroke; TACE: non-rotating with yoke; TACED: double rod, non-rotating with yokeACE: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 mm. Other members: listed sizes 12–100 mm.Compare the required travel with the published stroke table and installed cylinder.ACEJ adjustment: 10, 20, 30, 40, 50, 75, 100 mm. S: magnet. B: male rod thread on common types; TACE/TACED: female thread only.Blank: no accessories. Common types: FA/FB/LB/CA/CB/CR/FTC/SDB; ACED: FA/FB; TACE/TACED: FA/FB/CA/CB/CR/FTC. Depends on bore. CR requires CB; SDB requires CA; FTC requires TCM2.Blank: PT; G: G-thread option where shown in the published guide.

Fits when

  • A compact cylinder is required where installation space is limited
  • The required motion and installed interface can be identified from a code, label, photo, or drawing

Avoid a wrong match

  • ASE and ATE have different working directions and single-acting stroke limits.
  • TACE and TACED are non-rotating cylinders with a yoke, not multi-position cylinders.
  • Only standard ACE includes 125 mm in the ordering-code bore list; other members stop at 100 mm.
  • Mounting depends on model and bore; CR requires CB, SDB requires CA, FTC requires TCM2.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

ACE 20 × 30 S B [PT]

ACEFamily

Double-acting ACE-family configuration. Use the other family codes where the motion or construction differs.

20Bore

Cylinder bore in mm. Published ACE-family bore availability depends on the configuration.

30Stroke

Required travel in mm. Compare the installed cylinder or drawing.

S / BOptions

S: magnet; B: male rod thread on common types. TACE/TACED: female rod thread only.

[PT/G]Port thread

Blank indicates PT; G is an option where shown in the published code guide.

About ACE

ACE is a compact-cylinder family for limited installation space. Its family members have different motion or mechanical arrangements, so the code and function come before a body-size comparison.

Matching Questions

Which ACE details should be included in an RFQ?

Send the full ACE-family code where available, together with bore, stroke, required motion, rod-end or mounting details, and a photo or drawing if the label is incomplete.

Are ACE-family variants interchangeable by body size alone?

No. Single-acting, double-rod, adjustable-stroke, and non-rotating with yoke versions have functional or mechanical differences. Confirm the family code and installed interface before comparing dimensions.

ACE

Include this series in a project RFQ

ACE Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.

Request a project quoteWhatsAppSend a parts list or BOM
