AirTAC ATE Single-Acting Pull Compact Cylinder

ATE is the single-acting pull version in the ACE compact-cylinder family. Send the code or label with working direction, bore and stroke for an RFQ.

Send model or BOM Send photo / label

For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.

Match an ACE model code

Enter the code from the label. Spaces and ×/x formats work.

ATEUltra-Thin Cylinders

Product image reserved

The matching image will be added after model verification.

No model-specific product image is available yet.

Part of the ACE Series family.

View family overview →

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

ATE [bore] × [stroke] [S] [B] [PT/G]Published code layout; optional positions depend on the selected configuration

ATE 20 × 30 S B [PT]

①Model	②Bore (mm)	③Stroke	④Options	⑤Port thread
ATE: Single acting, pull type	12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm	Required travel; compare the published stroke table and installed cylinder.	S: magnetic option; B: male rod-end option. Blank positions follow the published code guide.	Blank: PT; G: G thread option where shown in the code guide.

Technical reference

Drawing and key data

Product reference

Product photo / package / label

Full ATE code or cylinder label
Bore and working stroke
Required working direction and return behavior
Magnet option and sensor requirement where applicable

Installation drawing

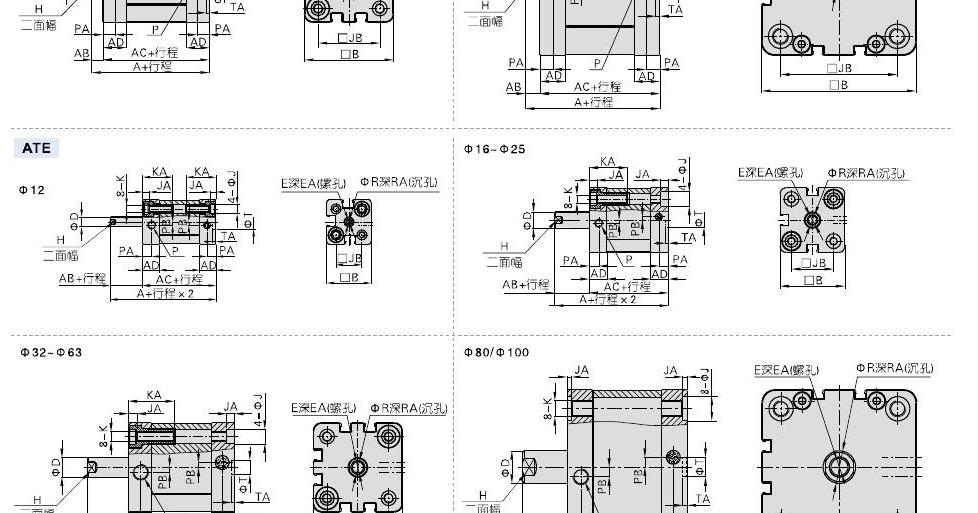

ATE single-acting pull compact cylinder drawing

Open drawing

Single-acting pull motion: compare it with the installed cylinder
Compare bore, stroke, port position, mounting holes, and rod-end thread
Use the drawing for working direction and installed clearance

Key data

Model patterns

ATE
Single acting, pull type
ATE 20 × 30 S B [PT]

Reference details

Family: ACE compact cylinder family
Configuration: Single acting, pull type
Published bores: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
Reference drawing: ATE exterior drawing, PDF page 4

Quick check

What distinguishes ATE in the ACE family?

ATE is used for single-acting pull motion. The required motion comes before a dimensional comparison with ASE or ACE.

ATE

Include this series in a project RFQ

ATE Add other models, quantities, photos, drawings, or a BOM. One request can cover several product groups.

Request a project quote Send a parts list or BOM
