AirTAC TACE Multi-Position Compact Cylinder
TACE is the multi-position member of the ACE compact-cylinder family. Send the complete code, required positions and installed dimensions for an RFQ.
For a quote, include the model code, quantity, and destination. A photo or label is useful when the code is incomplete.
Match an ACE model code
Enter the code from the label. Spaces and ×/x formats work.
TACEUltra-Thin Cylinders
Product image reserved
The matching image will be added after model verification.
Part of the ACE Series family.
View family overview →Ordering code matching
Match each code segment
Code format
TACE [bore] × [stroke] [S] [B] [PT/G]Published code layout; optional positions depend on the selected configurationTACE 20 × 30 S B [PT]| ①Model | ②Bore (mm) | ③Stroke | ④Options | ⑤Port thread |
|---|---|---|---|---|
| TACE: Multi-position | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm | Required travel; compare the published stroke table and installed cylinder. | S: magnetic option; B: male rod-end option. Blank positions follow the published code guide. | Blank: PT; G: G thread option where shown in the code guide. |
Technical reference
Drawing and key data

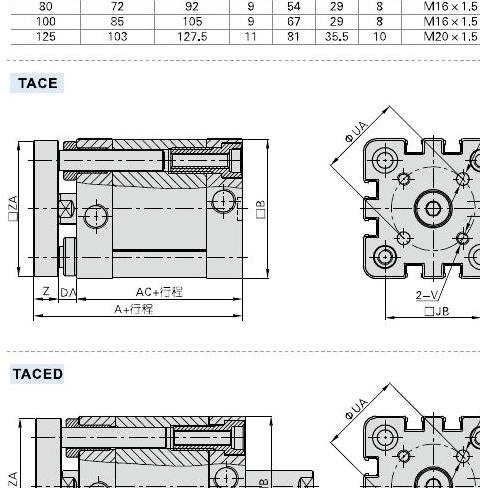

Installation drawing
- Multi-position configuration: check each required motion position
- Compare bore, travel, mounting holes, and installed clearance
- Use the full model label where the required position sequence matters
Key data
Model patterns
- TACE
- Multi-position
- TACE 20 × 30 S B [PT]
Reference details
- Family: ACE compact cylinder family
- Configuration: Multi-position
- Published bores: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
- Reference drawing: TACE exterior drawing, PDF page 5
Quick check
What distinguishes TACE in the ACE family?
TACE is a multi-position configuration, not a standard ACE body with a routine suffix. Confirm the required motion positions and interface.
TACE
