Choose the JCK family first
A similar body does not guarantee the same function. Confirm the function and interface first, then compare size and installed dimensions.
JCK
Horizontal clamp-arm position
JCKV
Vertical clamp-arm position
AirTAC JCK Welding Clamp Cylinders
JCK is a high-force welding clamp cylinder with a curved-toggle clamp mechanism. Confirm clamp-arm position, bore, opening angle, arm type, sensor, port thread and mounting interface...
Request type
AirTAC originalModel matchingChina-source alternative
JCKWelding Clamp Cylinders
Ordering code matching
Match each code segment

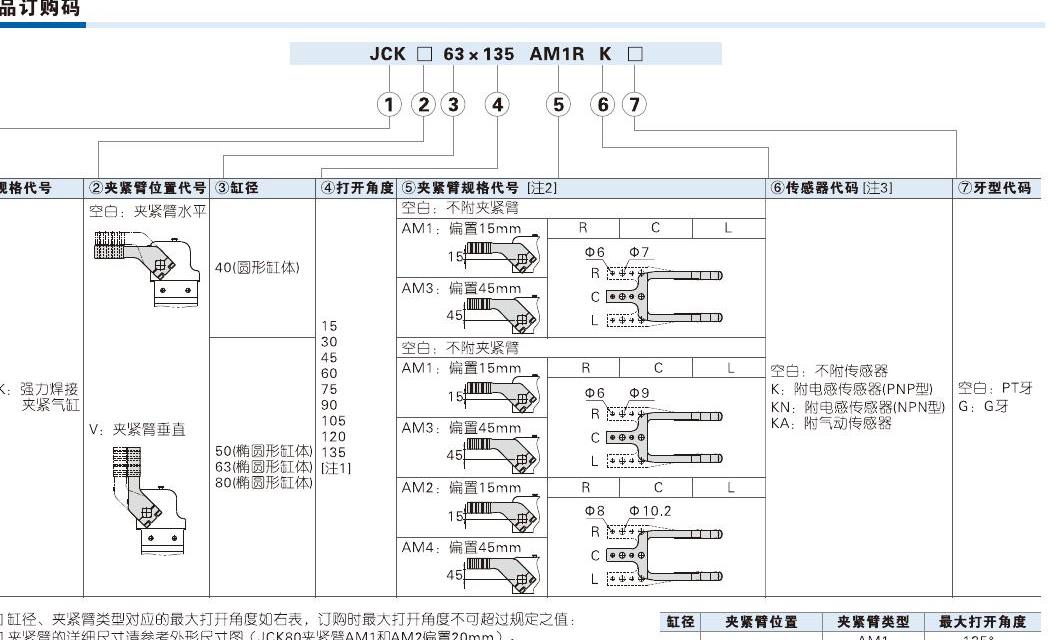

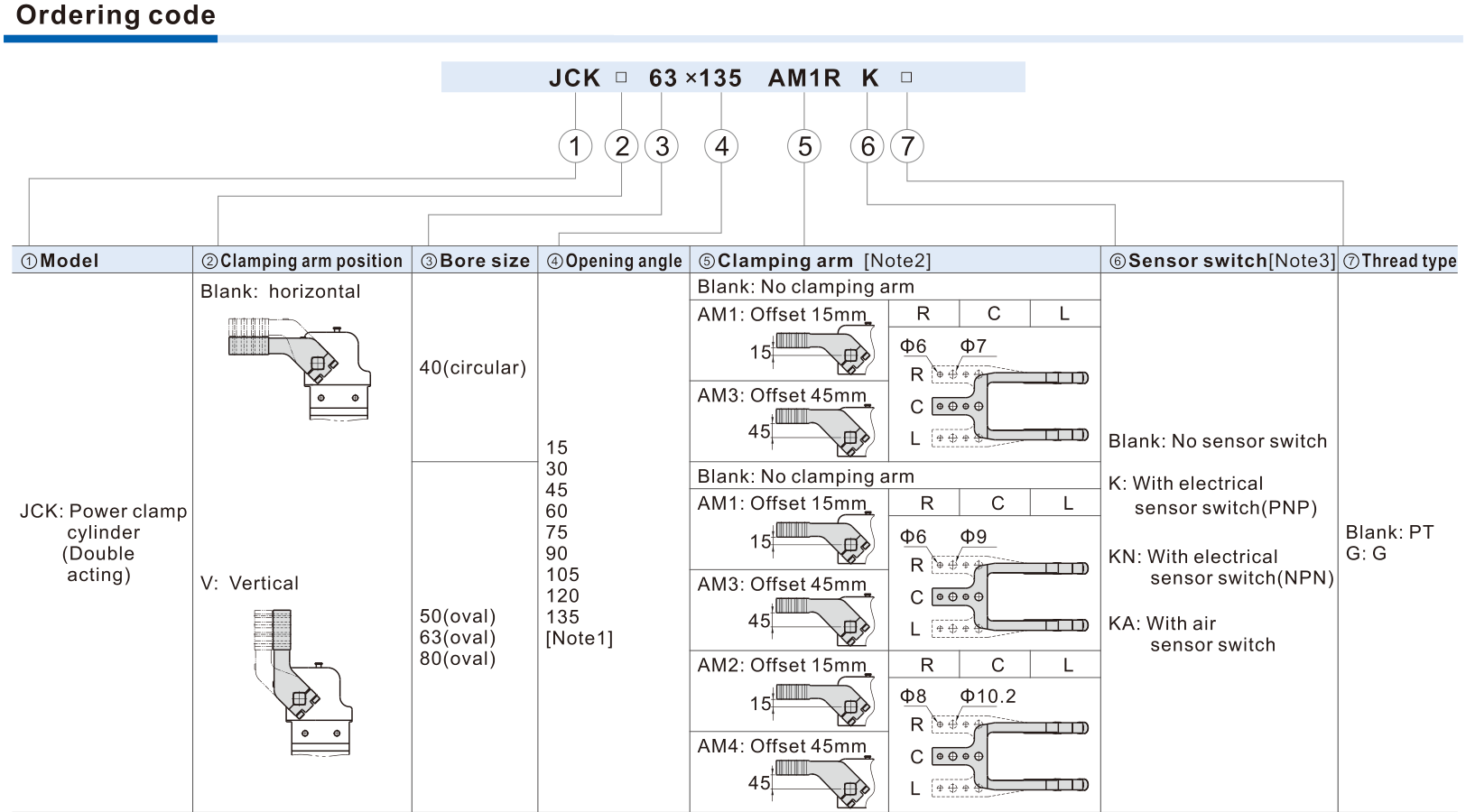

Code format
JCK / JCKV [bore] [cylinder size / opening angle] [AM arm] [sensor] [PT/G]Published JCK code layoutJCK 40 63 × 135 AM1R KJCKV 50 63 × 120 AM2 KAJCK 80 AM4 G| ①Arm position | ②Bore (mm) | ③Cylinder / opening angle | ④Clamp arm | ⑤Sensor | ⑥Port thread |
|---|---|---|---|---|---|
| JCK: horizontal; JCKV: vertical. | 40, 50, 63, 80 | Confirm the published cylinder-size and maximum-opening-angle combination. | AM1/AM2/AM3/AM4 with R/C/L arrangement as published. | Blank none; K PNP; KN NPN; KA pneumatic. | Blank PT; G G thread. |
Read the model code
If the label is incomplete, send the readable parts together with a photo.
JCK 40 63 × 135 AM1R K GJCK / JCKVSeries / arm position
JCK: horizontal arm position; JCKV: vertical arm position.
40Bore
Published bores: 40, 50, 63, 80 mm.
63 × 135Cylinder size / opening angle
Confirm the cylinder size and permitted opening angle from the source table.
AM1RClamp arm
AM1/AM3 and AM2/AM4 use different arm widths and hole patterns; R/C/L identify the published arm arrangement.
KSensor
Blank: no sensor; K: PNP; KN: NPN; KA: pneumatic sensor.
GPort thread
Blank: PT; G: G thread.

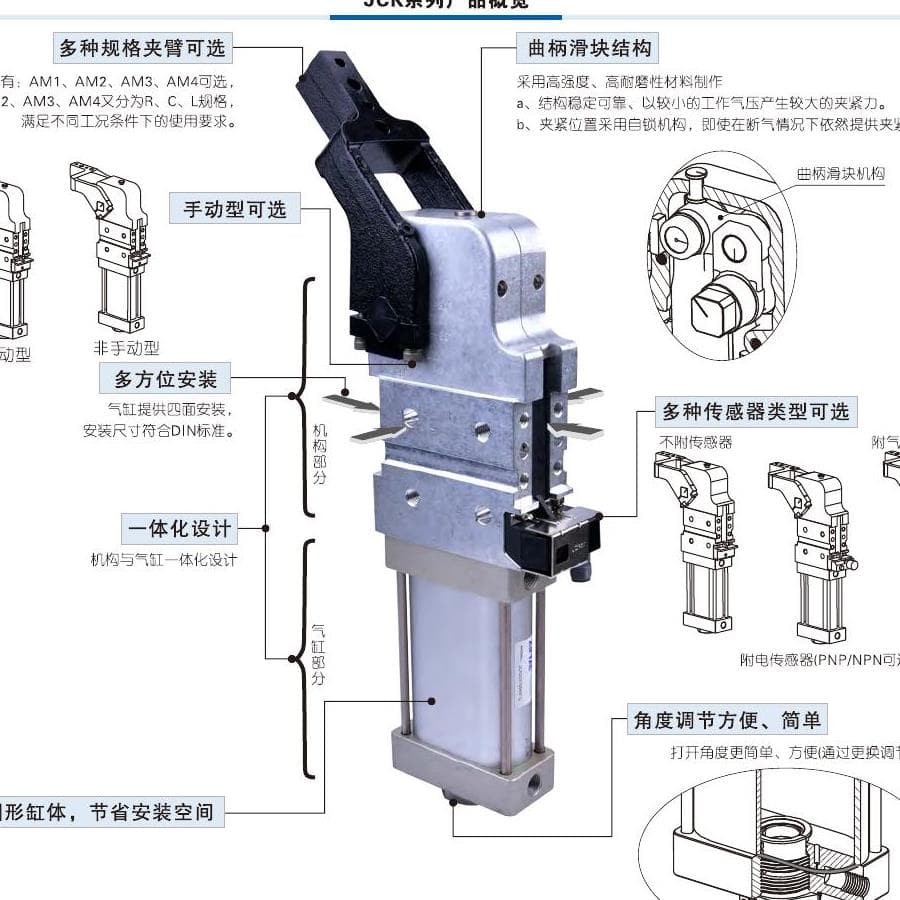

About JCK
JCK is a welding-clamp assembly, not a plain cylinder. Its curved-toggle mechanism is intended to maintain clamp force near the closed position. Match the arm position and geometry, opening angle, fixture interface and sensor arrangement together with the cylinder size.
Product matching reference
Compare the photo, drawing, and measurable details first
Identify from the photo
- Full JCK code or readable label
- Horizontal or vertical clamp-arm position
- Bore: 40, 50, 63, or 80 mm
- Required opening angle and clamp-arm geometry
- AM1/AM2/AM3/AM4 arm type, sensor type, port thread and mounting dimensions
Drawing reference
- Confirm horizontal or vertical clamp-arm position and the arm geometry
- Compare bore, opening angle, clamp-arm type, sensor, port thread and installed mounting dimensions
Key details for matching
Model patterns
- JCK
- JCK 40 63 × 135 AM1R K G
- JCKV 50 63 × 120 AM2 KA
- JCK80
Reference details
- Product type: High-force welding clamp cylinder with curved-toggle mechanism
- Published bores: 40, 50, 63, 80 mm
- Published output torque at 0.5 MPa: 120, 160, 380, 800 N·m by bore
- Published operating pressure: 0.3–0.8 MPa (43–116 psi)
- Published opening angles: 15°, 30°, 45°, 60°, 75°, 90°, 105°, 120°, 135°
- Reference pages: PDF pages 1–2
Matching Questions
Can a JCK welding clamp be matched by bore alone?
No. Horizontal or vertical arm position, clamp-arm type and hole pattern, opening angle, sensor arrangement and fixture mounting are material to the...
