Shape and connection
ShownShown on this page; not to scale.
PneuPart · CV · Model & quotation support
PneuPart CV inline vacuum ejector
Use compressed air through a Venturi nozzle to create vacuum near a cup or fixture. Match the nozzle, suction...
- Operating principle
- Compressed-air Venturi ejector; H high-vacuum and L high-flow members are separate performance references.
- Nozzle reference
- 0.5, 1.0, 1.5, 2.0, 2.5 and 3.0 mm catalogue sizes; exact supply version to confirm.
Choose a common size or send your requirement
Examples for an enquiry. Other sizes, colours and packaging can be requested; availability and lead time are confirmed in the quotation.
View model table & sizes (6)
| Model | Tube OD | Connection | Enquiry |
|---|---|---|---|
| CV05HS / CV05LS | Φ0.5 mm nozzle | Confirm supply / vacuum / exhaust ports | |
| CV10HS / CV10LS / CV10HR | Φ1.0 mm nozzle | Confirm supply / vacuum / exhaust ports | |
| CV15HS / CV15LS / CV15HR | Φ1.5 mm nozzle | Confirm supply / vacuum / exhaust ports | |
| CV20HS / CV20LS / CV20HR | Φ2.0 mm nozzle | Confirm supply / vacuum / exhaust ports | |
| CV25HS / CV25LS | Φ2.5 mm nozzle | Confirm supply / vacuum / exhaust ports | |
| CV30HS / CV30LS | Φ3.0 mm nozzle | Confirm supply / vacuum / exhaust ports |
Enter text or photo links here. Send photo files by email or WhatsApp.
Ask customer servicePneuPart · Technical documents
Drawing and configuration
The form schematic shows the selection features. Dimensional, port and installation drawings are supplied against the confirmed delivery version.
Dimensional drawing
By enquiryRequest for the confirmed size and port variant.
Selection / ordering drawing
By enquiryConfirm code, options and supply scope together.
Send the model code, a photo or existing mounting dimensions together; a complete model is not required to start confirmation.
Request drawingTypical performance & selection references
Use compressed air through a Venturi nozzle to create vacuum near a cup or fixture. Match the nozzle, suction connection and exhaust arrangement to the workpiece.
Typical references for selection, not a test certificate for every configuration. Tell us any special pressure, temperature, medium or certification requirement so customer service can confirm a suitable option.
Shape & connection guide
- Operating principle
- Compressed-air Venturi ejector; H high-vacuum and L high-flow members are separate performance references.
- Nozzle reference
- 0.5, 1.0, 1.5, 2.0, 2.5 and 3.0 mm catalogue sizes; exact supply version to confirm.
- Supply reference
- H/S reference 4.5 bar; R 3.5 bar where listed. 25/30 references use a 5 bar test point; do not unify all variants.
- Vacuum members
- H: high-vacuum reference around −88 to −91 kPa in reviewed tables; L: high-flow reference around −58 kPa. Values vary by model and test table.
- Options
- M silencer; CK adjustable pressure switch; DK adjustable magnetic switch; K2 supply solenoid valve.
- Electrical options
- Coil codes reference DC24V, DC12V, AC220V and AC110V; L/G lead direction and switch ratings are separate fields.
- Selection warning
- Summary flow and curve tables differ in the reviewed catalogue; match the selected version and operating point rather than a universal rating.
Material, colour & supply options
- Choose H/L/HR, nozzle, port, silencer, switch, valve, coil and lead direction only from the selected version matrix.
- The reference tables are not proof of current PneuPart supply, stock or certification. Send the original code or a photo.
Selection & installation
- Generators make vacuum; cups grip the workpiece. Choose them as separate parts of one circuit.
- Send workpiece weight, surface, orientation and cycle time, together with leakage or porosity.
- Compare suction flow, air consumption and vacuum at the stated supply pressure.
- Use a suitable safety margin and monitored holding circuit for lifting; theoretical cup force is not a safe load rating.
Supply options & packaging
PneuPart supports individual items and mixed parts lists. Include the size, colour, packaging, roll length or cut length you need. Current availability, samples and lead time are confirmed in the quotation.
Relevant product, label or series photos can be provided during consultation. A series photo represents only the configurations shown.
Frequently asked questions
Which details should I send?
Send the model or photo, required size, quantity and destination. Include any special pressure, temperature or media requirement.
Are these specifications guaranteed for every configuration?
Typical references for selection, not a test certificate for every configuration. Tell us any special pressure, temperature, medium or certification requirement so customer service can confirm a suitable option.
Can I request another size or packaging?
Yes. Send the size, colour, packaging or length you need. Customer service confirms a suitable option, availability and lead time.
COMPANION PRODUCTS
Products to use together
Build your pneumatic circuit with complementary components. Confirm dimensions and operating conditions before selecting a combination.
Grip the workpiece

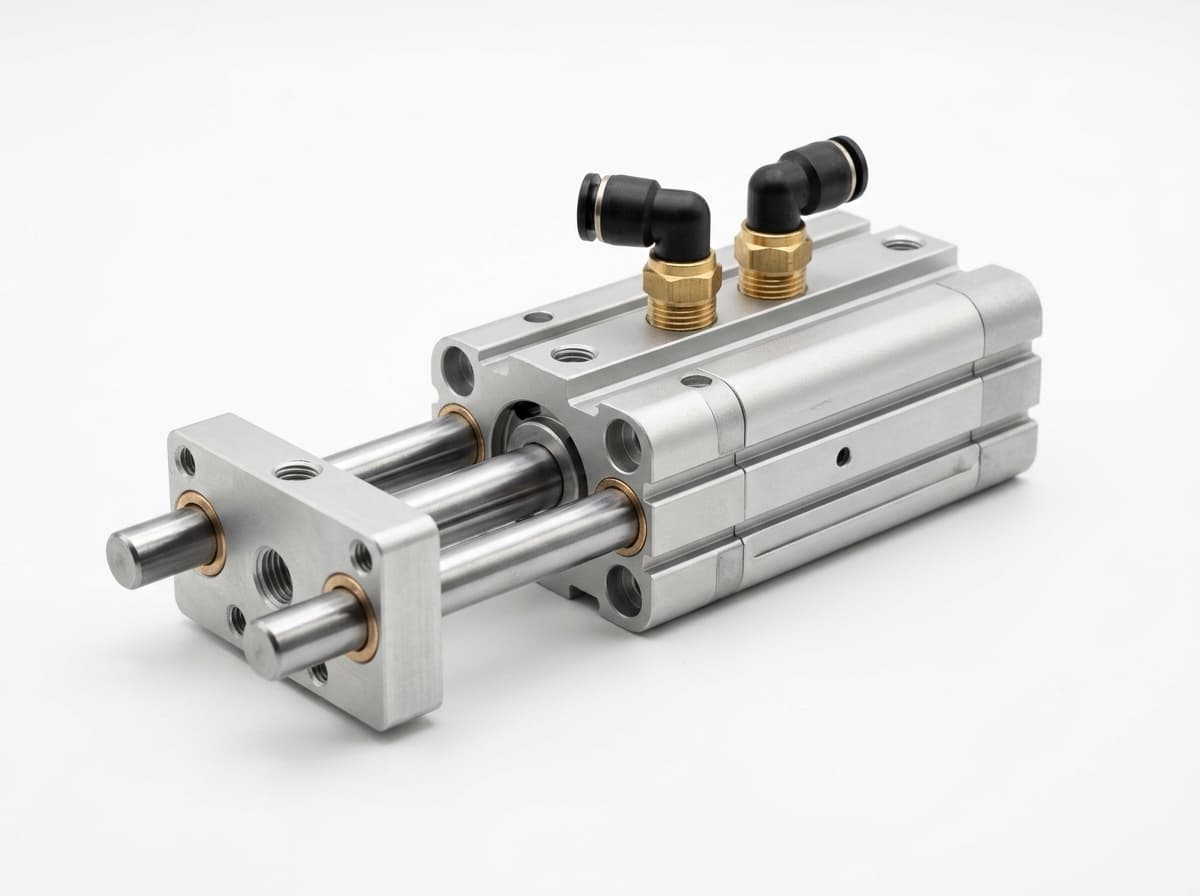

Product-group reference image
