AirTAC 6SV Five-Port Two-Position and Three-Position Solenoid Valves

6SV is a five-port directional solenoid-valve family in 0500 to 400 size, with two-position and three-position configurations. Confirm the complete code, circuit function, centre...

Request type

AirTAC originalModel matchingChina-source alternative

Start RFQ Send photo / label

6SVSolenoid Valves

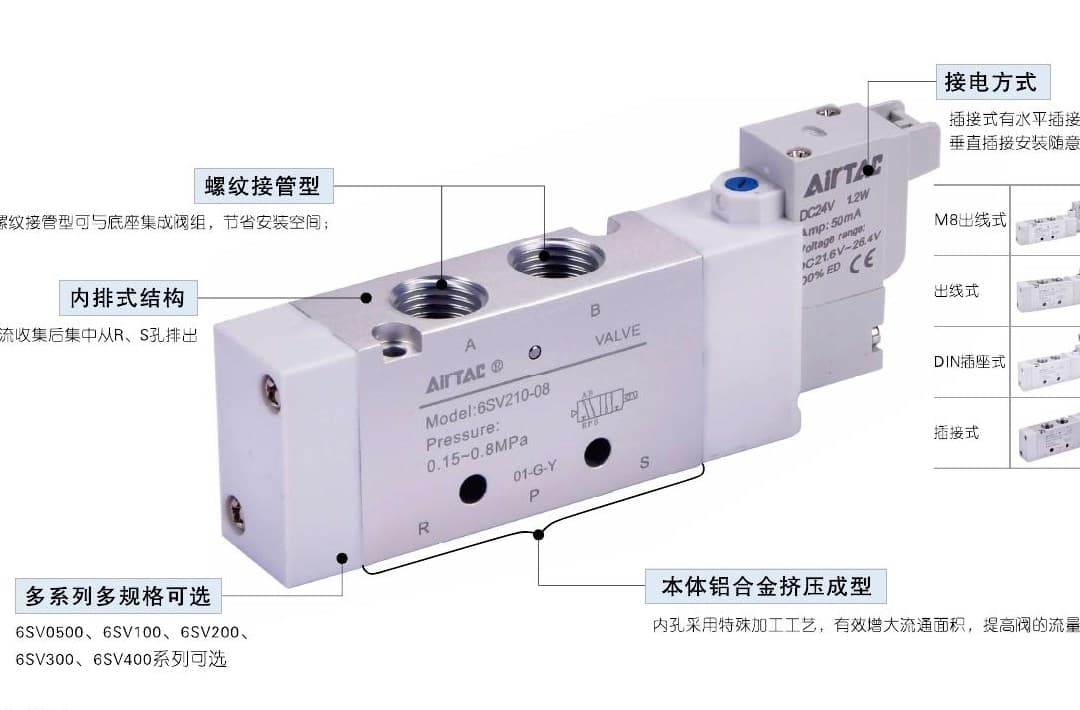

6SV five-port solenoid valve product reference — Verified product-family reference image.

Ordering code matching

Match each code segment

Send a photo if the code is incomplete

Code format

6SV [05/1/2/3/4] [10/20/30C/30E/30P] [M5/06/08/10/15] [voltage] [plug/lead] [PT/G/NPT]Published 6SV code layout

6SV0510-M56SV110-066SV130C-066SV230C-086SV410-15

①Circuit function	②Size / port	③Electrical / thread
10/20 two-position; 30C closed centre, 30E exhaust centre, 30P pressure centre.	0500 to 400 series with published M5, 1/8, 1/4, 3/8 or 1/2 inch port selection.	Match published voltage, plug or lead option, lead length and PT/G/NPT thread.

Read the model code

If the label is incomplete, send the readable parts together with a photo.

6SV 2 30C 08 B

6SVValve family

Published five-port directional solenoid valve.

05 / 1 / 2 / 3 / 4Series size

Published 0500, 100, 200, 300 or 400 series.

10 / 20 / 30C / 30E / 30PFunction / centre

10/20 two-position; 30C closed centre, 30E exhaust centre, 30P pressure centre.

M5 / 06 / 08 / 10 / 15Port

Published port code for the selected size.

A–F / I / D / M / G / TElectrical and thread

Match published voltage, plug/lead, lead length and PT/G/NPT thread fields.

About 6SV

6SV is a five-port directional-valve family. Codes 10 and 20 identify published two-position single- and double-solenoid forms; 30C, 30E and 30P identify published three-position centre conditions. Those circuit choices are material matching information but remain on this one canonical series page.

Product matching reference

Compare the photo, drawing, and measurable details first

Identify from the photo

Full 6SV code or readable valve label
Two-position 10/20 or three-position 30C/30E/30P circuit
0500, 100, 200, 300 or 400 size and installed port
Required voltage, plug/lead style and lead length
PT, G or NPT thread and manifold/base mounting interface

Drawing reference

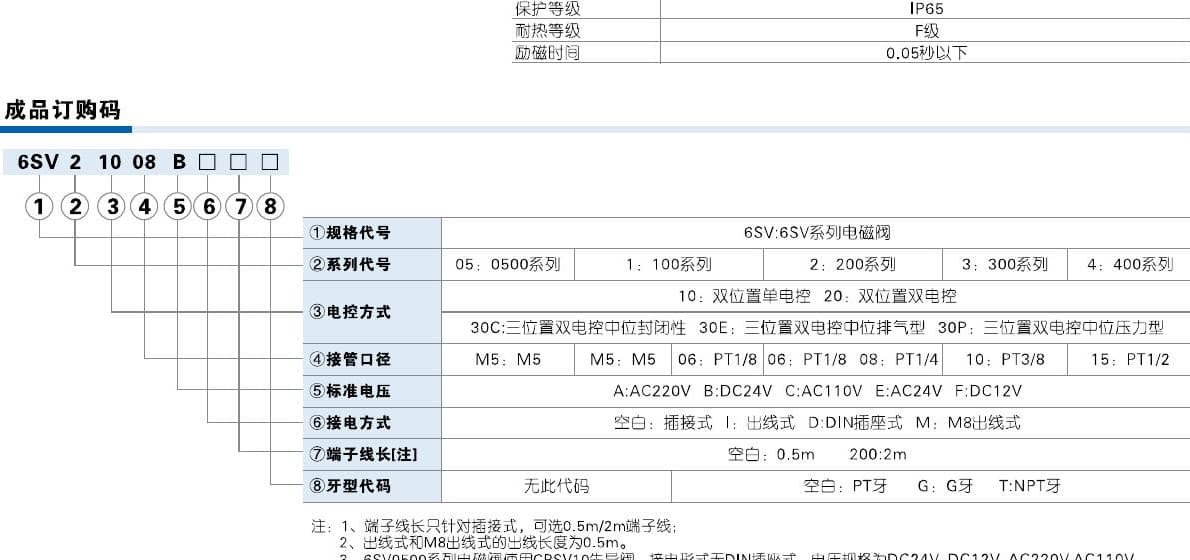

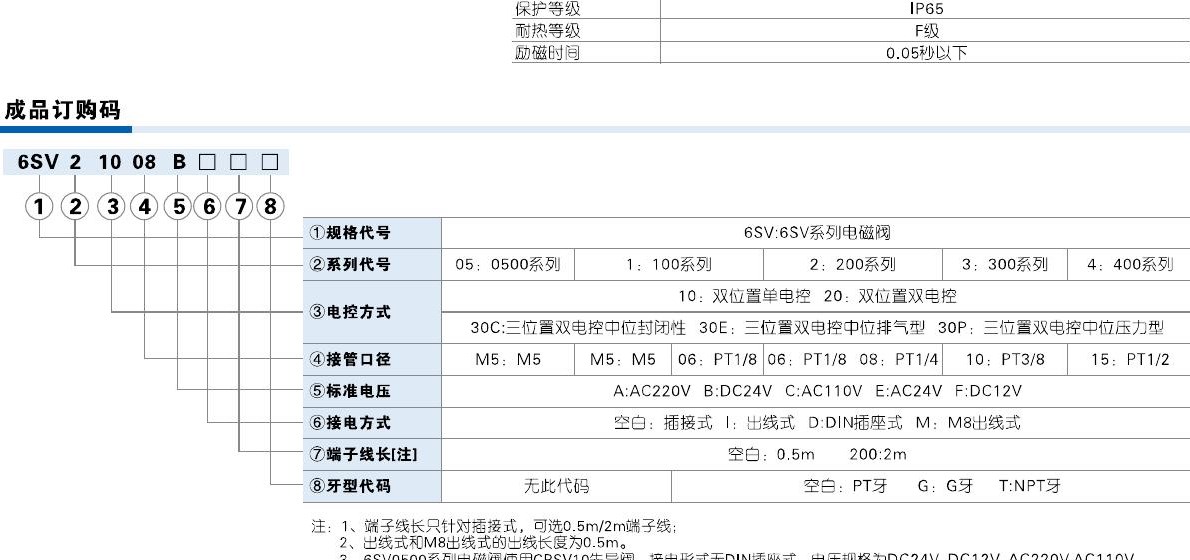

6SV solenoid valve ordering code reference

Open drawing

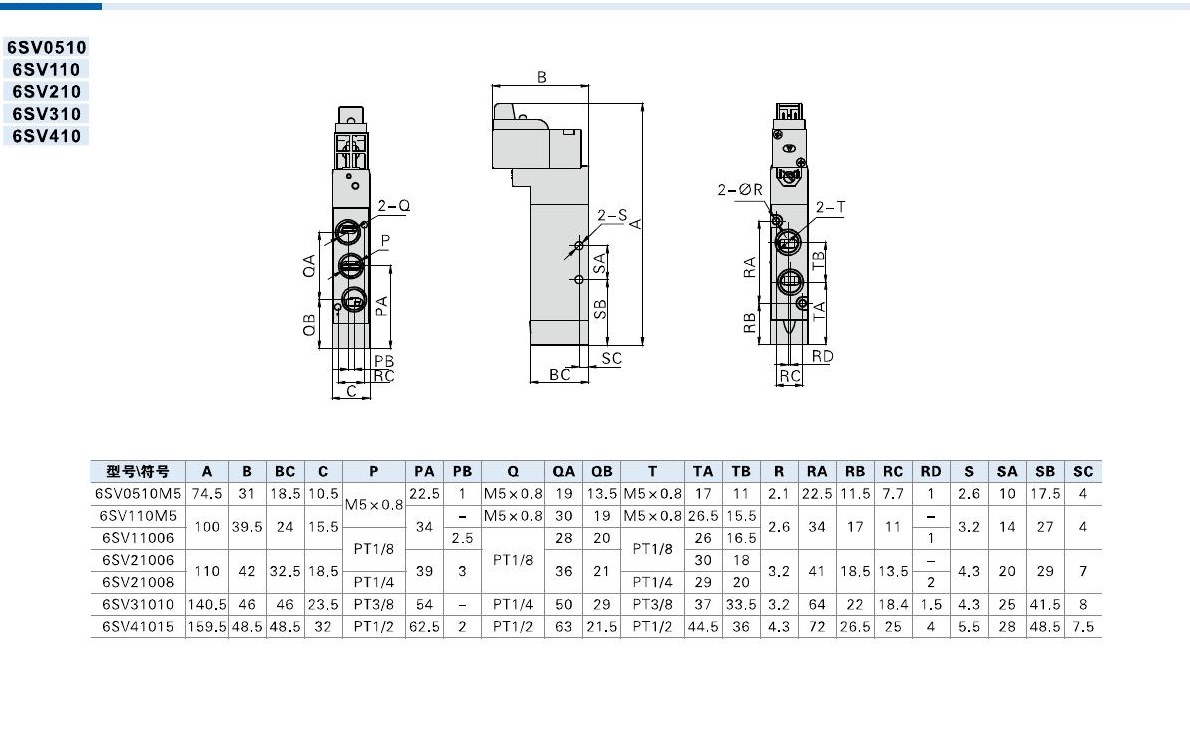

6SV solenoid valve installation drawing reference

Open drawing

Confirm 6SV five-port function and distinguish 10/20 two-position from 30C/30E/30P three-position control
Match 0500/100/200/300/400 size, port, voltage, plug/lead, lead length, thread and installed mounting face

Key details for matching

Model patterns

6SV0510-M5
6SV0530-M5
6SV110-06
6SV130C-06

Reference details

Product type: Five-port two-position and three-position solenoid valve
Published sizes: 0500, 100, 200, 300, 400 series
Published port range: M5, 1/8, 1/4, 3/8, 1/2 inch by model
Published operating pressure: Two-position: 0.2–0.8 MPa; other published valve forms: 0.15–0.8 MPa
Published proof pressure / temperature: 1.2 MPa; -20 to 70 °C
Reference pages: PDF pages 1–4

Matching Questions

How does 6SV differ from 6STV?

6SV is the published five-port family with two-position and three-position circuit options. 6STV is a three-port, two-position family. Match the...

Why must a 30C, 30E or 30P code be retained?

The code specifies the three-position centre condition, which changes the pneumatic circuit state when neither solenoid is energized. It must be...
