ZU-S
High-vacuum member
- Vacuum:
- −88 kPa reference
- Suction flow:
- 7–12 L/min reference
PneuPart · SERIES ZU
ZU inline vacuum generators
Choose the high-vacuum S member or high-flow L member, then confirm nozzle, ports, pressure and application conditions. Historical stock codes do not limit the factory's standard range.
Two functional members, one family
ZU-L
High-flow member
- Vacuum:
- −48 kPa reference
- Suction flow:
- 12–21 L/min reference
Reference values come from a reviewed PZU catalogue basis. S and L use different operating goals; do not combine their curves or conditions.
Confirm your model or requirements
These fields describe a technical request and do not generate a validated SKU. Suffixes such as LA or SA remain subject to factory confirmation.
Request model & availability confirmationReference limits
- The reviewed reference lists 4.5 bar standard supply, 7 bar maximum and 6 mm tube connections.
- Operating temperature range (5–60 °C standard) and medium compatibility are confirmed for the selected body and seal material.
- Suction flow and supply pressure characteristics are matched against your target evacuation cycle upon technical enquiry.
Installation & matching
This is a three-port inline ejector concept with supply, vacuum and exhaust directions. Request the selected member's drawing and confirm the tube OD, envelope and exhaust arrangement before installation.
PneuPart · Technical documents
Drawing and configuration

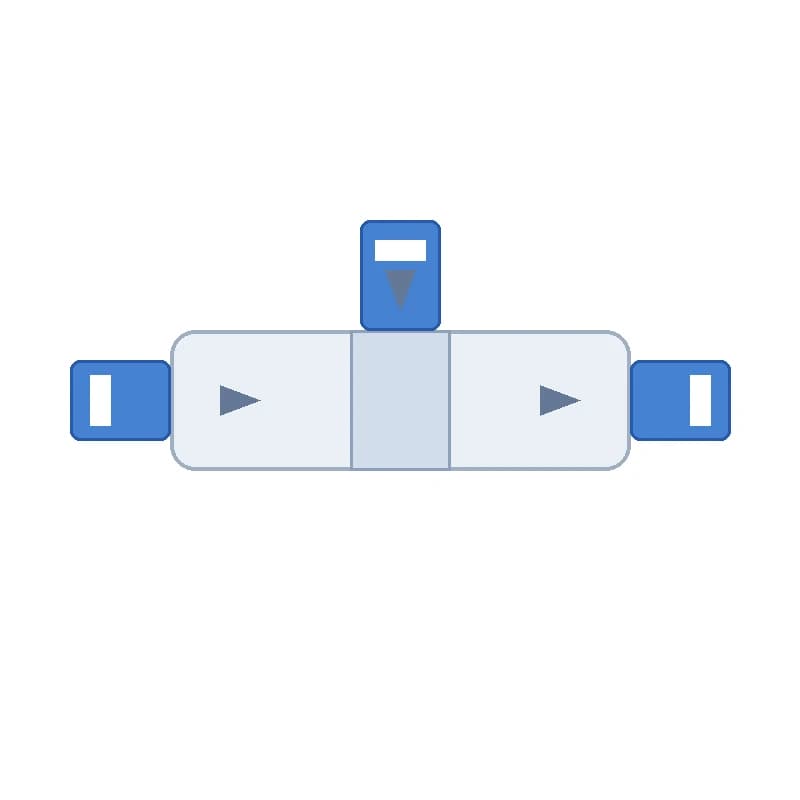

The form schematic shows the selection features. Dimensional, port and installation drawings are supplied against the confirmed delivery version.
Shape and connection
ShownShown on this page; not to scale.
Dimensional drawing
By enquiryRequest for the confirmed size and port variant.
Selection / ordering drawing
By enquiryConfirm code, options and supply scope together.
Send the model code, a photo or existing mounting dimensions together; a complete model is not required to start confirmation.
Request drawing
